Transparent Medical Instrument PN-2055 (1*2) / Two-plates mold / Cold runner No.21061
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 1 Slide | Size | 300.000 X 450.000 X 356.000 |
|---|---|---|---|
| IMM Tonnage | 130T | Mold Weight | 310kg |
| Standard Mold Base P/N | CI2545.609080. | Gate | Cashew Gate |
| Type | Two-plates Mold | Injection/runner Type | Hot Runner |
| Part Material | PC |
Product Description
Transparent Medical Instrument PN-2055 (1*2)
No.21061
|

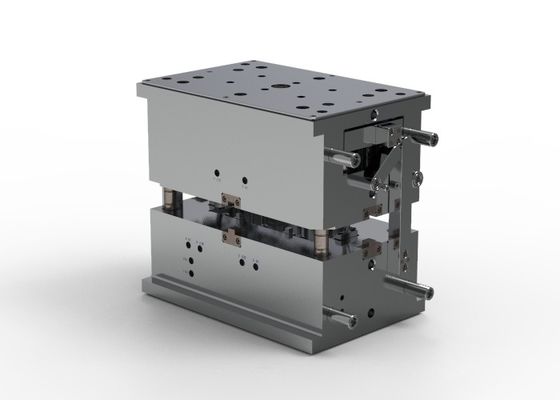

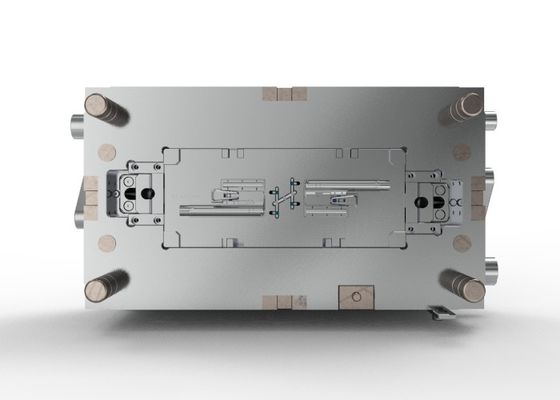

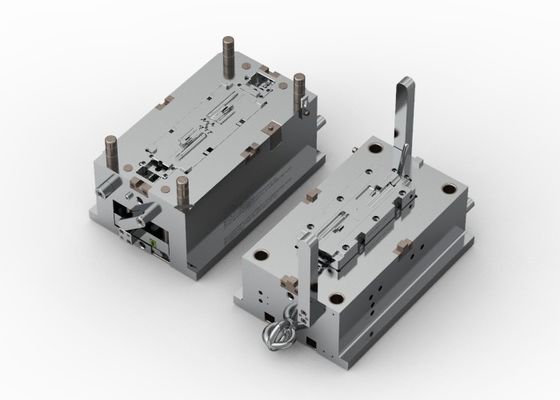

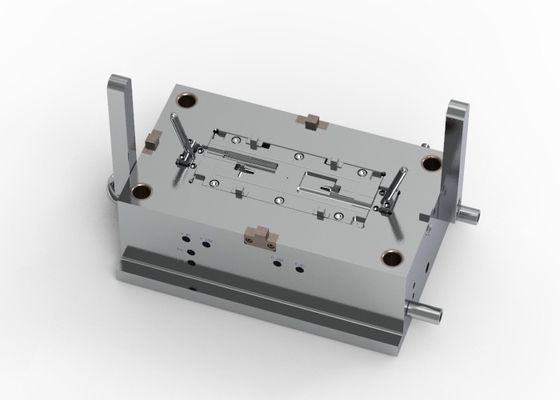

Standard mold base CI2545.609080, mold size 300x450x356mm, LKM standard, cashew gate, and two-plates mold with simple structure, low cost and easy to fill. |
|||||||
| Mold net weight: 310 kg IMM tonnage: 130T |
|||||||
|
Partial surfaces polished to (1) MT11010 (2) SPI-A2 (3) SPI-B2 to improve the mold smoothness, anti-corrosion and anti-wearing performance, facilitate the subsequent injection molding, for easy demolding, and short cycle time. |
|||||||
...
| Injection/runner type: Hot runner Features: 1 slide |
|||||||
| Steel of cavity and core: Harden (1*2/S136) |
Improve mold hardness and anti-corrosion performance, thereby reducing mold maintenance costs and maintaining continuous mass production |
||||||

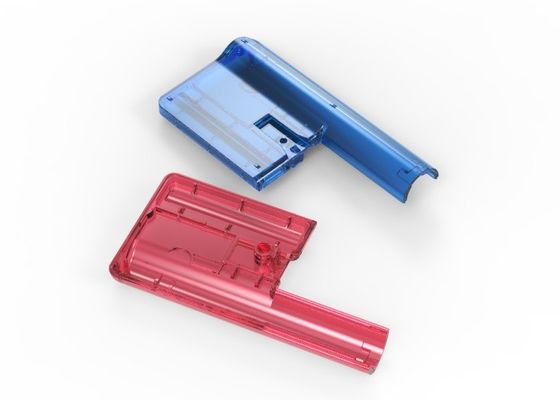

| Part properties <Part material>: PC <Part weight>: 7.3g <Part size>: 43.75 X 85.49 X 14.88mm |
|||||||

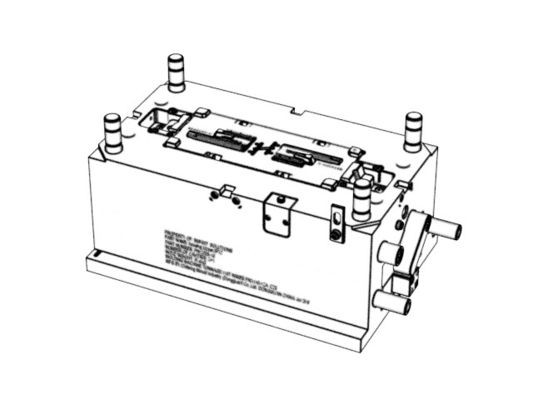

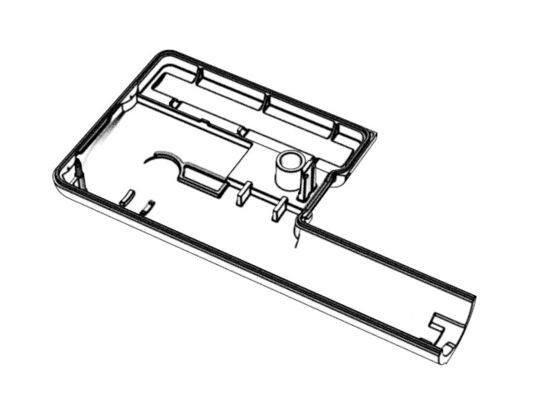

Display diagram
