Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X300.000 X 271.000 | IMM Tonnage | 100 T |
|---|---|---|---|
| Mold Weight | 148 Kg | Tool Life | 500000 Shots |
| Part Material | PC | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Type | Two-plates Mold |
| Steel Of Cavity And Core | Harden (1*4/S136) |
Product Description

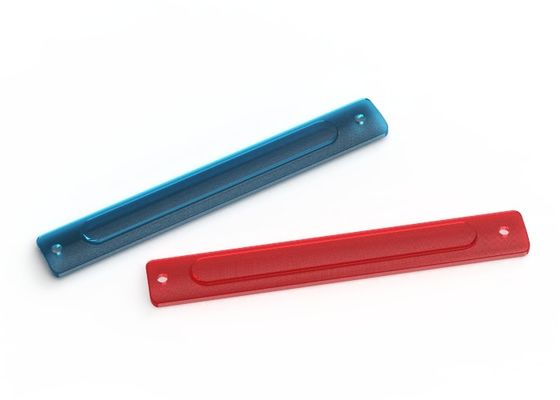

Transparent Medical
Instrument PN-1809 (1*4)
No.21064
| Mold size |
LKM standard P/N: CI25 30.50.80.80 |
|||||
| Length | Width | Height | ||||
| 300 | 300 | 271 | ||||
| Surface finish: SPI-A2 Gate: side gate Steel of cavity and core: harden with 1*4/S136 Type: Two-plates mold, easy degating, low cost IMM tonnage: 100T |
||||||
|
The mold has stable molding quality, uniform mold wall, high glossiness, good balance of cavity pressure, long tool life for mass production; molded parts have uniform thickness w/o flow mark. |
||||||
| Part material | Tool life | Injection/runner type: cold runner | ||
| PC | 500k shots | |||
| Part weight/size | |||

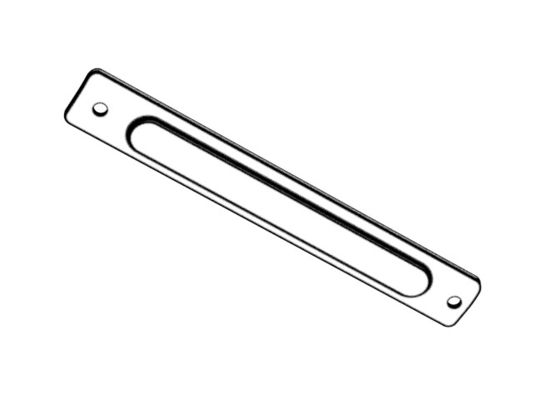

| 0.6g / 7.65 X 57.56 X 2.87mm |

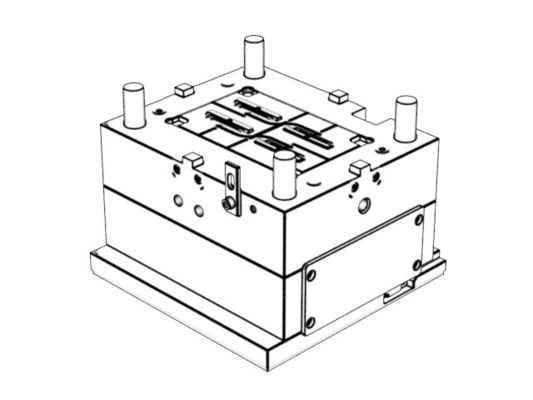

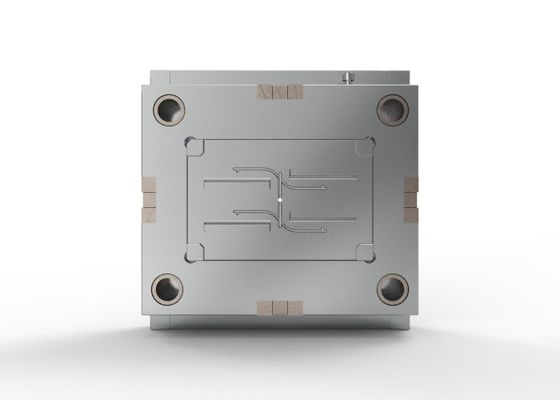

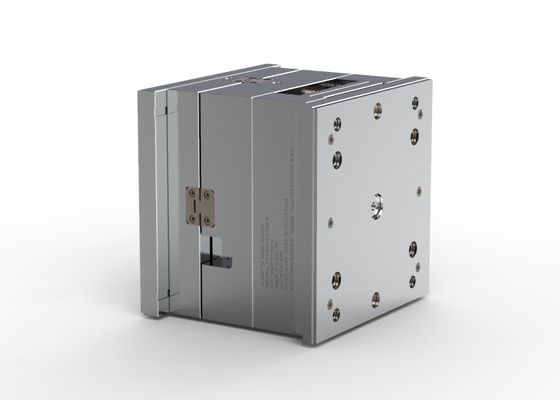

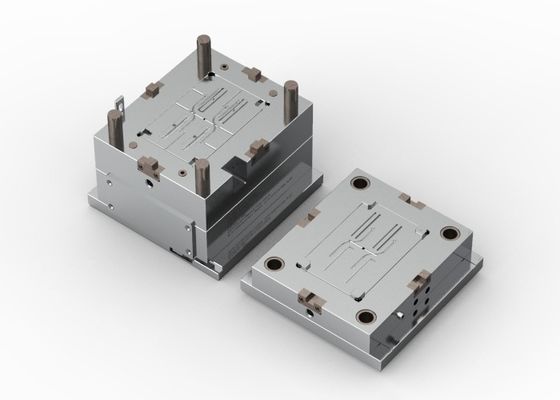

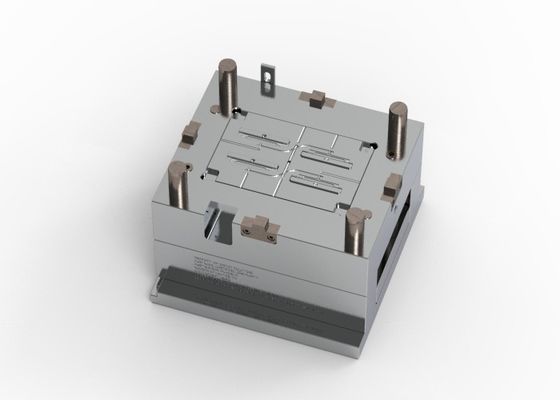

Display diagram
