OEM / ODM Consumer Electronics Molds / Headset Charging Box Light Guide (1*16) No.24204
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone Charging Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 250 X 251 | IMM Tonnage | 80 T |
|---|---|---|---|
| Mold Weight | 93KG | Part Material | Translucent PC |
| Standard | LKM | Tool Life | 500k Shots |
| Runner Type | Cold Runner | Mold Type | Consumer Electronics Molds |
| High Light | 500k Shots Clear Plastic Injection Molding,LKM Clear Plastic Injection Molding,80 T two plate injection mould |
||
Product Description

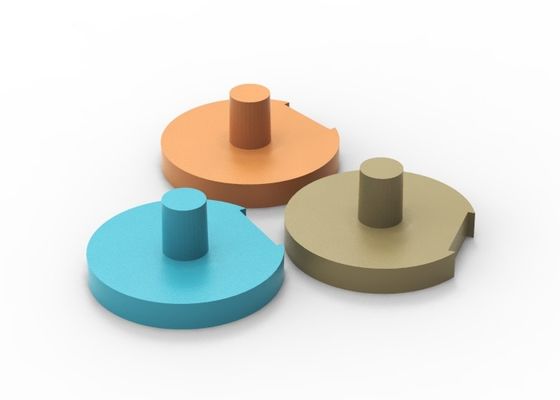

Earphone Charging
Box Light Guide (1*16)
No.24204
| Injection/runner type | Cold runner |
| Part material | Translucent PC |
| Standard | LKM |
| Tool life | 500k shots |
The mold net weight is 93kg, and fit 80T machine; the part size is (L)9.6*(W)8.6*(H)5.2mm
and the part weight is 0.2g

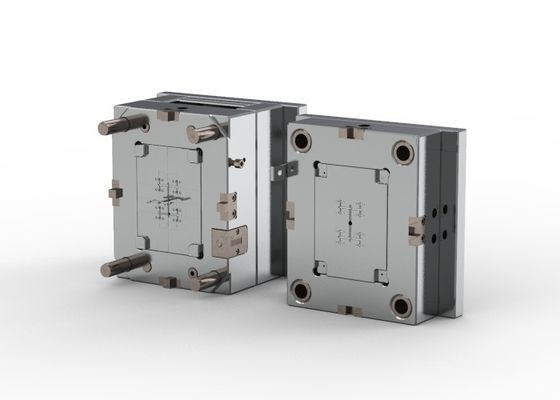

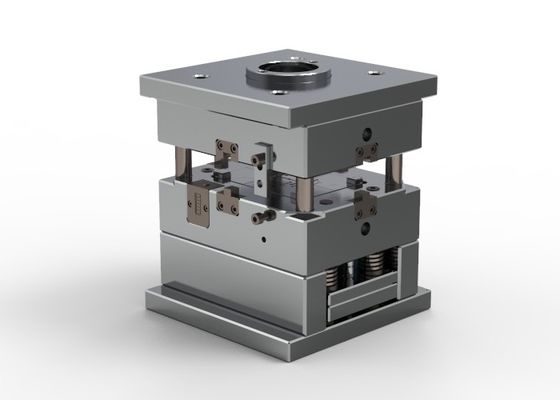

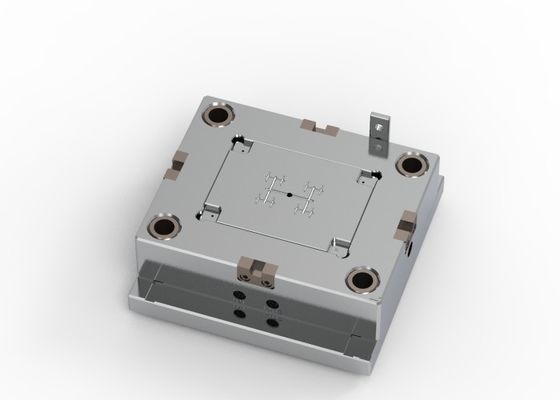

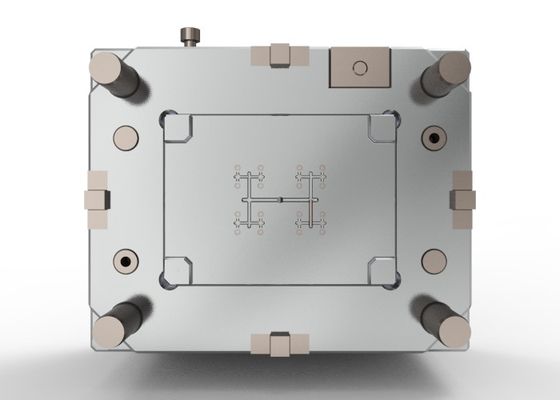

Mold size: 250 X 250 X 251mm, standard mold base, side gate; the mold is made of steel with
high purity, and the cavity and core surface has smooth surface with no pits; the A surface polished
to SPI-A1, the inner surface EDM with VDI21# (Makino); harden the cavity and the core with
1*16/S136 to have higher hardness and anti-wearing performance, with stable wall thickness
and stable internal pressure
Features: Cavity ejection pin

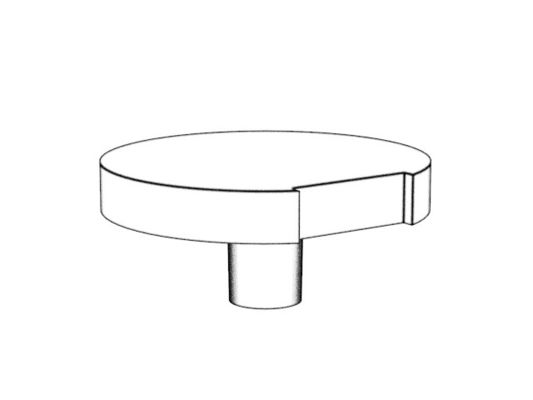

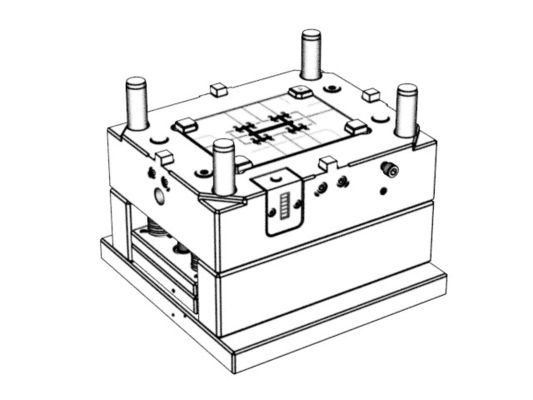

Display diagram
