Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 600 X 416 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 635KG | Gate | Pin Point Gate |
| Type | Three-plates Mold | Surface Finish | SPI-A1 |
| Standard | LKM | Slides | 4 |
| High Light | 500k Shots 3 Plate Mold,LKM 3 Plate Mold,Cold Runner 3 Plate Mold |
||
Product Description

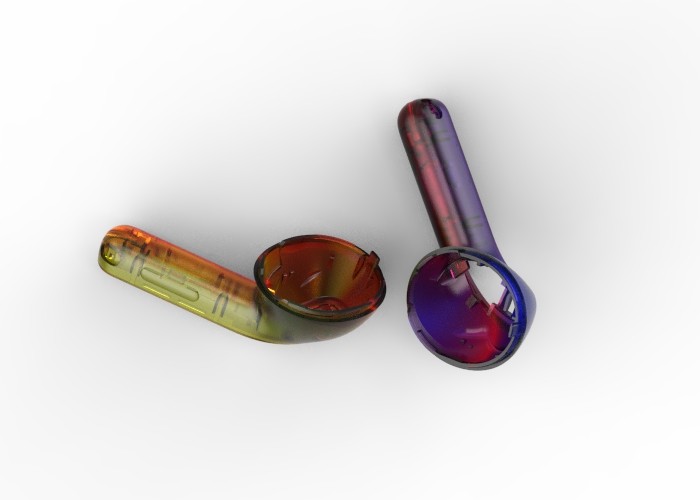

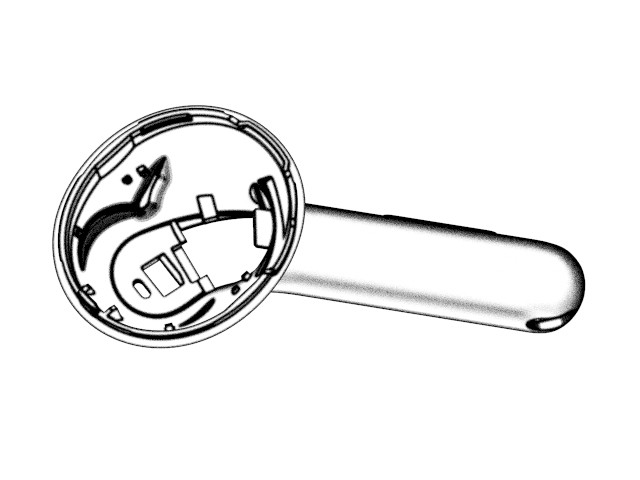

Transparent earphone left middle shell
No.24207
|
Standard mold base P/N FCI3560 A80-B120-C100 |
Net weight | |
| 635kg | ||
| Length | 400 | IMM tonnage |
| Width | 600 | |
| Height | 416 |
100T |
| Part material | Part size | Part weight |
| PC+ABS | 16.82 X 35.52 X 11.81mm | 0.7g |
| Tool life |
| 500K shots |
| Gate | Type | Surface finish | Standard | Cavity | Core |
| Pin point gate | Three-plates mold | A surface polished to SPI-A1 | LKM | Harden (1*2/S136) | |
Injection/Runner Type: Cold runner
Features: 4 slides

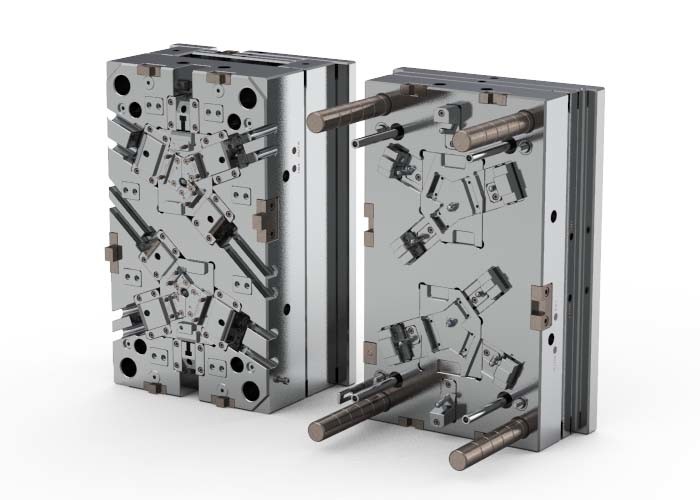

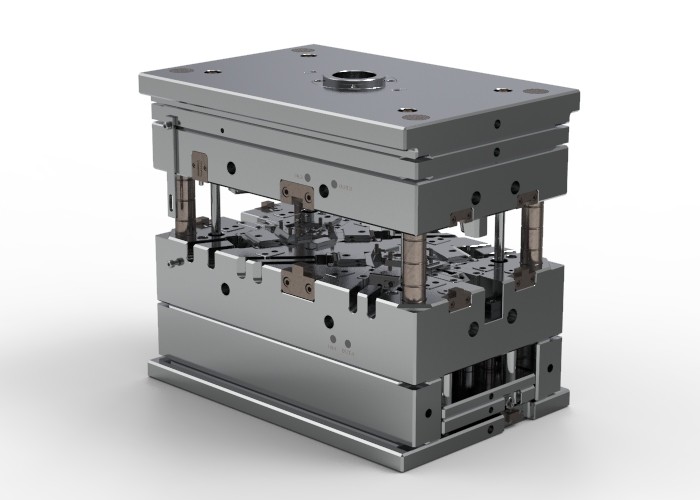

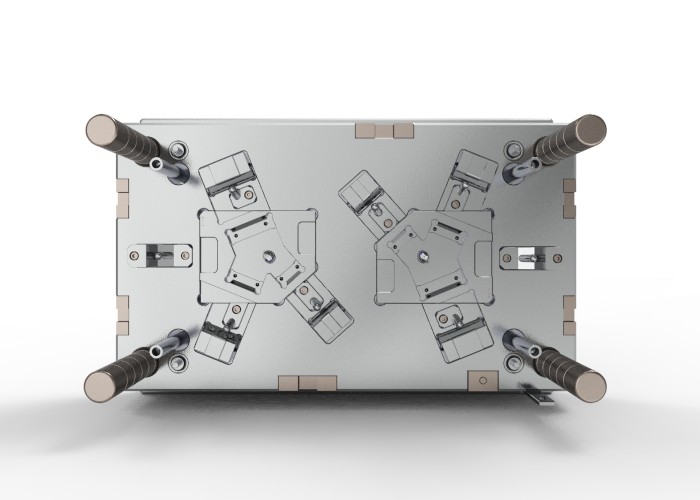

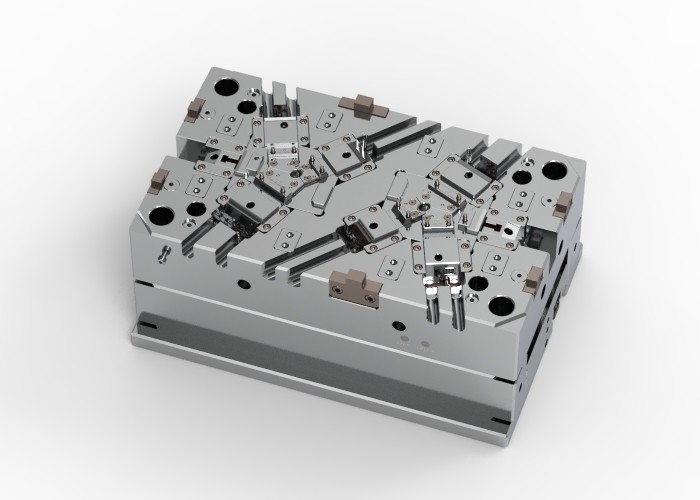

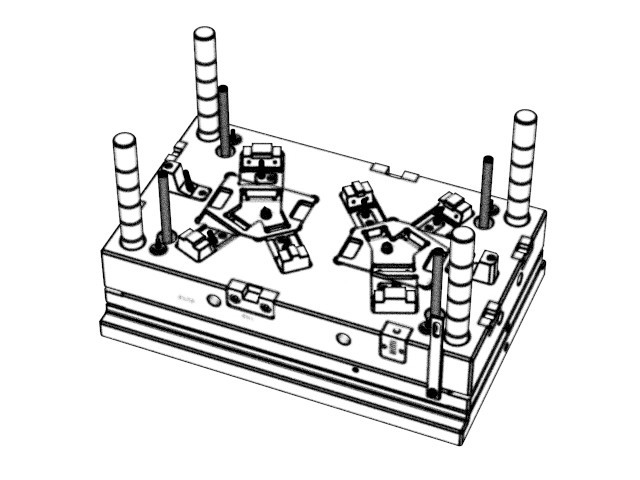

Display diagram
