OEM / ODM : Plastic Injection Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24209
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 50 X 250 X 241 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 79KG | Standard Mold Base P/N | CI2025.507070. |
| Gate | Side Gate | Tool Life | 500k Shots |
| Type | Two-plates Mold | Part Material | PC+ABS |
| Standard | LKM | Use | Plastic Manufacturing |
| Runner System | Hot Sprue / Cold Runner | ||
| High Light | LKM ABS Plastic Injection Molding,500k Shots ABS Plastic Injection Molding,Cold Runner ABS Injection Mold |
||
Product Description

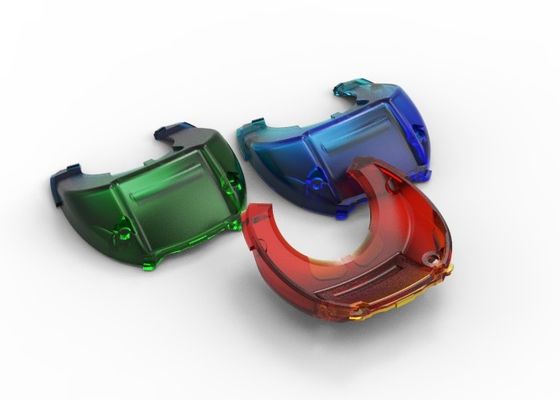

Transparent earphone
left battery bracket (1*8)
No.24209
| Size | Length | Width | Height | Net weight |
| 250 | 250 | 241 | 79kg |

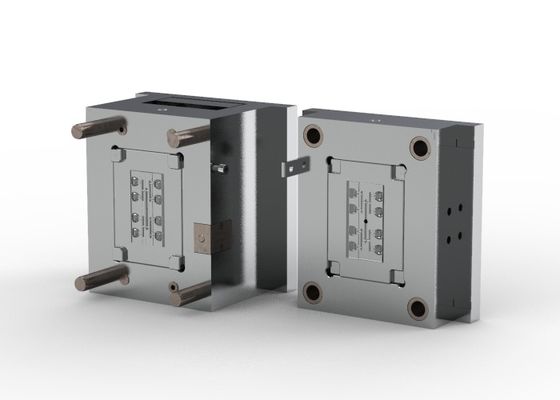

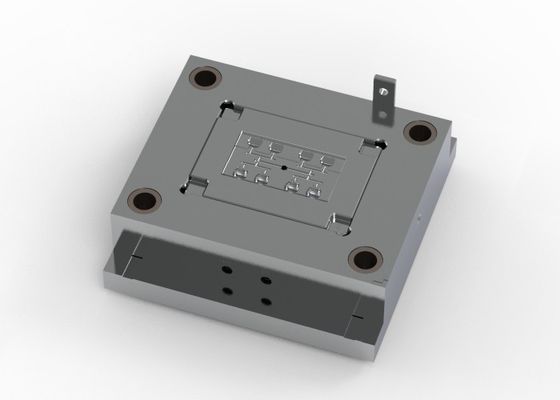

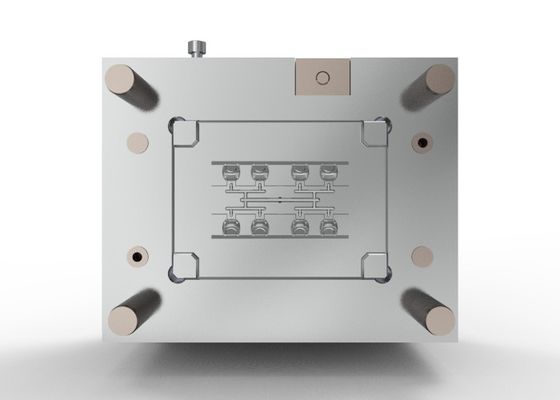

This mold is designed with standard mold base CI2025.507070, two-plates mold structure,
cold runner, and side gate; the mold surface is polished to be smoother w/o cracks and roughness;
harden the cavity and core with using S136 to have higher hardness and anti-wearing performance;
LKM standard, fit 100T machine
The mold is designed by Chitwing team with scientific consideration and precision, with minimized
cold slug, lower cost, shorter cycle time and aesthetic part appearance
| Part material | |
| PC | ABS |
| Part size | |
| 11.68X13.34X4.07mm | |
| Part weight | |
| 0.1g | |

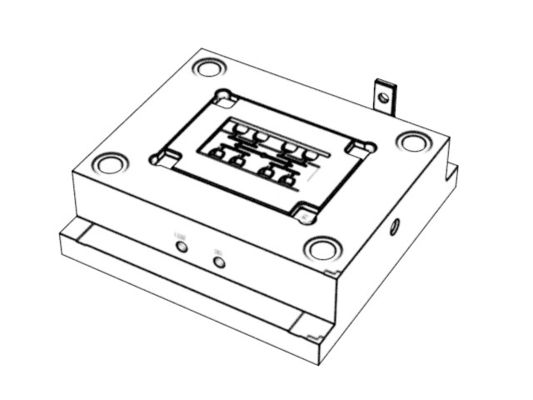

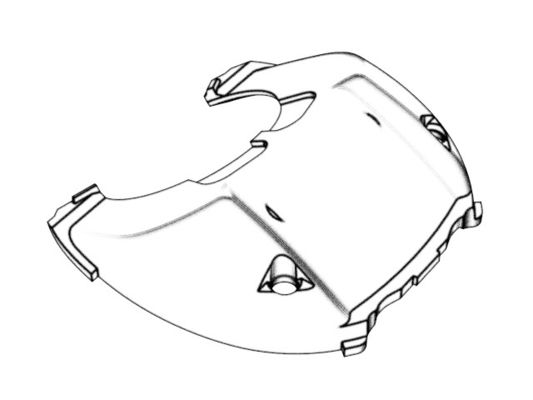

Display diagram
