Product Details
Gate Side Gates Size 250 X 250 X 241
IMM Tonnage 100T Mold Weight 92KG
Standard Mold Base P/N CI2020.507060. Type Two-plates Mold
Injection Runner System Cold Runner Runner Runner System Cold Runner
Steel Of Cavity Harden With 1*8/S136 Steel Of Core Harden With 1*8/S136
Forming Method Encapsulation Molding Hardness HB 250
High Light

Earphone Precision Injection Molding

,

Precision Injection Molding Two Plate

,

LKM Mold
Leave a Message
Product Description

Inner bracket of left rear

cover of transparent earphone (1*8)

No.24213



Injection/Runner Type: Hot Sprue Cold Runner

Gate: side gate

Type: Two-plates mold



  Mold
  Length   250   Net weight
  Width   250   92kg
  Height   241

 Standard mold base P/N: CI2020.507060.

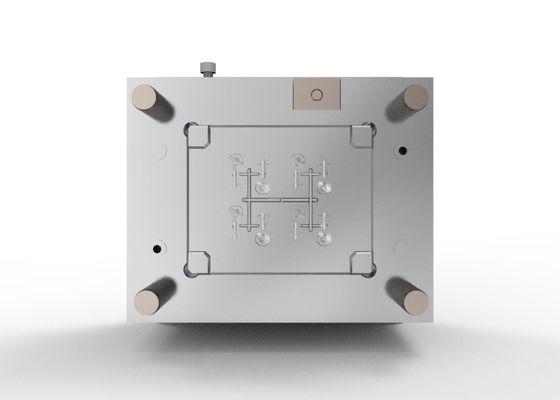

OEM / ODM : custom molding / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 0



  Surface finish
  Partial surface EDM with VDI24#



  Steel of cavity   Steel of core
  Harden with 1*8/S136   Harden with 1*8/S136

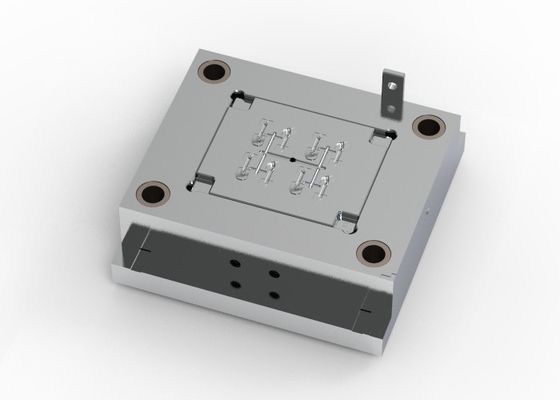

OEM / ODM : custom molding / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 1



  Part size
  5.99X2.7X27.25mm
  Part weight
  0.11g
  IMM Tonnage
  100T

☆ Tool life: 500k shots

☆ Standard: LKM

☆ Brand: Chitwing

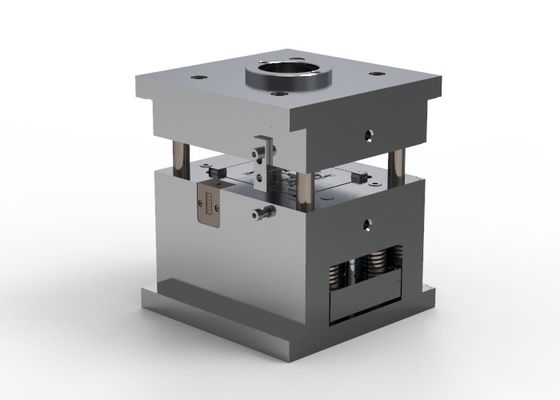

OEM / ODM : custom molding / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 2

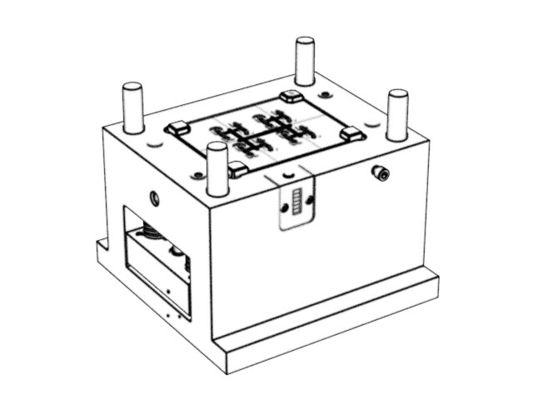

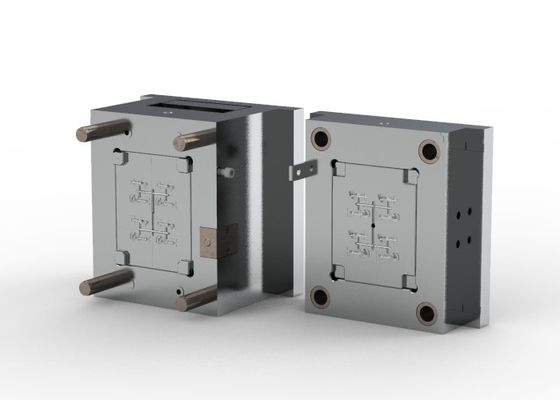

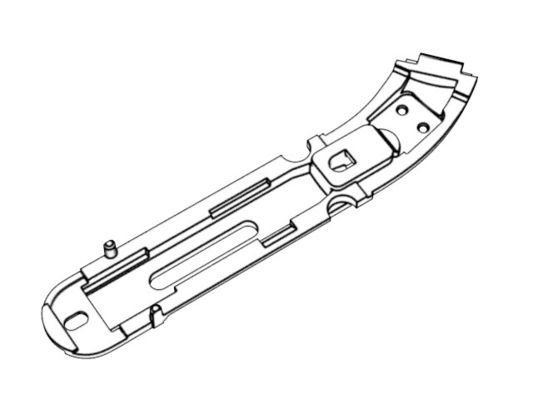

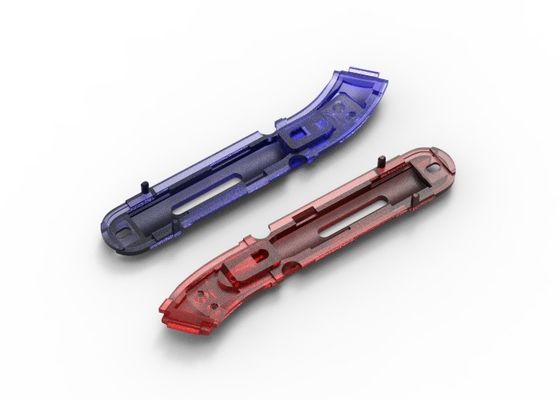

Display diagram



OEM / ODM : custom molding / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 3OEM / ODM : custom molding / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 4OEM / ODM : custom molding / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 5OEM / ODM : custom molding / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 6
