Transparent POA Rear Pad (1*1) / Cold runner / Two-plates mold No.22730
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 456 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 520kg | Gate | Cashew Gate |
| Design Software | 3D:UG 4.0, 2D:CAD | Mould Base | LKM |
| Runner | Cold Runner | Mould Life | ≥500000 Shots |
| High Light | 110T Single Cavity Injection Mold,POA Rear Pad Single Cavity Injection Mold,500000 shots Cold Runner Injection Mold |
||
Product Description
Transparent POA Rear Pad (1*1)
No.22730
| Length | Width | Height |
| 400 | 450 |
456 |
This is a two-plates mold with cold runner, standard mold base, good machining, scientific design
and minimized heat loss
| Part material | TPU A80 | Gate | Cashew gate |
| Tool life | 500k shots | Surface finish | A surface EDM to VDI27# |
| Standard | LKM | Steel of cavity and core | Harden (1*1/S136) |
Mold features: 1 slide, no particles on the surface, mold good fitted; the runner can be reground and
recycled, thus reducing the waste of plastic. The mold is designed with standard mold base
CI3545.A = 70 B = 140 C = 120; the net weight is 520kg, fit 110T machine; the molded part size is
about 158.75X127.54X50.81mm, and the part weight is 58g.

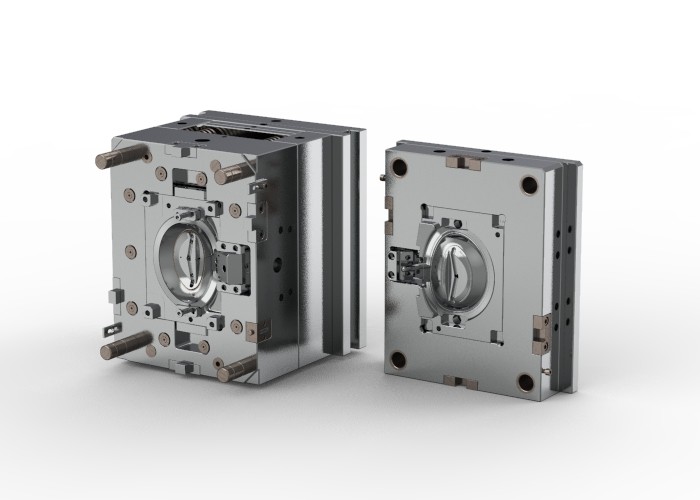

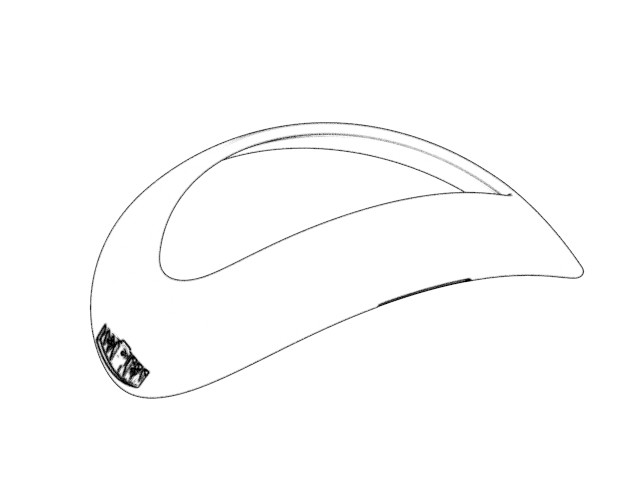

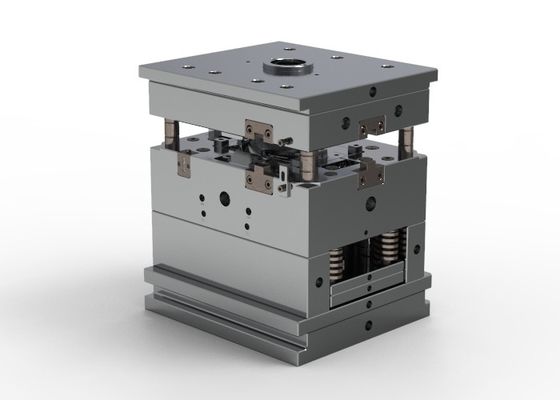

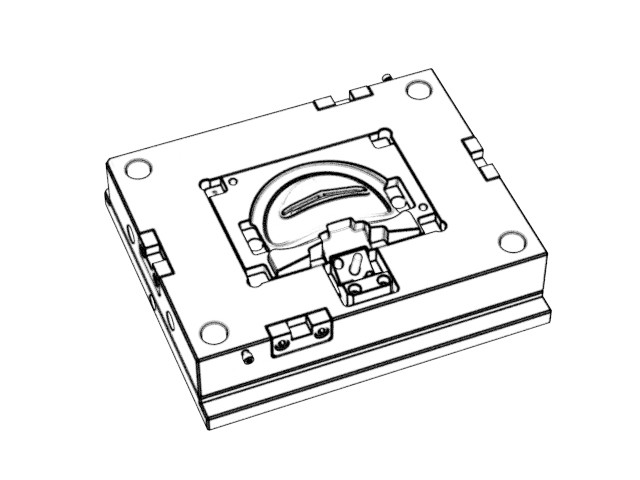

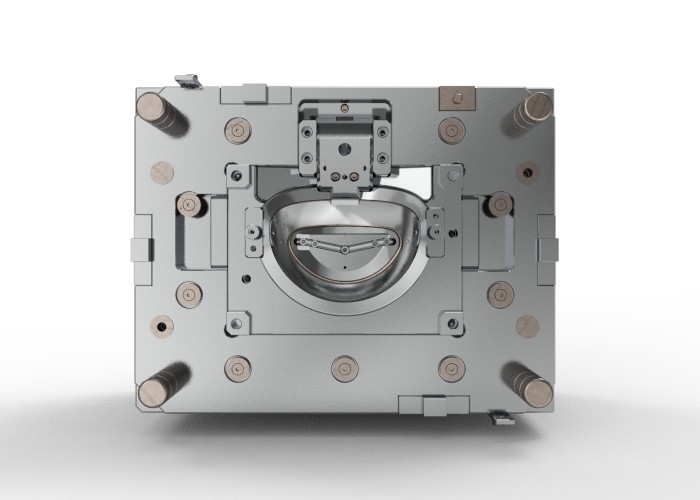

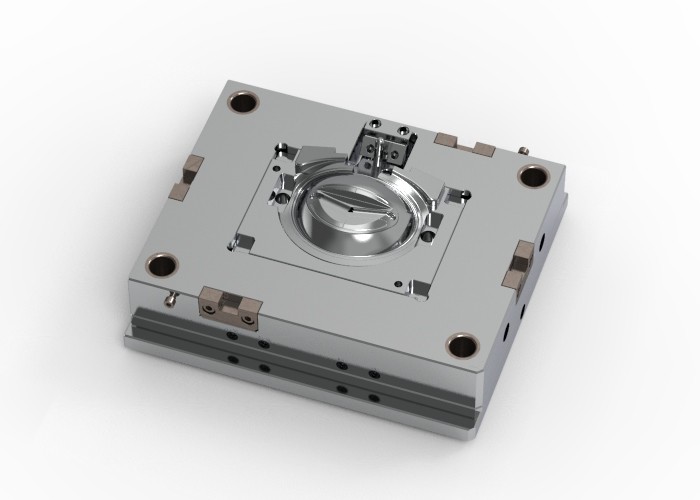

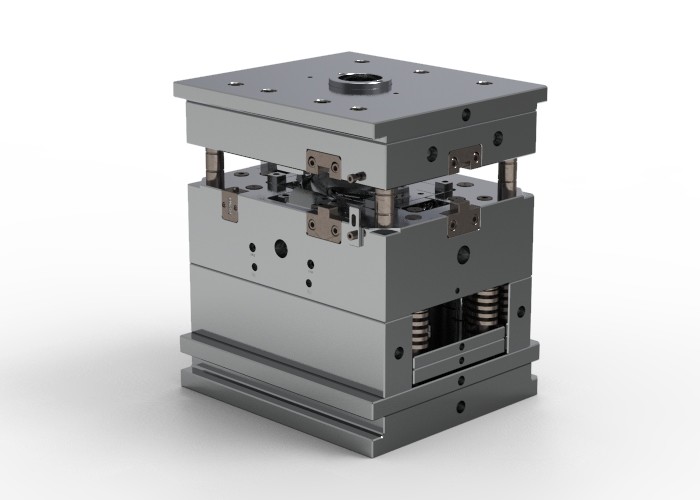

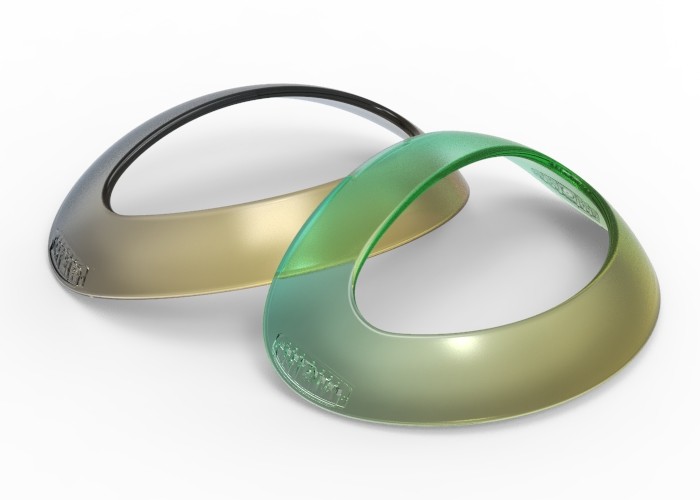

Display diagram
