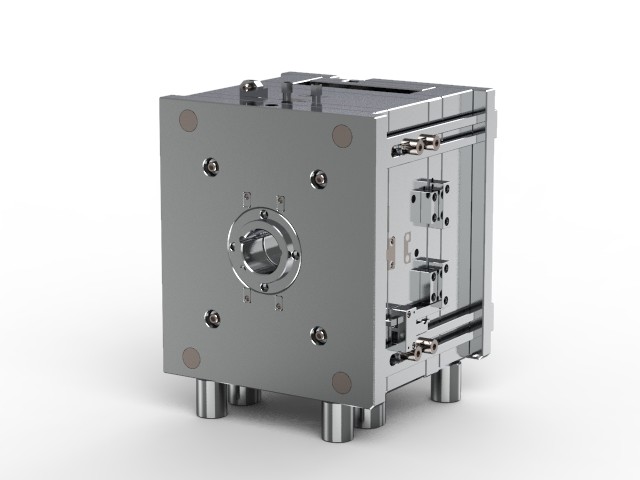

Middle frame (1*1)/ Cold runner / Three-plates mold No.22676
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 450 X 446 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 524.12kg | Design Software | 3D:UG 4.0/2D:CAD |
| Mould Material | Harden（1*4/S136） | Mould Base | LKM |
| Runner | Cold Runner | Mould Life | ≥500000 Shots |
| High Light | Cold Runner 3 Plate Injection Mold Design,Harden 3 Plate Injection Mold Design |
||
Product Description

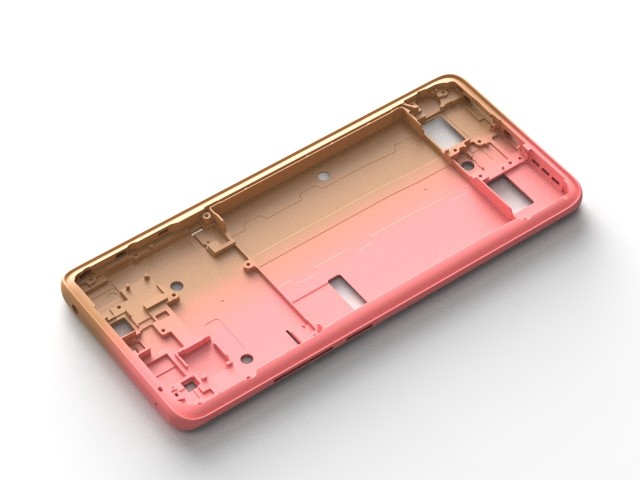

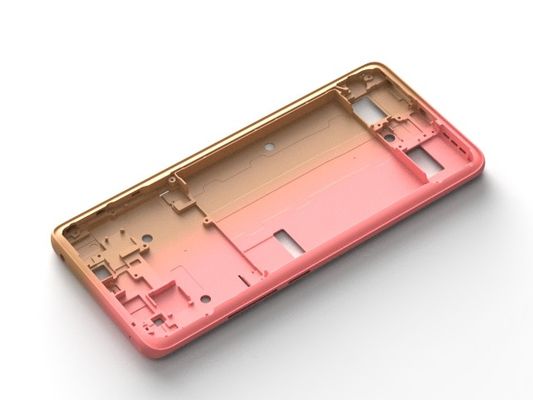

Middle frame (1*1)
No.22676
| Size (mm) | Gate | Pin point gate | Three-plates mold | Slide | ||
| L | 400 | Tool life | 6 | |||
| W | 450 | 500k shots | Cold runner | Lifter | ||
| H | 446 | 16 | ||||
| Mold weight | 524.12kg | IMM tonnage | 140T |
| Part weight | 5.6g |
Each cavity has 2 core slides, 1 in-core slide, 8 lifters; the part material is PC+10%GF; mold
surface polished; harden the cavity and core with 1*1/S136 to improve anti-wearing and
anti-corrosion performance; three-plates mold with smooth part surface, self-degating and
minimized gate marks

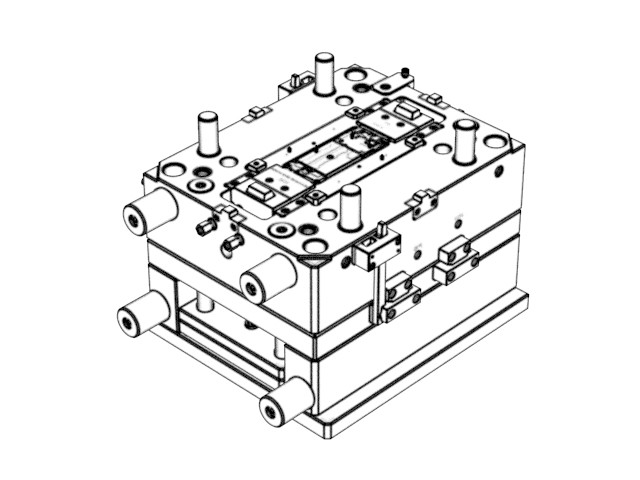

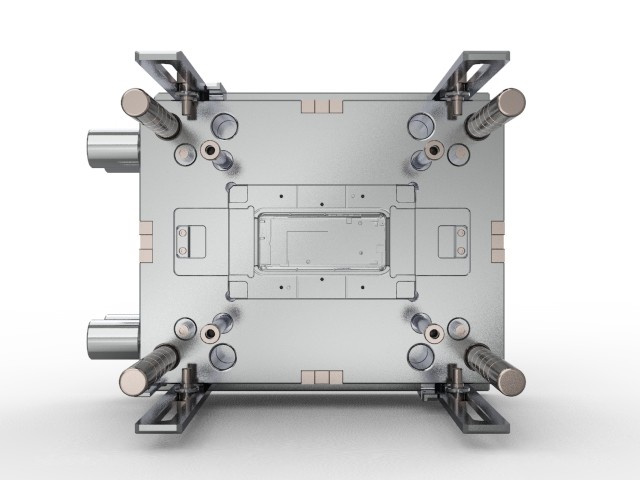

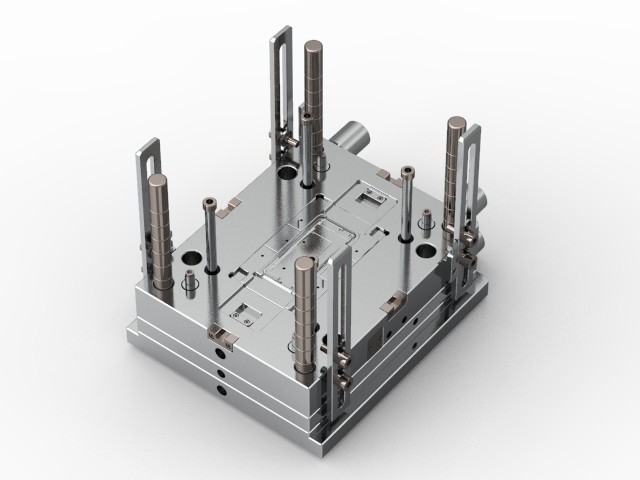

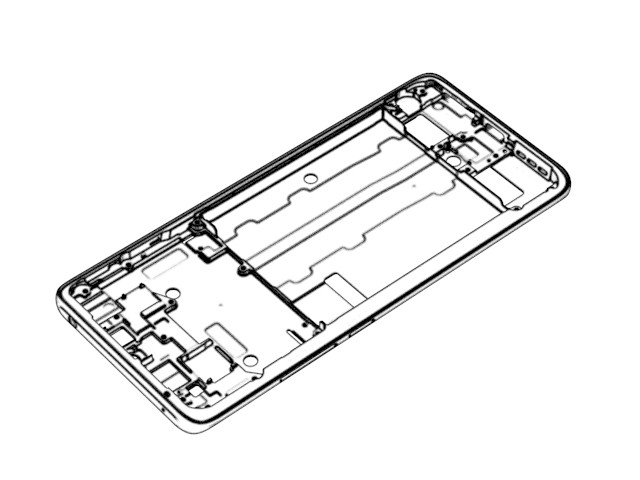

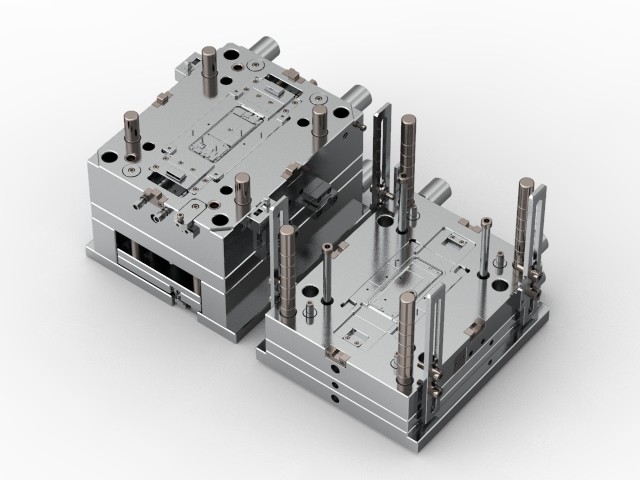

Display diagram
