Transparent middle frame (1*1)/ Cold runner / Three-plates mold No.22676
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 450.000 X 446.000 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 524.12kg | Slide | 6 |
| Lifter | 16 | Gate | Pin Point Gate |
| Type | Three-plates Mold | Injection/runner Type | Cold Runner |
| High Light | Middle Frame Single Cavity Injection Mold,140T Single Cavity Injection Mold,Cold runner three plate injection mould |
||
Product Description

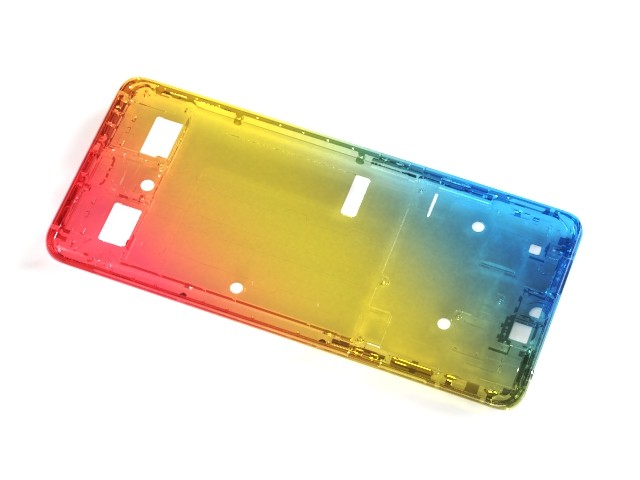

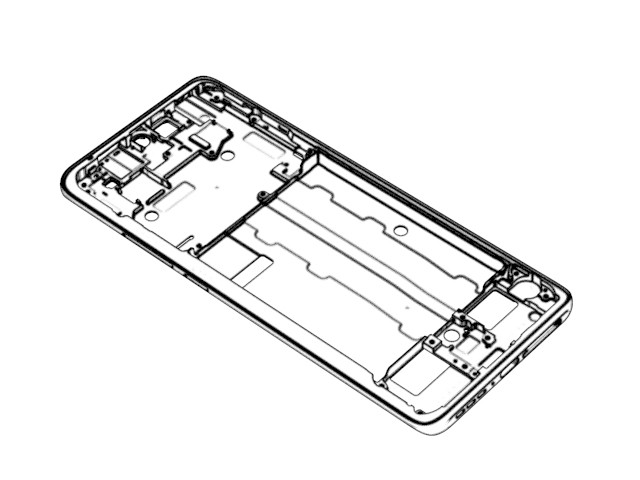

Transparent middle frame (1*1)
No.22676
|
||||||||||||||||
| This is a three-plates mold with pin point gate, self-degating, minimized fate marks, tool life > 500k shots; it uses high quality LMK mold base; harden the cavity and core to have excellent anti-corrosion, anti-strain and anti-wearing performance; no special protection is required for use or storage in humid environment Mold net weight is 524.12 kg; each cavity has 2 core slides, 1 in-core slide, 8 lifters, a total of 6 slides and 16 lifters. | ||
| Part Parameters | |||
| ① Size | 72.88*158.9*8.13mm | ||
| ② Weight | 5.6g | ||
| ③ Material | PC+10%GF | ||

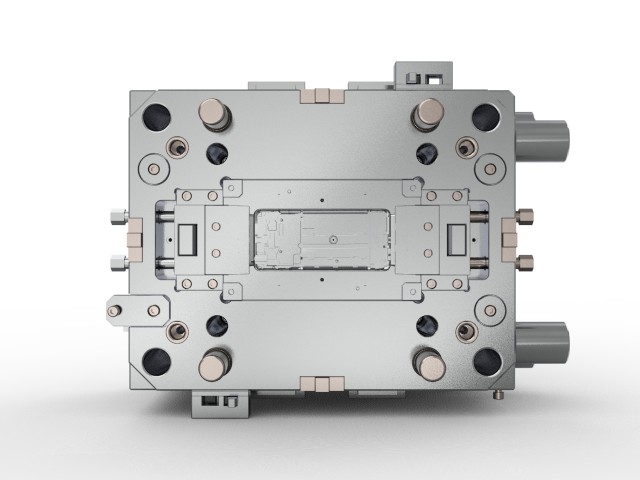

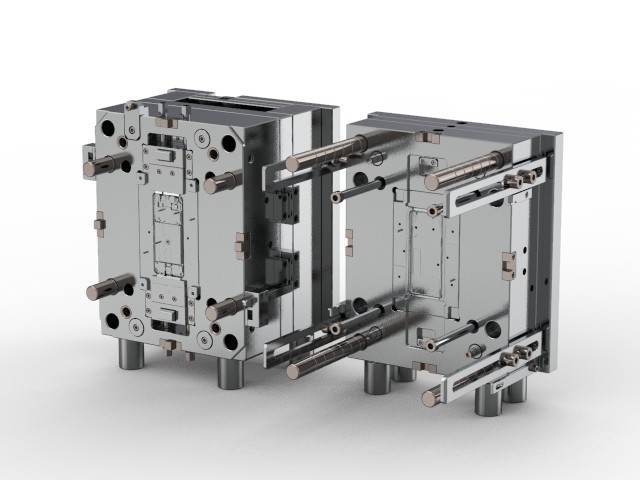

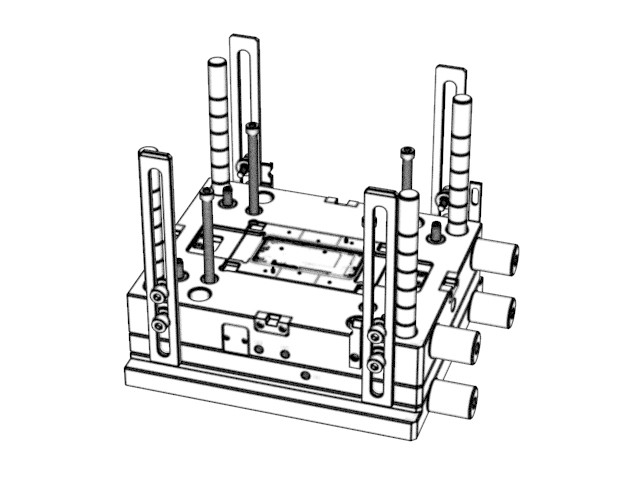

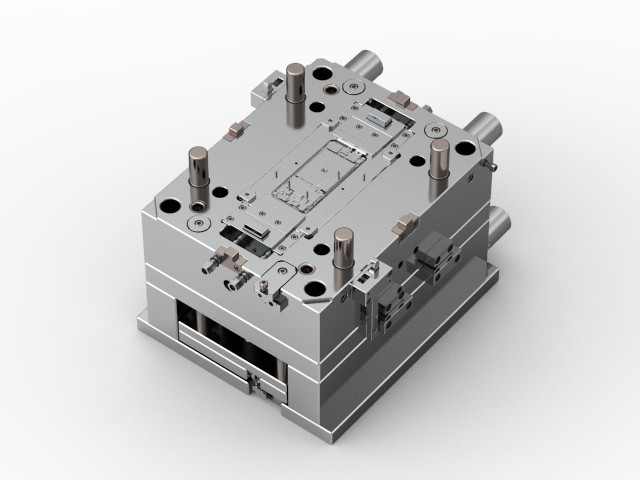

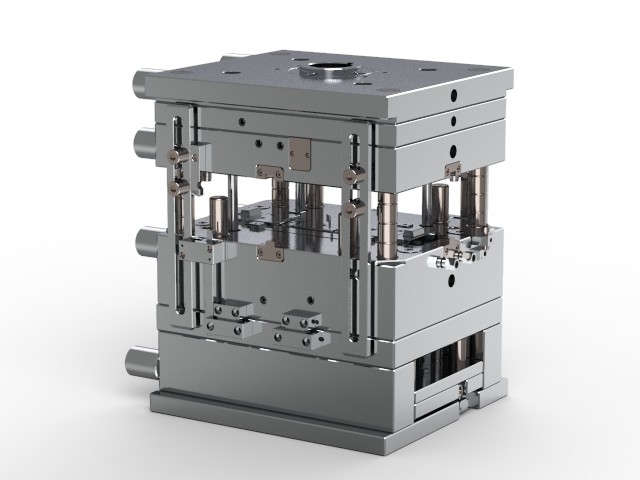

Display diagram
