Antenna holder (1*2) / Three-plates mold / hot sprue No.22677
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | (L) 300*(W) 300*(H) 316 | IMM Tonnage | 90T |
|---|---|---|---|
| Mold Weight | 172.76kg | Steel Of Cavity | Harden With 1*2/S136 |
| Steel Of Core | Harden With 1*2/S136 | Part Material | PC |
| Part Size | 67.15*55.27*3.65mm | Part Weight | 4.5g |
| Design Software | 3D:UG 4.0, 2D:CAD | Structure | Fixed Cavity，Movable Side，Runner Stripper Plate，runner Plate |
Product Description

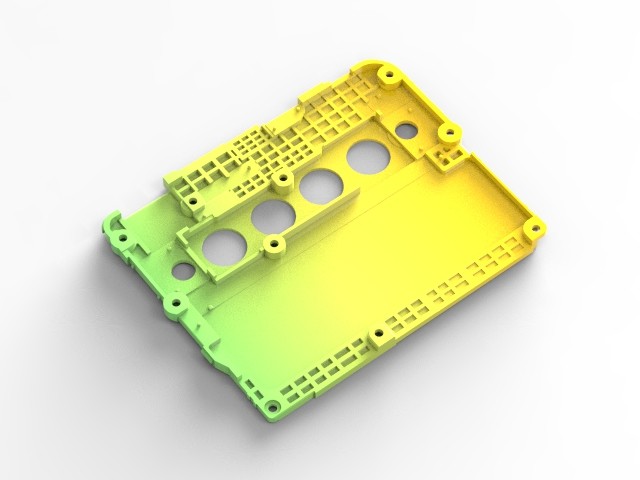

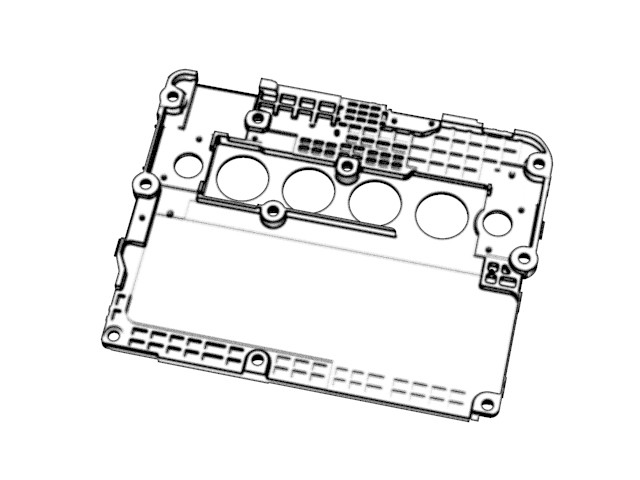

Antenna holder (1*2)
No.22677

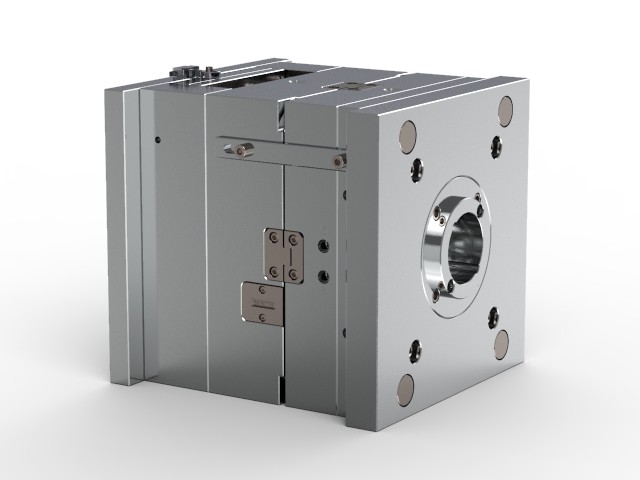

| Size | 300 X 300 X 316(mm) | Standard | ||
| Mold weight | 172.76KG | LKM | ||

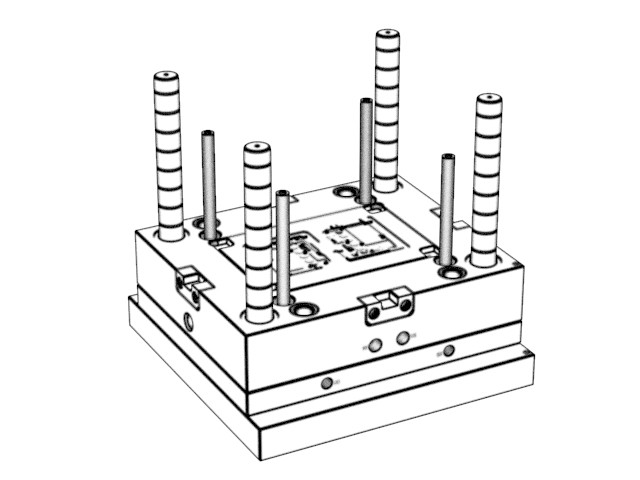

| ★ Tool life > 500k shots ★ IMM tonnage: 90T ★ Pin point gate ★ Three-plates mold |
||||
| The mold is made of high quality steel billet, with surface EDM with VDI 24#, thin EDM marks and semi-gloss finish, w/o machining marks; harden the cavity and core with 1*2/S136; through ESR processing, the mold has pure and fine texture, with good mechanical performance and high polishability. | ||||
| Injection type | Cold runner |
| Runner type |

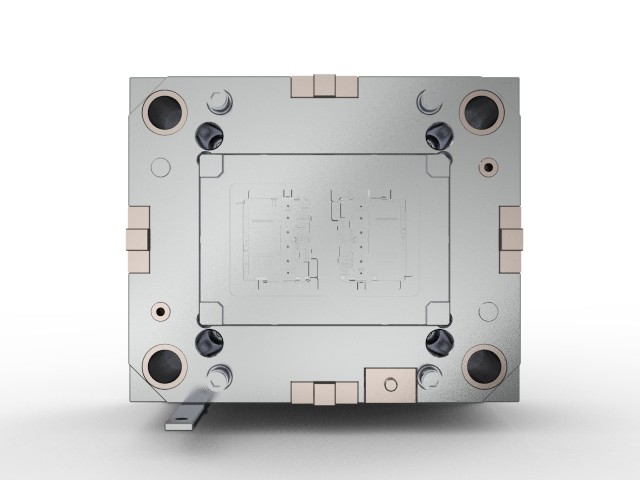

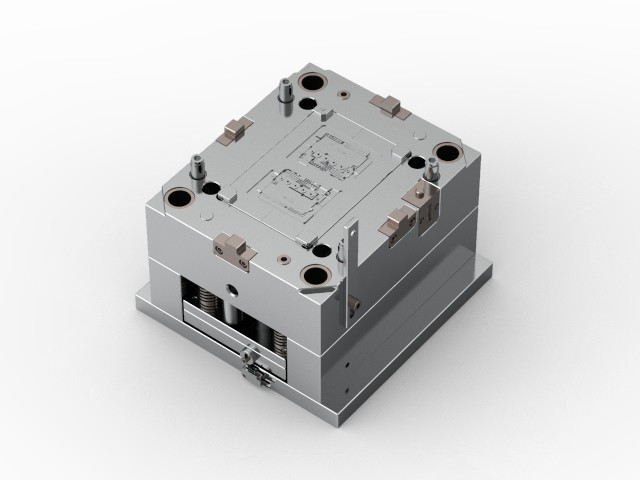

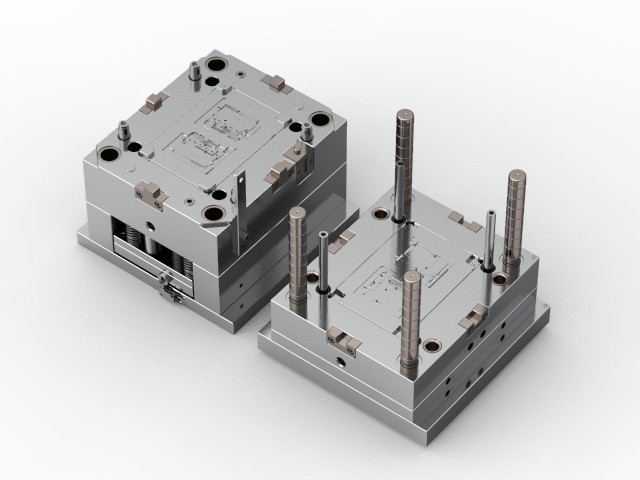

Display diagram
