OEM / ODM : Custom Consumer Electronics Molds / Transparent antenna holder (1*2) No.22677-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 316（mm） | IMM Tonnage | 90T |
|---|---|---|---|
| Mold Weight | 172.76kg | Tool Life | 500k Shots |
| Standard | LKM | Type | Three-plates Mold |
| Injection Type | Cold Runner | Runner Type | Cold Runner |
| Mold Type | Custom Consumer Electronics Molds | Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate |
| Sales Channels | Mold Exporter | Formation Method | Injection Moulding |
Product Description
Transparent antenna holder (1*2)
No.22677-B
| Mold details | |||||
| Size (mm) | (L) 300*(W) 300*(H) 316 | ||||
| Net weight (kg) | 172.76 | ||||
| Steel of cavity |
Harden with 1*2/S136 to have higher production performance, anti-wearing and anti-strain performance, reduce maintenance cost and prolong the tool life |
||||
| Steel of core | |||||
| Gate | Pin point gate | ||||
|
This is a three-plates mold with cold runner, self-degating; mold surface EDM with VDI 24#, semi-gloss finish, w/o machining marks; the molded parts have aesthetic appearance and high glossiness; the molded parts have aesthetic appearance and high glossiness |
|||||
| Part details | |||||
|

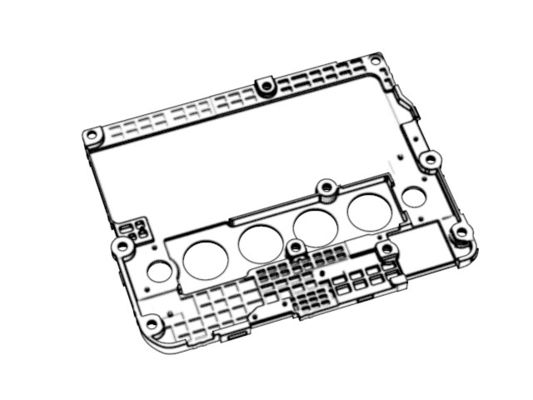

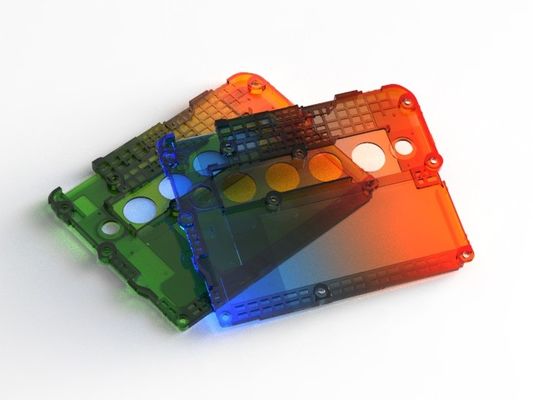

The part material is PC; the part size is 67.15*55.27*3.65mm and the part weight is 4.5g; with precise details and precise fitting |
|||||
|
The mold fits 90T machine, and tool life ≥ 500k shots; with scientific internal structure, short cycle time and minimized cold slug |
|||||

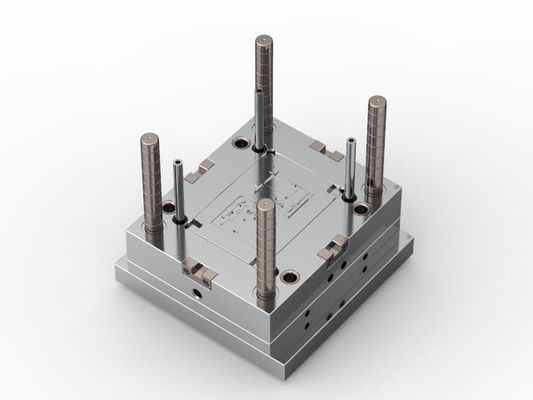

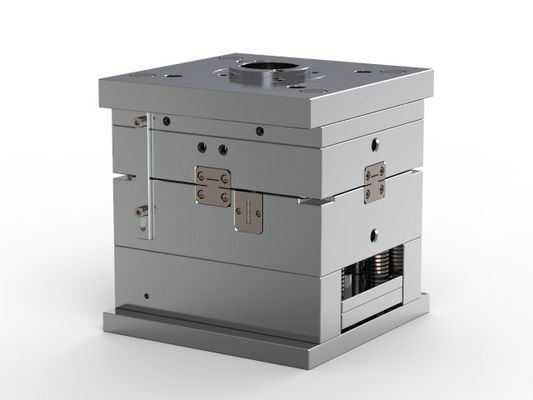

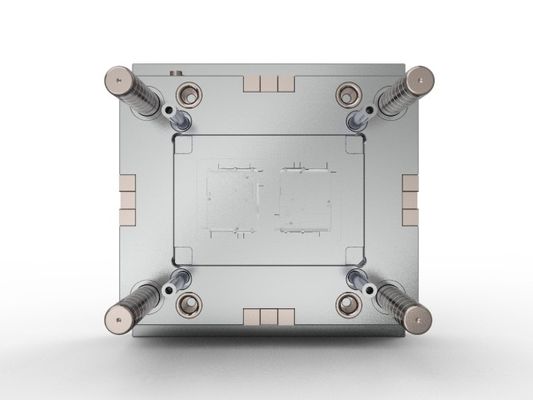

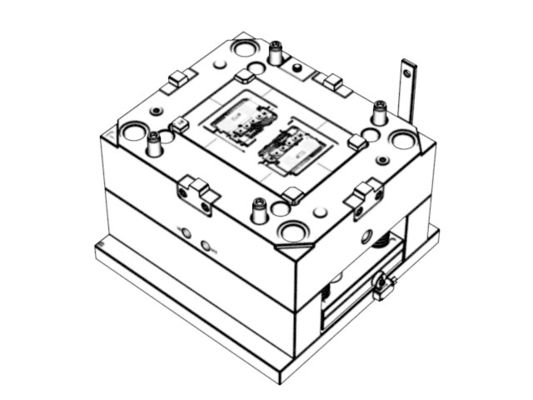

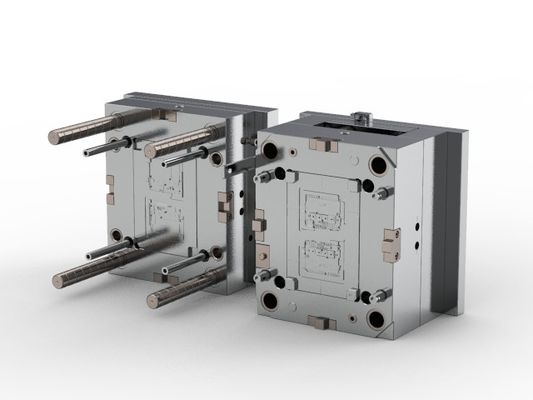

Display diagram
