OEM / ODM ： Multi Cavity Injection Mold & Transparent mainboard bracket (1*2) No.22684
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 316.000mm | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 172.35KG | Tool Life | 500k Shots |
| Type | Three-plates Mold | Mold Standard | LKM |
| Part Material | PC+ABS | Part Size/Weight | 68.35*51.12*2.25mm/3g |
Product Description

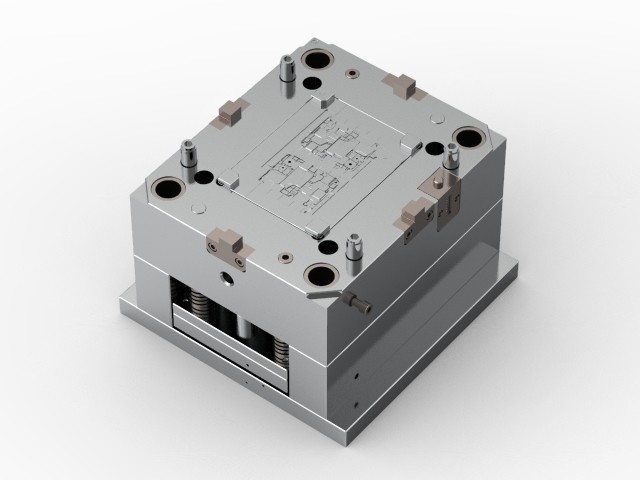

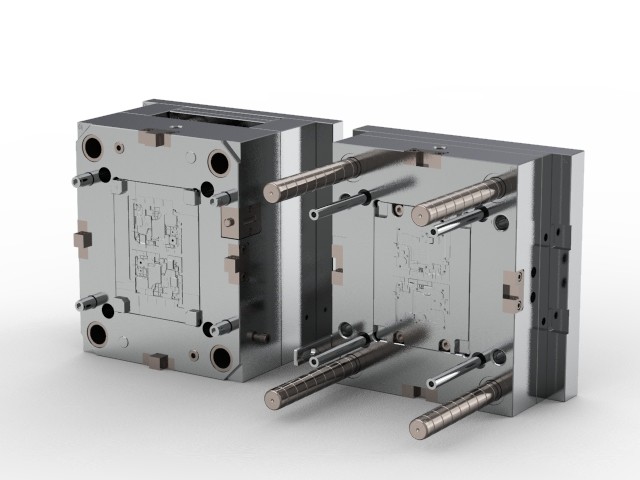

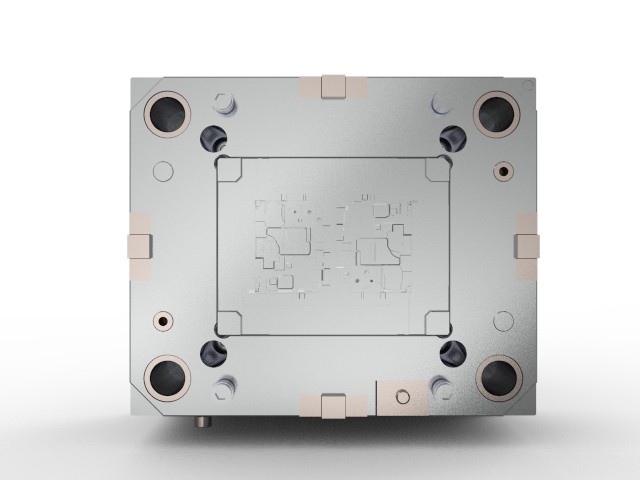

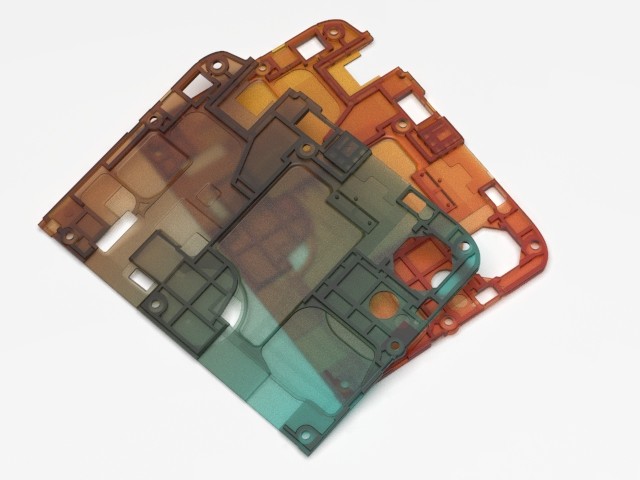

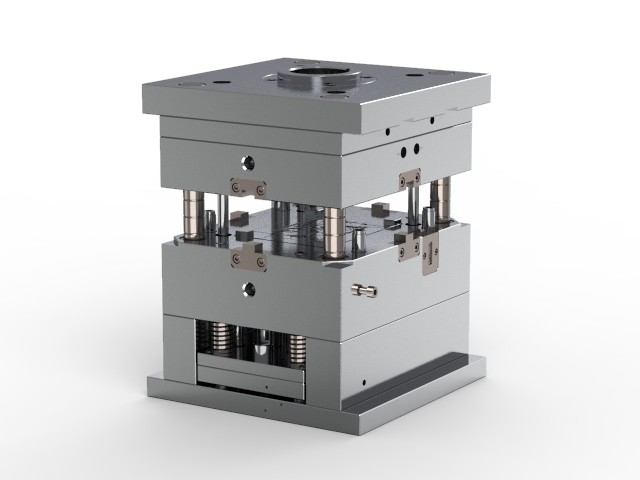

Transparent mainboard bracket (1*2)
No.22684
| LKM mold base | Cold runner |
| Fit 80T machine |
Mold surface EDM with VDI 30# to have smooth surface with slight EDM marks |
| Pin point gate | |
| Tool life up to 500k shots |
| Mold size/weight | 300*300*316mm/172.35kg | Mold steel | Harden with 1*2/S136 | ||||||
| Part Size/Weight | 68.35*51.12*2.25mm/3g | Part material | PC+ABS | ||||||

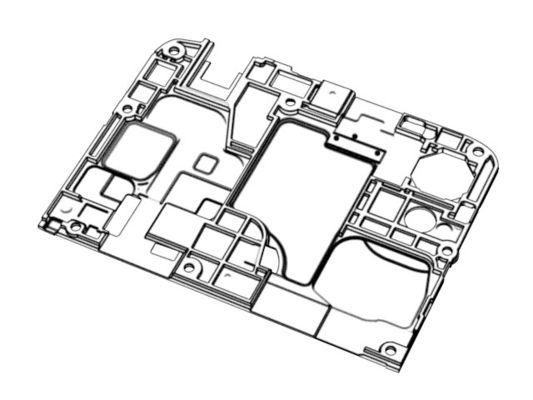

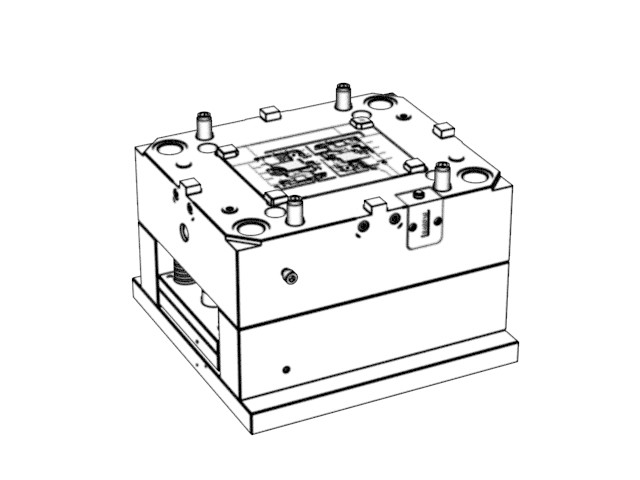

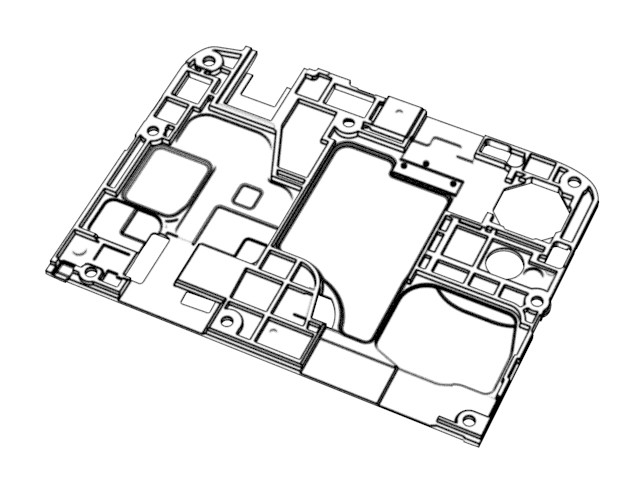

Display diagram
