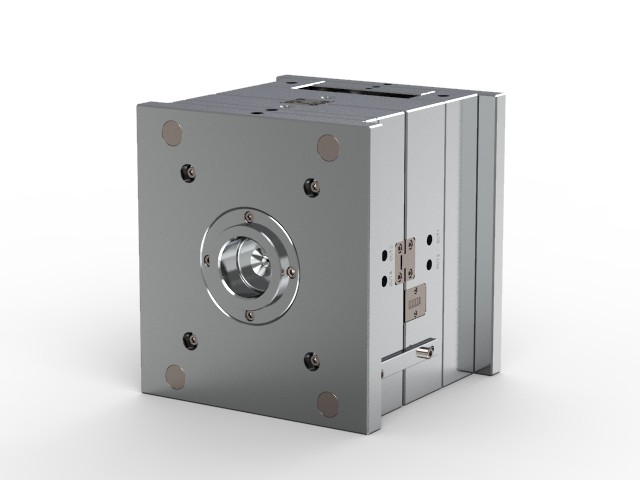

OEM / ODM ： Multi Cavity Injection Mold & Mini mainboard bracket (1*4) No.22685
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320.000 X 350.000 X 316.000mm | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 215.81KG | Type | Three-plates Mold |
| Part Material | PC+ABS | Part Size | 69.34*22.45*2.69 Mm |
| Gate | Pin Point Gate | Lifter | 4 |
| Part Net Weight | 2g |
Product Description

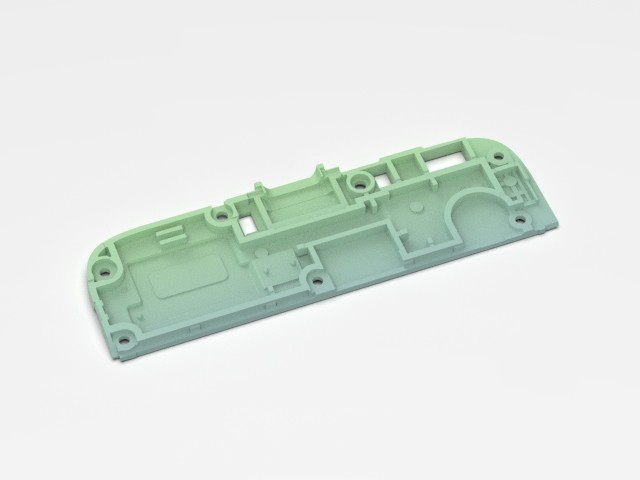

Mini mainboard bracket (1*4)
No.22685
Mold with cold runner, fits 80T machine
| Mold size (mm) | Standard | ||
| L | LKM | ||
| 320 | |||
| W | Type | ||
| 350 | |||
| H | Three-plates mold | ||
| 316 |

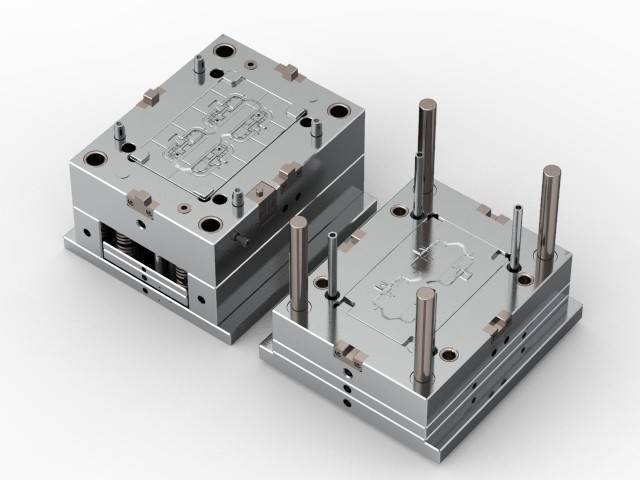

This is a three-plates mold with pin point gate, with flexible gate position,
auto ejection, self-degating, greatly saving labor cost
|
Steel of cavity and core |
|||
| Harden with 1*4/S136 |
| Hardness > 48HRC, harden the cavity and core to improve the hardness, anti-wearing and anti-corrosion performance, and prolong the tool life, meeting the mass production requirements | |||
| Surface finish | VDI 30# | ||
| Features | 4 lifters |
| Part material | Size (mm) | ||||
| PC+ABS | 69.34*22.45*2.69 |

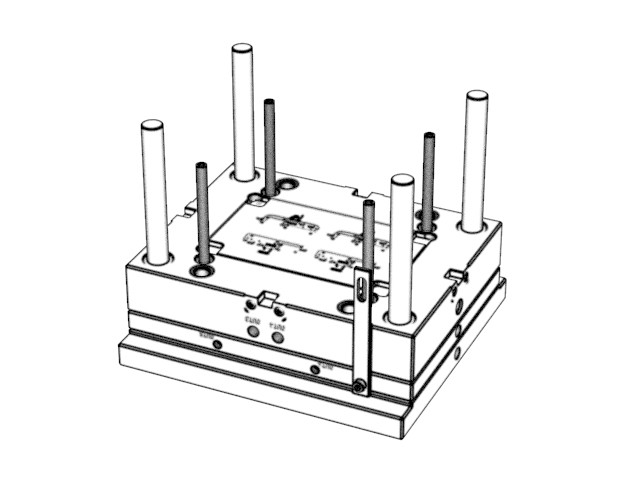

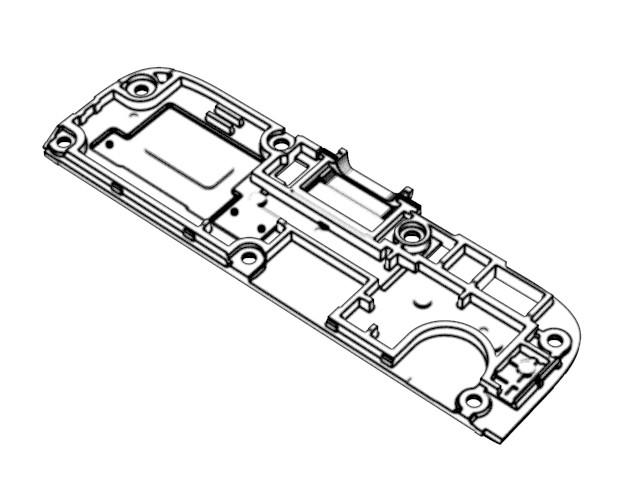

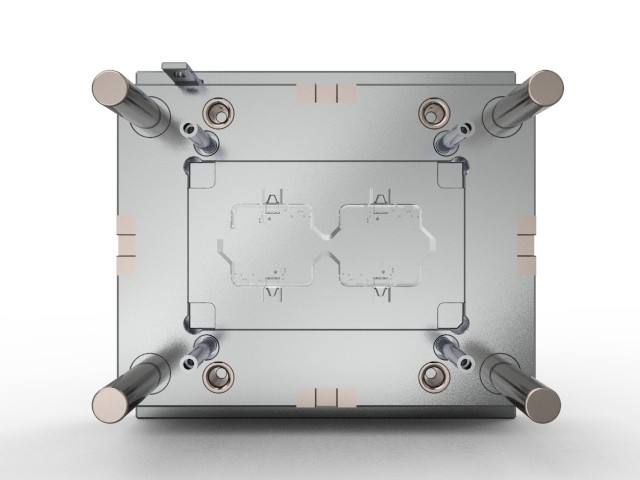

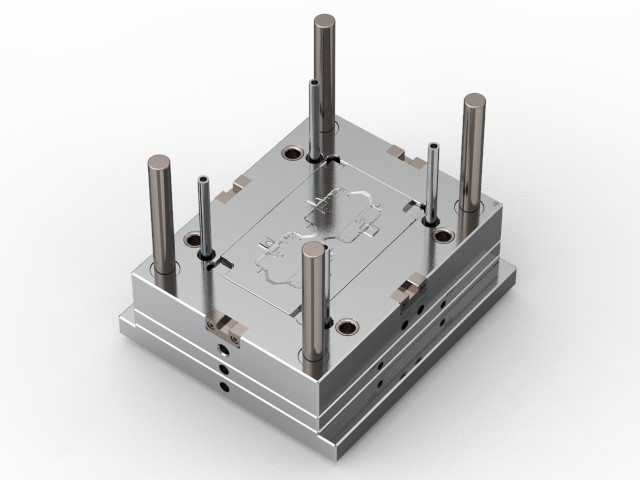

Display diagram
