OEM /ODM ：Custom electronic enclosures mold / Transparent battery cover (1*1) No.24316-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides And 20 Lifters | Size | 400.00 X 500.00 X 490.70(mm) |
|---|---|---|---|
| IMM Tonnage | 180(T) | Mold Total Weight | 710.58(KG) |
| Gate | Pin Point Gate | Injection Type | Hot Runner Turns To Cold Runner |
| Runner Type | Hot Runner Turns To Cold Runner | Tool Life | > 500k Shots |
| Part Material | PC | Formation Method | Encapsulation Molding |
| Mold Type | Custom Mold | Injection Mould Makers | CHitwing |
Product Description

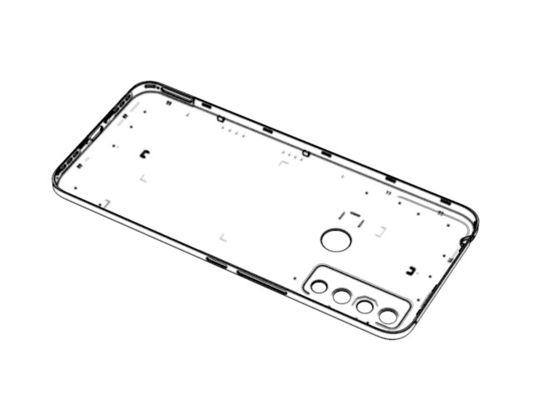

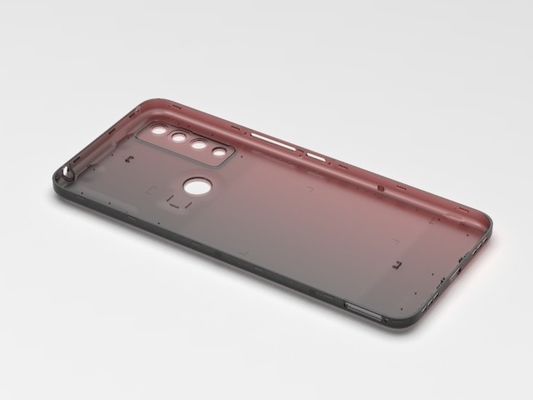

Transparent battery cover (1*1)
No.24316-B
| Type | Three-plates mold | Standard | LKM |
| Injection/runner type: hot runner turns to cold runner | |||
| Gate | Pin point gate | ||
| Mold ① size / ② weight | ①400*500*490.7mm / ②710.58KG | ||
| Product ① size / ② weight | ①75.01 X 164.26 X 8.39mm / ②15g | ||
☆ Each cavity has 4 slides and 20 lifters, with precise structure and scientific design,
good for precise molding
☆ Mold surface with VDI15# 3D etch to have high glossiness and reduce mold wearing
☆ Fit 180T machine
☆ Tool life > 500k shots
| Steel of cavity and core | Harden with S136 | |
| Part material | PC | |

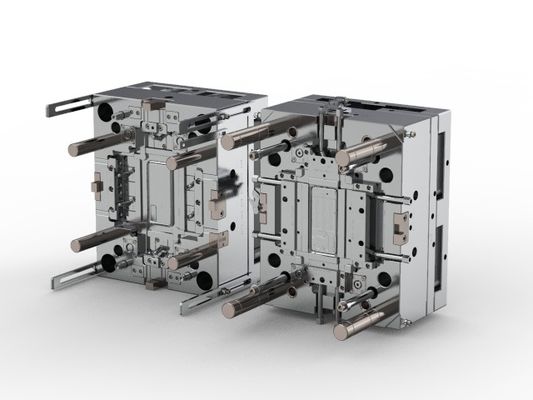

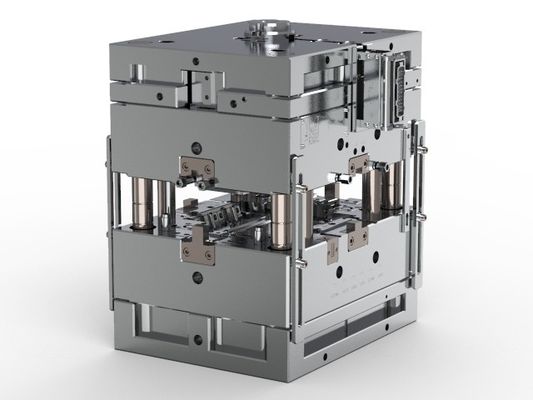

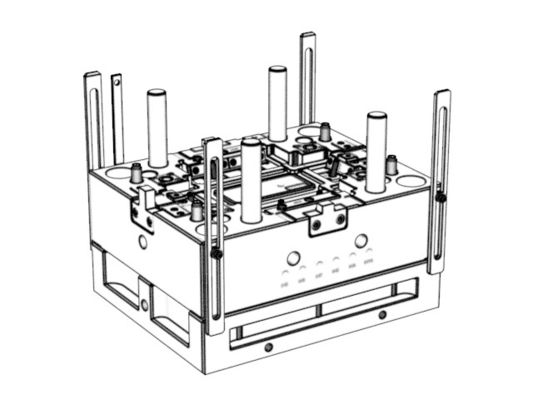

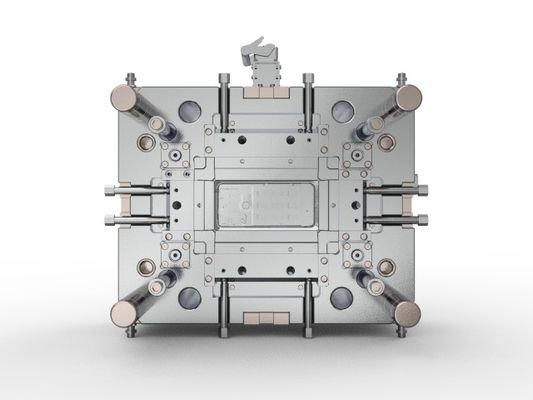

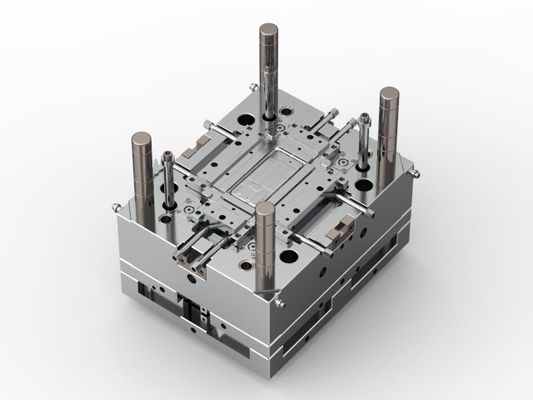

Display diagram
