OEM/ODM：How to customize cost-effective molds / Mainboard bracket (1*2) No.24317
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 316.000(mm) | IMM Tonnage | 110(T) |
|---|---|---|---|
| Mold Weight | 169.29(kg) | Cavity | Harden With S136 |
| Core | Harden With S136 | Gate | Pin Point Gate |
| Injection Type | Cold Runner | Runner Type | Cold Runner |
| Part Material | PC+20%GF | Tool Life | 500k Shots |
Product Description

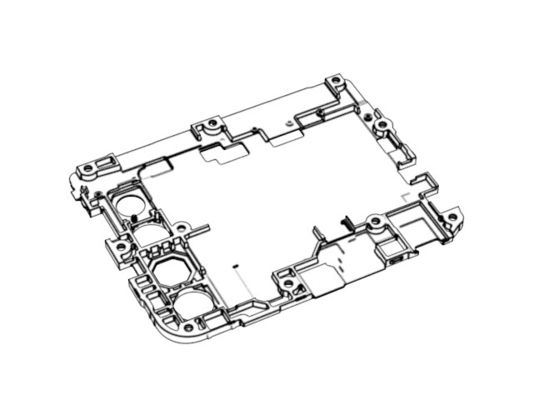

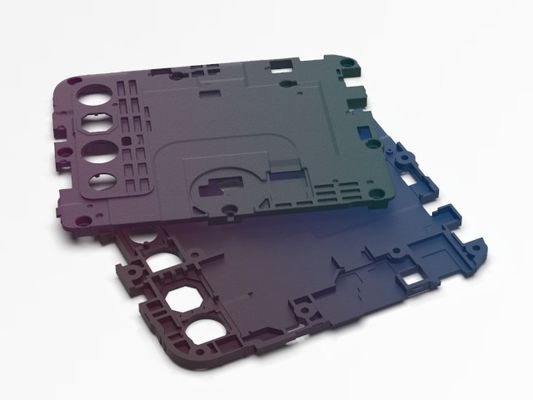

Mainboard bracket (1*2)
No.24317
Mold details
| Size (mm) | LKM standard | Gate | Type | ||
| L: 300 | W: 300 | H: 316 | Pin point gate | Three-plates mold | |
| Net weight (kg) | Cavity | Core | Injection type | Runner type | |
| 169.29kg | Harden with S136 | Cold runner | Cold runner | ||
| Tool life |
| 500k shots |
① Fit 110T machine
② Mold surface EDM with VDI27#, harden the cavity and core to improve the hardness,
anti-strain and anti-corrosion performance, prolong the tool life

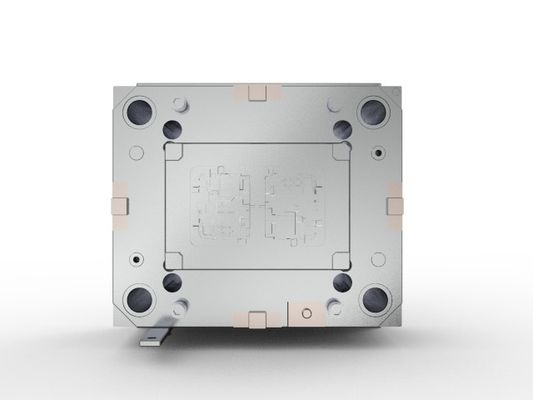

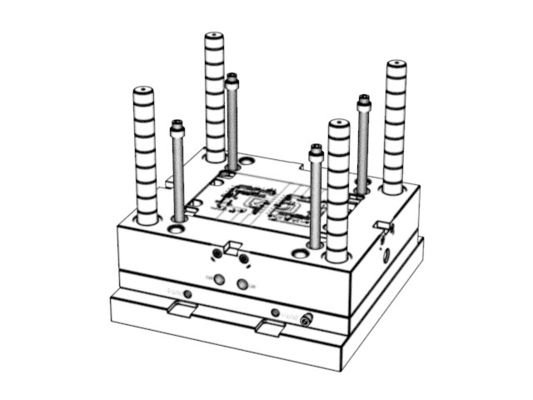

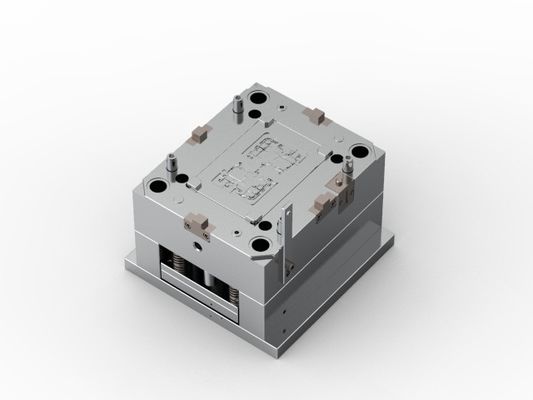

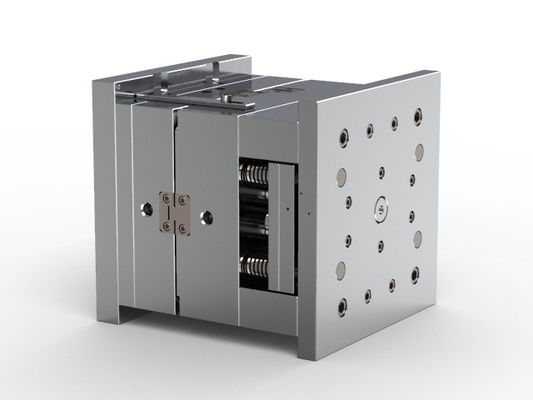

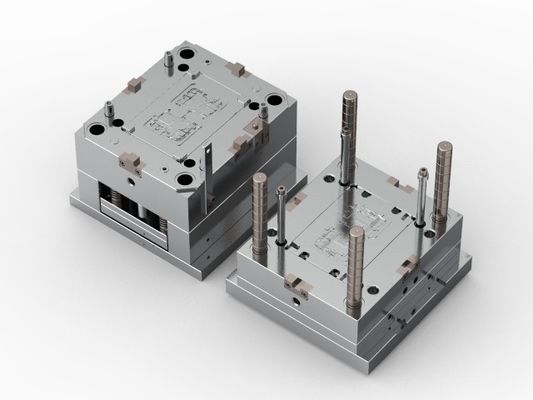

Display diagram
