OEM/ODM：How to customize cost-effective molds / Transparent mainboard bracket (1*2) No.24317
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 316.000mm | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 169.29kg | Mould Life | 500，000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Mould Cavity | Harden With S136 |
| Part Material | PC+20%GF | Type | Three-plates Mold |
Product Description

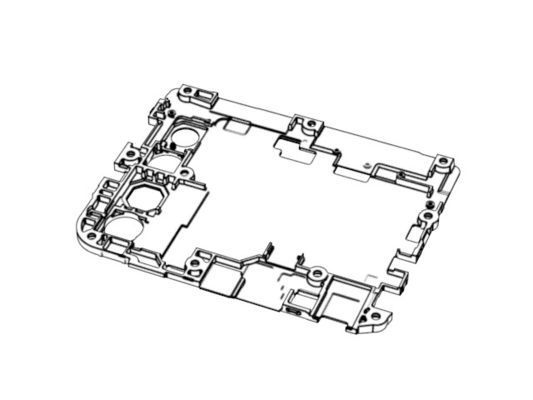

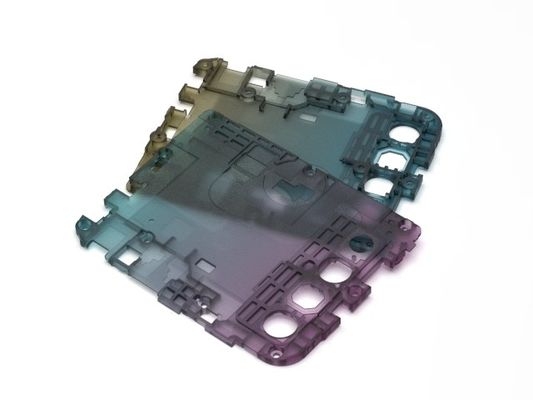

Transparent mainboard bracket (1*2)
No.24317
|
|
||||||||||||||||||
| This is a three-plates mold developed (designed and manufactured) by Chitwing with LKM high-quality mold base, self-degating; surface EDM with VDI 27# semi-gloss; mold surface is smooth without roughness and tool life is up to 500k shots; the molded parts have complete details w/o flash; the mold fits 110T machine; mold net weight is 169.29 kg; part weight is about 4.3g | ||||

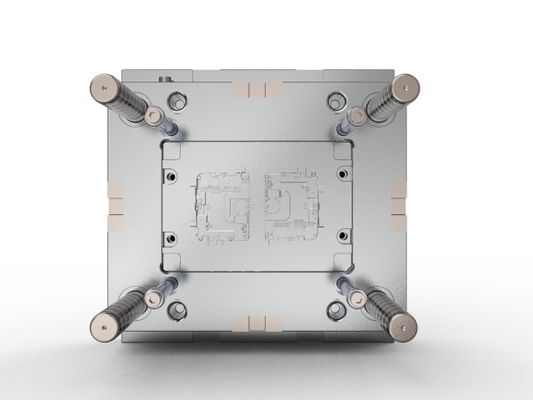

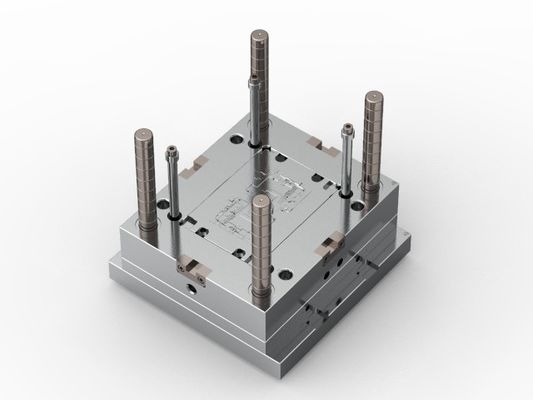

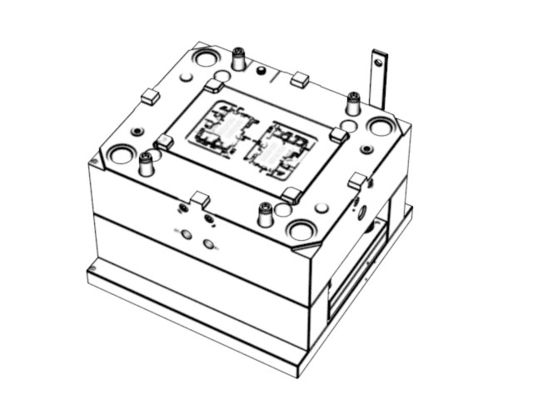

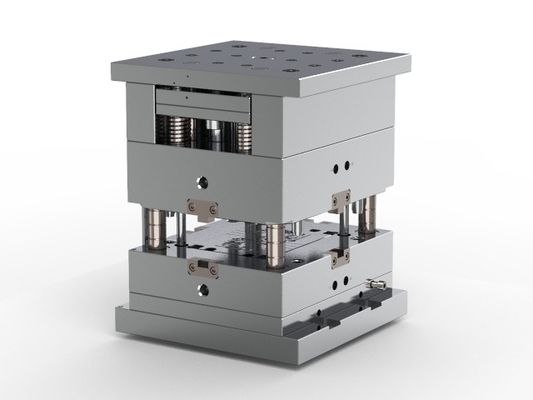

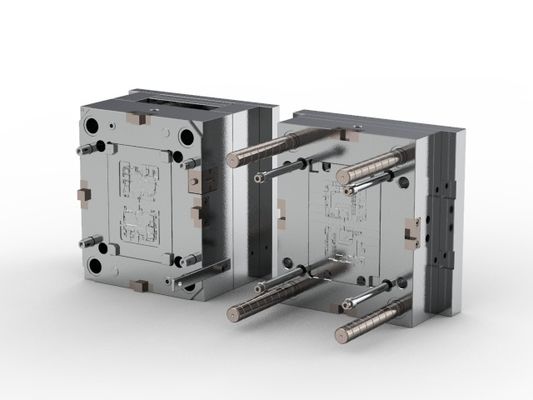

Display diagram
