OEM/ODM：Custom Electronic Enclosures / Lower bracket (1*4) No.24318
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 400.000 X 356.000(mm) | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 308.86(kg) | Mould Life | 500，000 Shots |
| Mould Material | Harden With S136 | Mould Base | LKM |
| Design Software | 3D:UG 4.0, 2D:CAD | Runner | Hot Sprue Cold Runner |
| Slide | 1 | Mold Type | Custom Consumer EElectronics Molds |
| High Light | 130T Multi Cavity Injection Mold,Lower bracket Multi Cavity Injection Mold,Mobile Phone Cold Runner Injection Mold |
||
Product Description

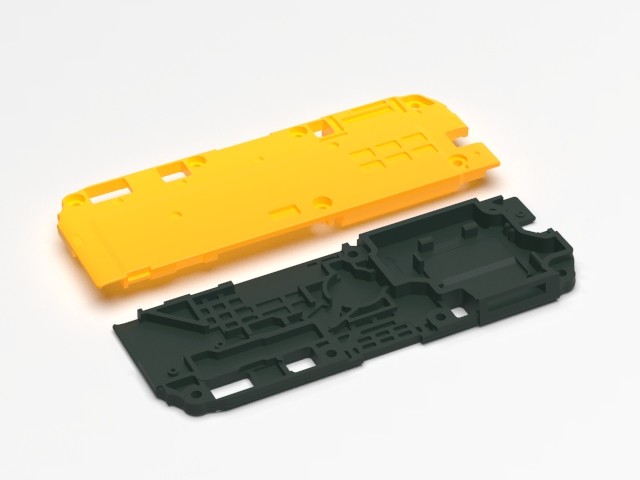

Lower bracket (1*4)
No.24318
| Type | Standard | Mold size (mm) | Net weight (kg) | Slide | |||
| Three-plates mold | LKM | L: 350 | W: 400 | H: 356 | 308.86kg | 1 | |
IMM tonnage: 130T
Tool life: > 500k shots
| Steel of cavity | Steel of core | Surface finish | Injection type | Runner type |
| Harden with S136 | VDI27# | Cold runner | ||
| Part size (mm) | Part material | ||
| L: 68.87 | W: 24.2 | H: 5.05 | PC+20%GF |

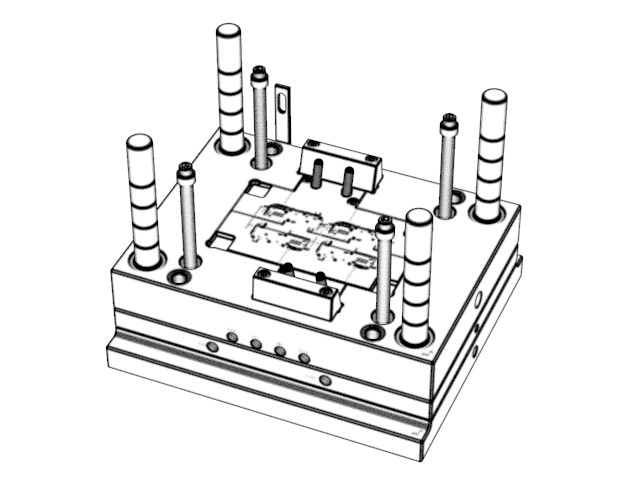

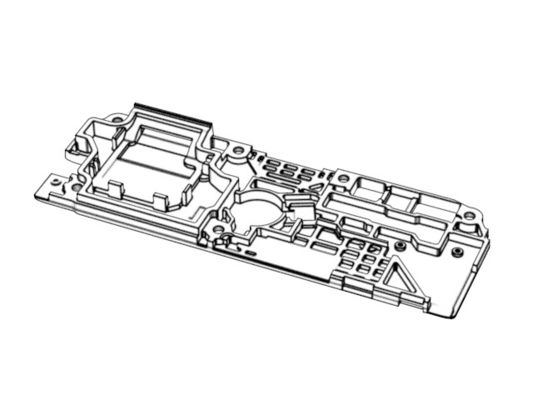

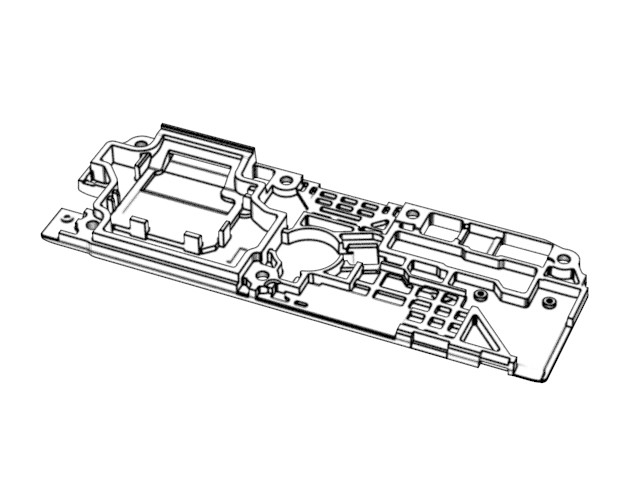

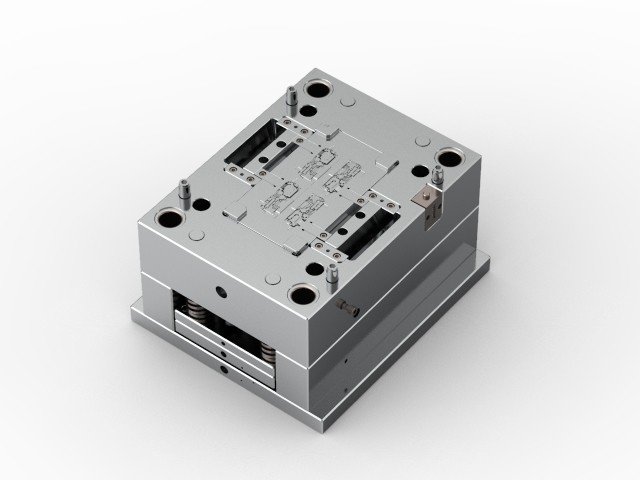

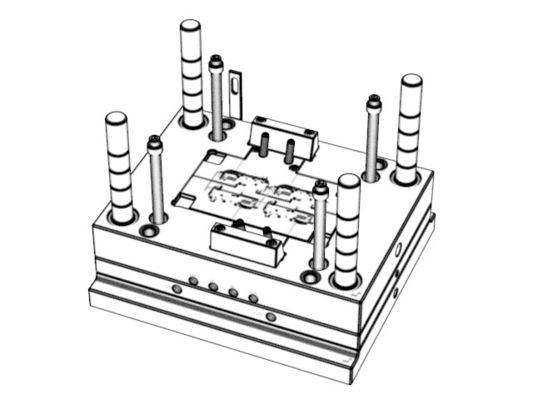

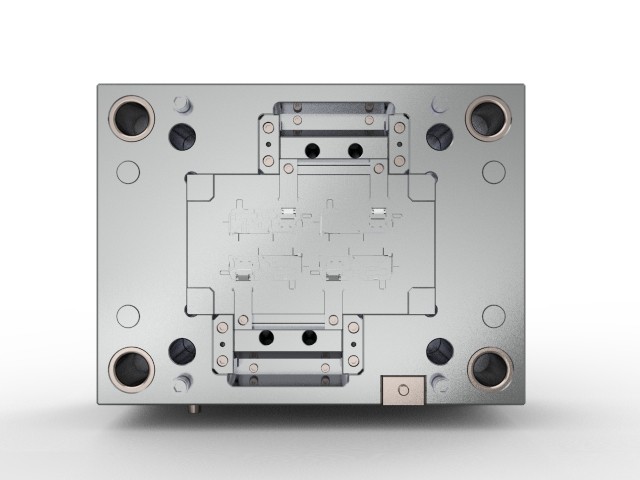

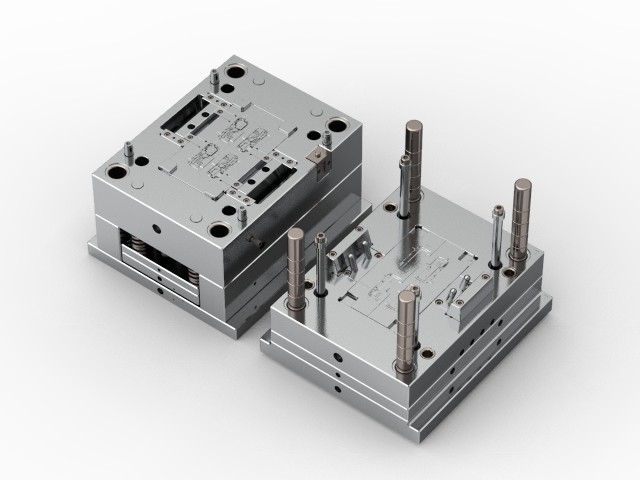

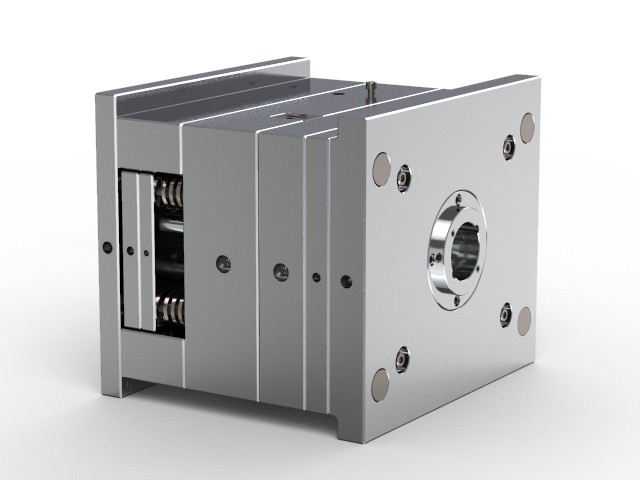

Display diagram
