OEM/ODM：Custom Electronic Enclosures / Transparent lower bracket (1*4) No.24318
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 400.000 X 356.000mm | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 308.86kg | Part Material | PC+20%GF |
| Part Size | 68.87*24.2*5.05mm | Part Weight | 3.3g |
| Surface Finish | VDI27# | Steel Of Cavity And Core | Harden (1*1/S136) |
| Standard | LKM | Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate |
| Forming Method | Encapsulation Molding | ||
| Highlight | Three Plate Cold runner Mould,500k Shots Cold runner Mould,130T Cold runner Mould |
||
Product Description

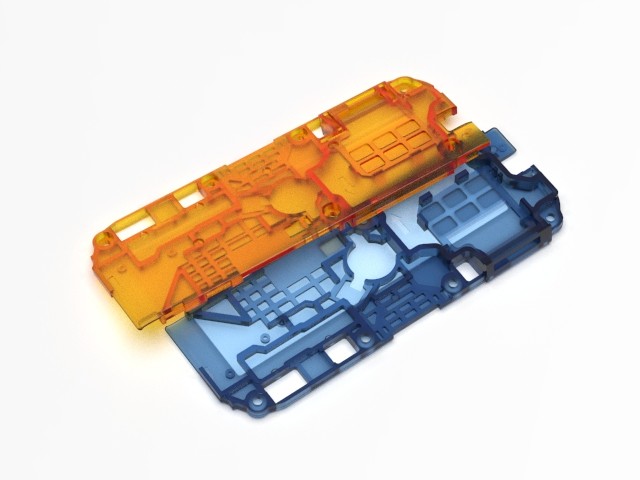

Transparent lower bracket (1*4)
No.24318
| Mold standard / type | Mold size (mm) | Net weight | Slide | ||
| LKM / three-plates mold | L*W | H | 308.86kg | 1 | |
| 350*400 | 356 | ||||
Fit 130T machine
| The mold with pin point gate, self-degating, good for automated production; minimized gate marks ensure aesthetic part appearance. | |||||
| Mold surface polished with VDI27#; harden the cavity and core with S136 to improve the anti-wearing and anti-corrosion performance | ||
| Part material | PC+20%GF | |
| Part size | 68.87*24.2*5.05mm | |
| Part weight | 3.3g | |

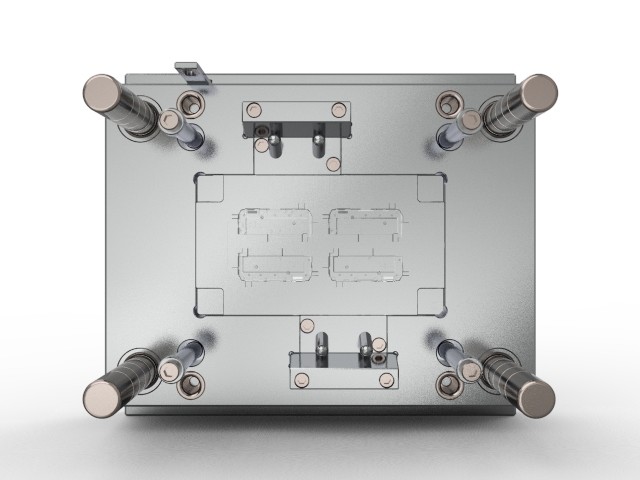

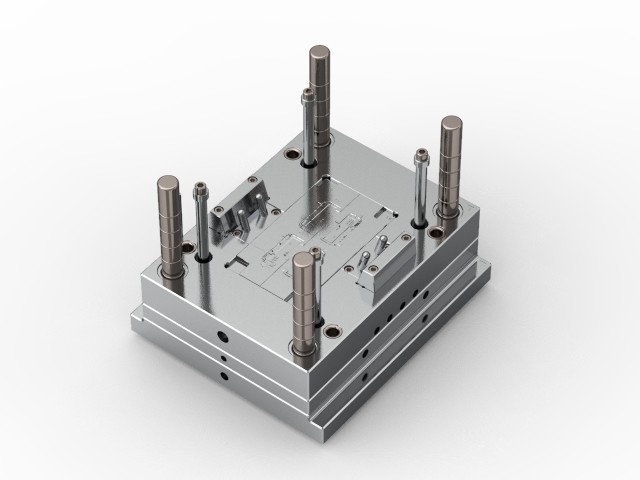

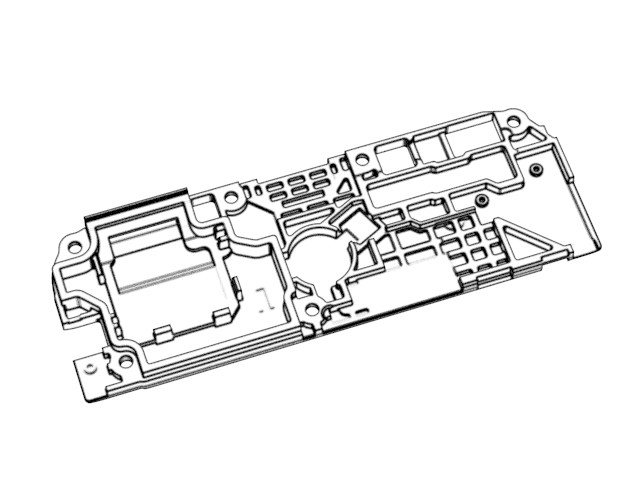

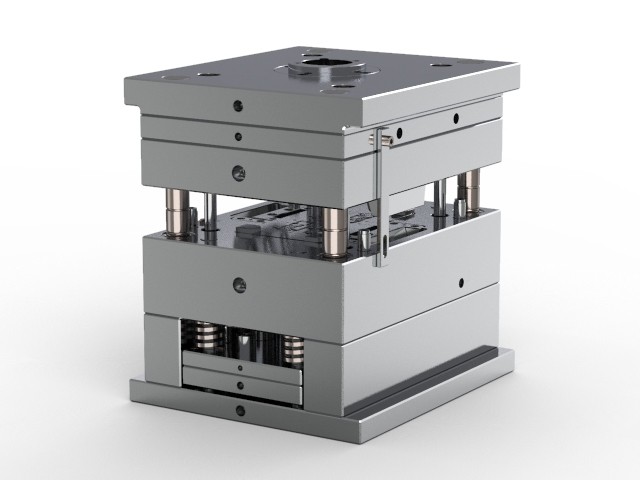

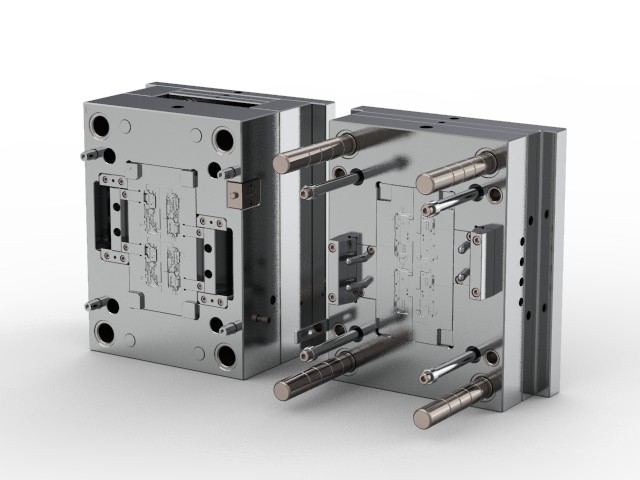

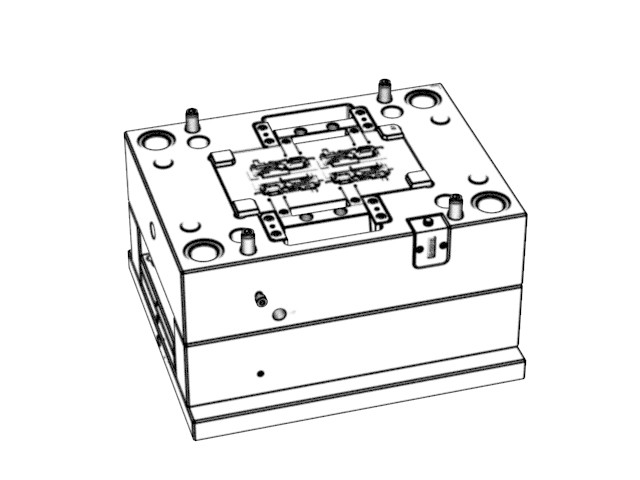

Display diagram
