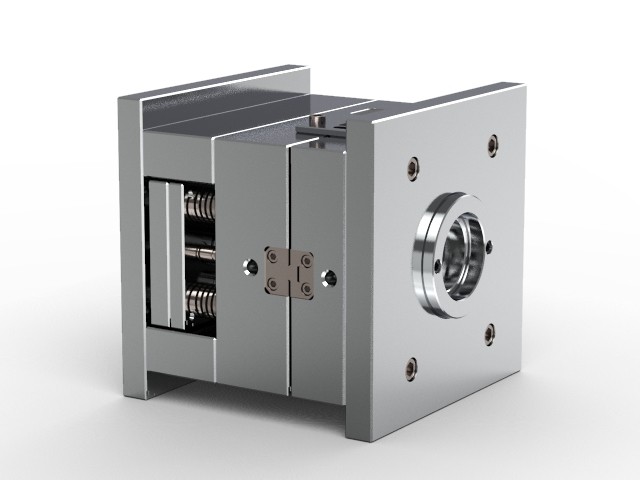

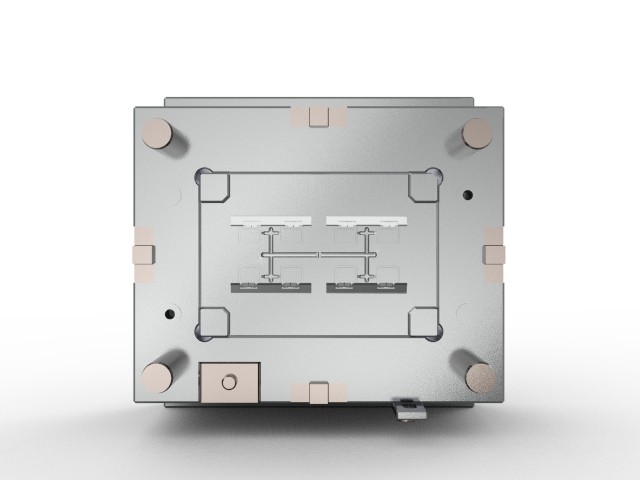

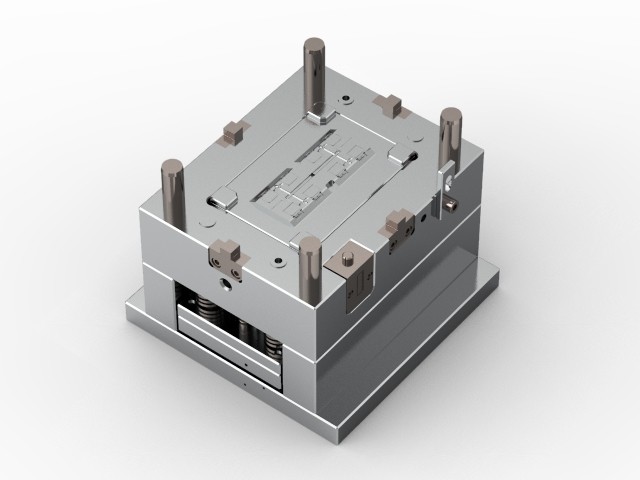

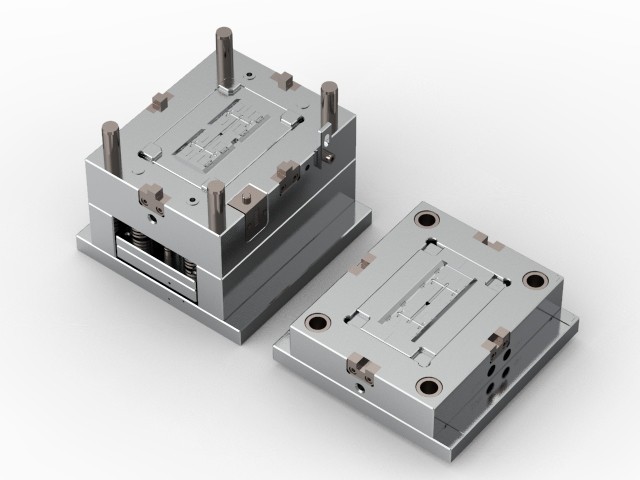

Spk bracket (1*8) / Cold runner / Two-plates mold No.24319
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250*250*241(mm) | IMM Tonnage | 80(T) |
|---|---|---|---|
| Mold Weight | 88.78(kg) | Part Size | 15.22*15*3.45 |
| Part Material | PC | Part Weight | 0.12g |
| Surface Finish | Polish With VDI27# | Injection/runner Type | Cold Runner |
| Highlight | Spk Bracket Multi Cavity Injection Mold,Polish Multi Cavity Injection Mold,Cold Runner two plate mold |
||
Product Description

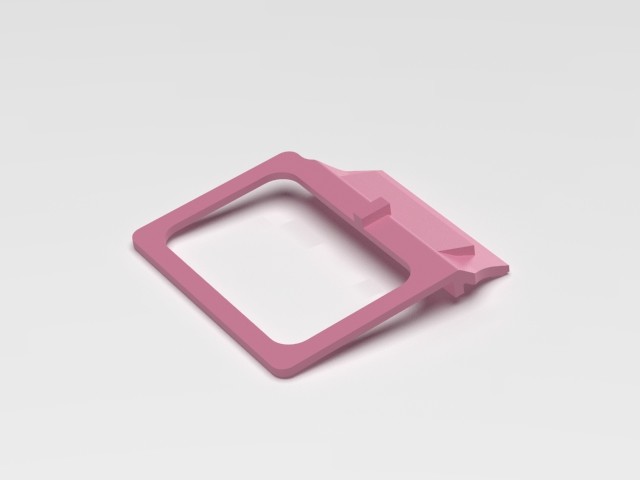

Spk bracket (1*8)
No.24319
| Standard | LKM | ||
| Injection/runner type | Cold runner |
| Mold | Material | (cavity and core) Harden with S136 | |
| Size (mm) | 250*250*241 | ||
| Net weight | 88.78kg | ||
| Surface finish | Polish with VDI27# | ||
| Part | Material | PC | |
| Size (mm) | 15.22*15*3.45 | ||
| Net weight | 0.12g | ||
| Tool life up to 500k shots | |||
Fit 80T machine
| This is a mode with side gate, with fast filling, low pressure and good feeding capacity, simple structure and easy processing; require manual degating | |||||

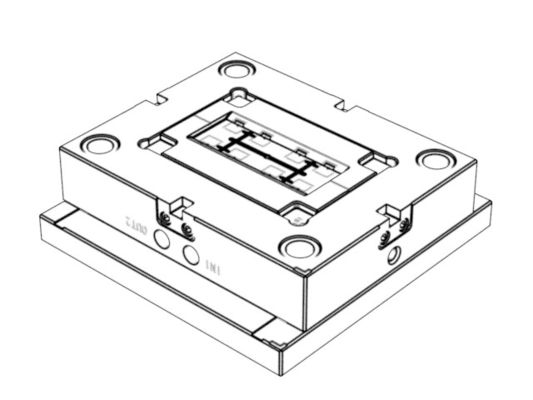

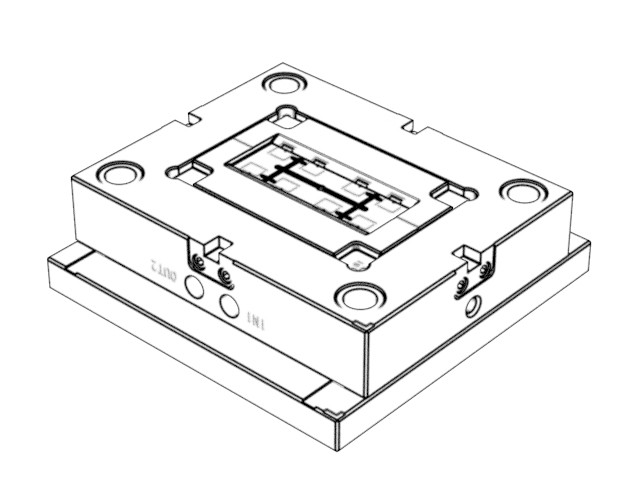

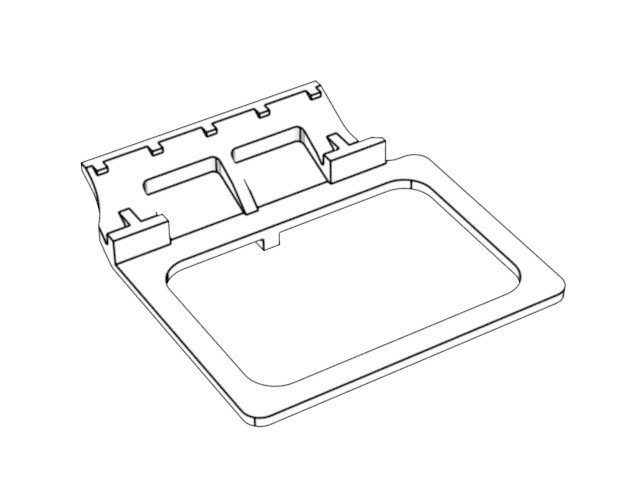

Display diagram
