Transparent spk bracket (1*8) / Cold runner / Two-plates mold No.24319
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250*250*241mm | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 88.78kg | Mould Life | ≥500000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0, 2D:CAD |
| Injection/runner Type | Cold Runner | Part Net Weight | 0.12g |
| Type | Two-plates Mold | Surface Finish | Polish With VDI27# |
| High Light | SPK Bracket Clear ABS Injection Molding,80T Clear ABS Injection Molding,500000 shots Clear ABS Injection Molding |
||
Product Description
Transparent spk bracket (1*8)
No.24319
| Type | Two-plates mold | Standard | LKM | ||

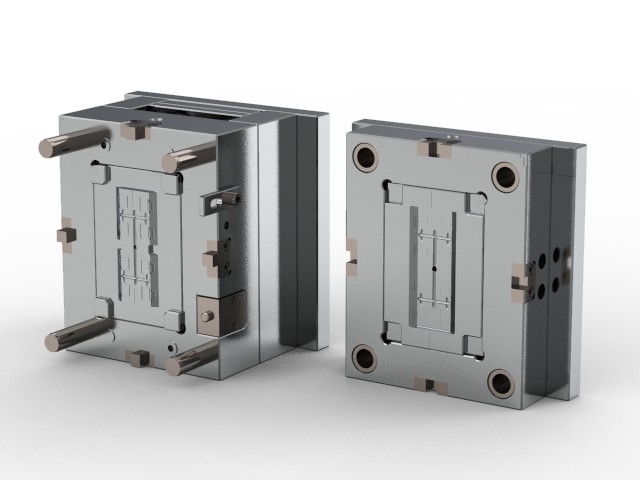

| This mold with side gate, filling 8 cavities within a short period, require low pressure and have good feeding capacity; with high-quality mold base, the cavity and core is hardened with S136 to have high hardness, anti-wearing and anti-corrosion performance; tool life up to 500k shots No tripper plate, require manual degating |
|||||
Fit 80T machine
| Injection/runner type | Cold runner |

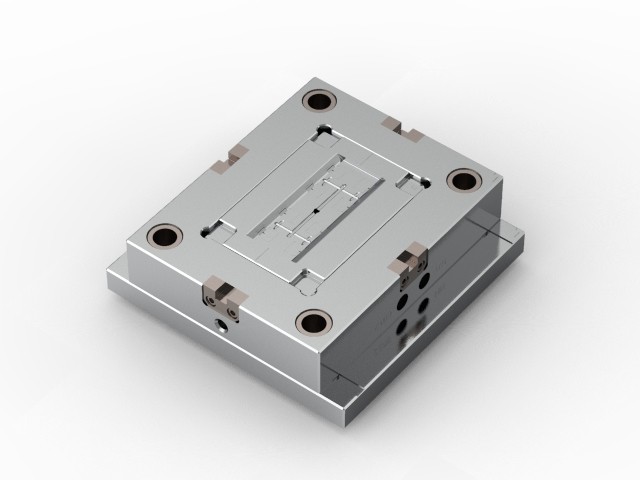

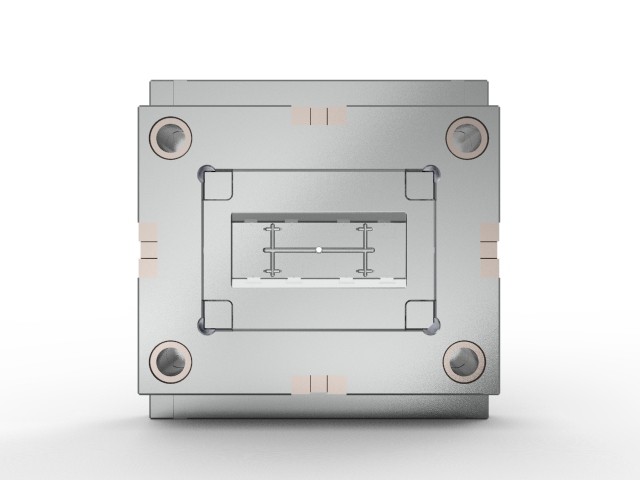

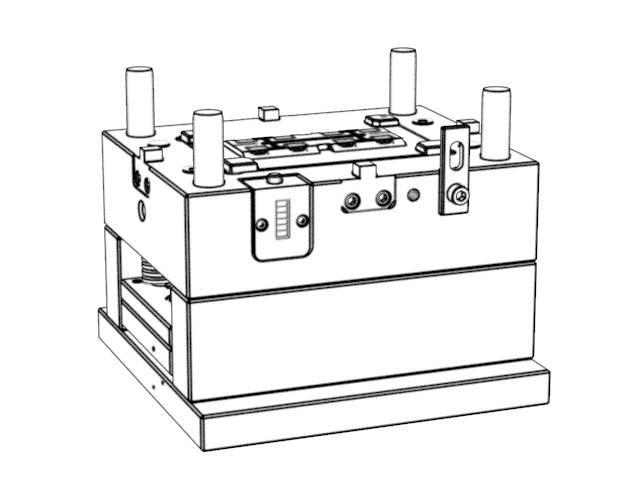

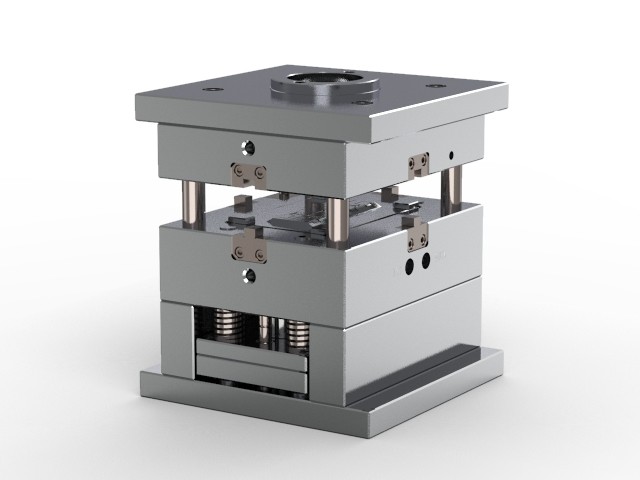

| Mold size | L | 250mm | W | 250mm | H | 241mm | Net weight | 88.78kg |

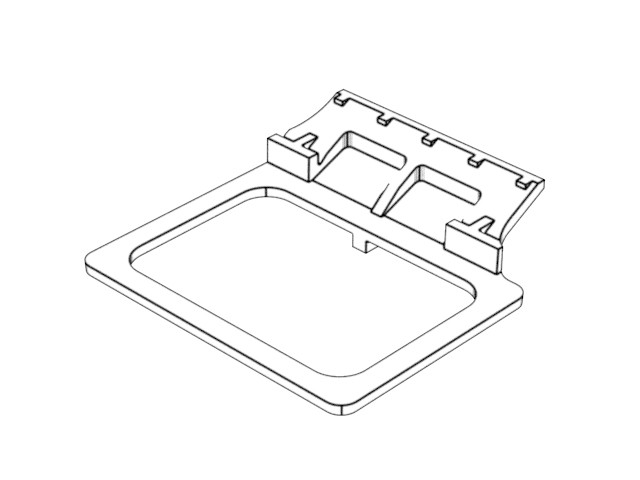

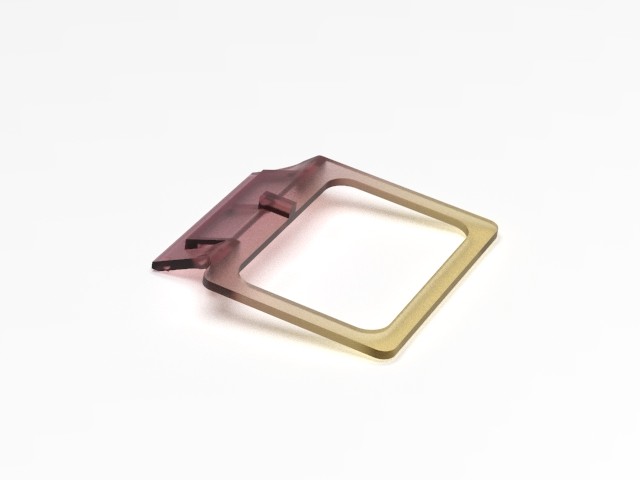

| Part size | L | 15.22mm | W | 15mm | H | 3.45mm | Net weight | 0.12g |
Display diagram
