OEM/ODM : Custom mold manufacturing / BOX bracket (1*8) No.24628
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | home automation |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400*400*361(mm) | IMM Tonnage | 110(T） |
|---|---|---|---|
| Mold Weight | 362.63（kg） | Part Material | PC+20%GF |
| Part Size | 70.43*20.38*3.28mm | Part Weight | 1.78g |
| Injection Type | Cold Runner | Runner Type | Cold Runner |
| Standard | LKM | Type | Three Plate |
| Mold Type | Custom Consumer Electronics Molds | ||
| High Light | BOX Bracket Plastic Injection Moulding Die,500k Shots Plastic Injection Moulding Die,LKM injection moulding die |
||
Product Description

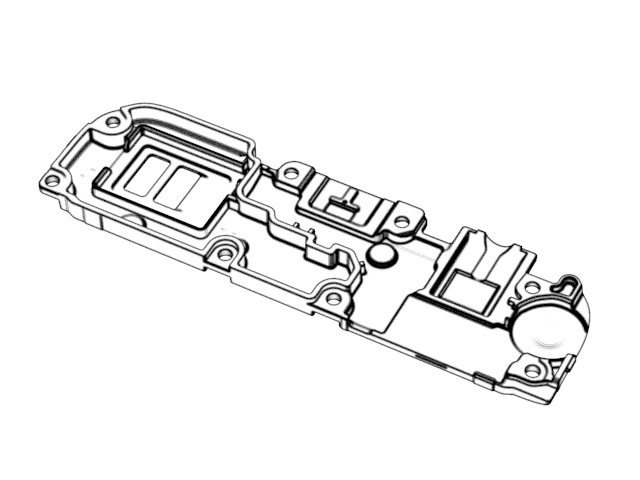

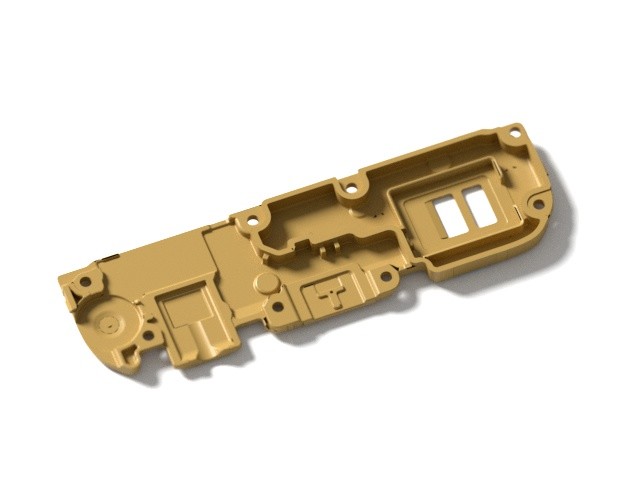

BOX bracket (1*8)
No.24628
| Standard | LKM | Service life up to 500K shots | |
| Type | Three-plates mold | ||
| Gate | Pin point gate | ||
| Mold size | 400*400*361mm | ||
| Mold net weight | 362.63kg | ||
| Lifter | 2 in each cavity | ||
| Steel of cavity | Steel of core | ||
|
Harden with S136 (hardness up to 48-54HRC, with high hardness, anti-wearing and anti-corrosion performance and good machinability, low maintenance cost) |
|||
| Injection type | Runner type | ||
| Cold runner | |||
| Mold surface polished with VDI24# (Makino) to have high glossiness without roughness | |||
| Part size | 70.43*20.38*3.28mm | ||
| Part weight | 1.78g | ||
| Part Material | PC+20%GF | ||
Fit 110T machine

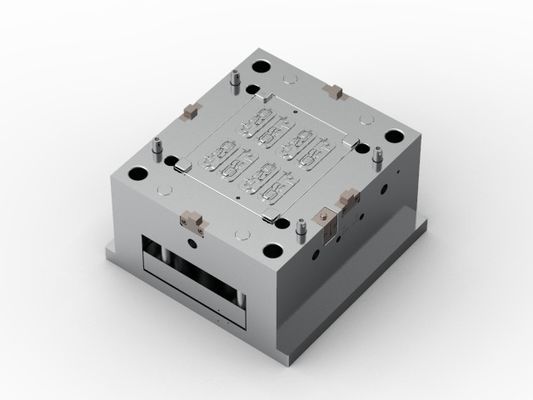

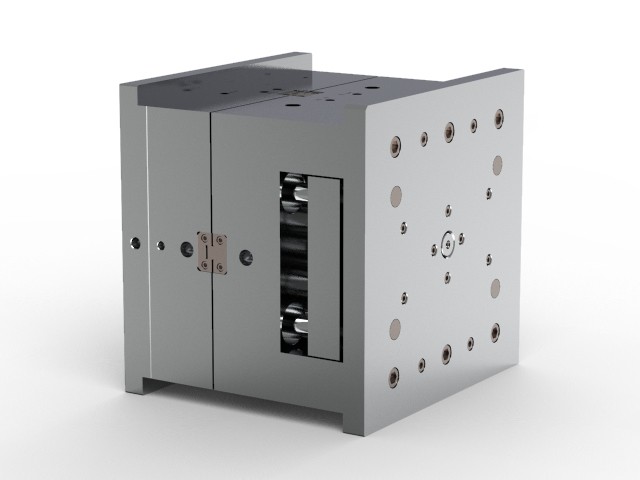

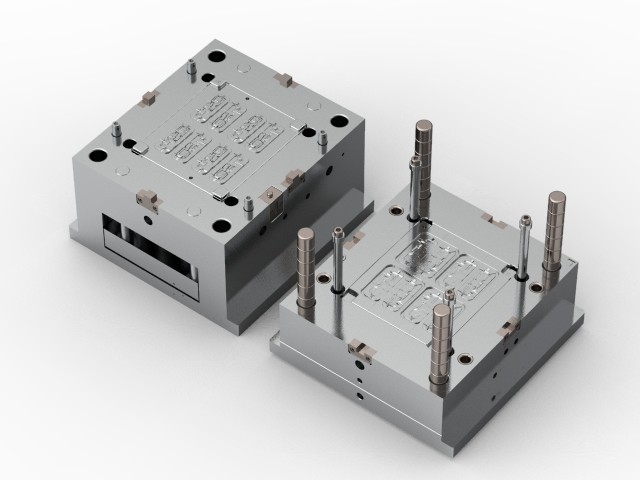

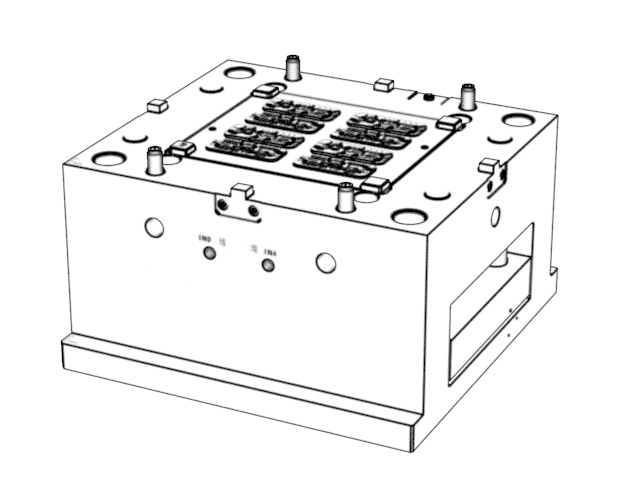

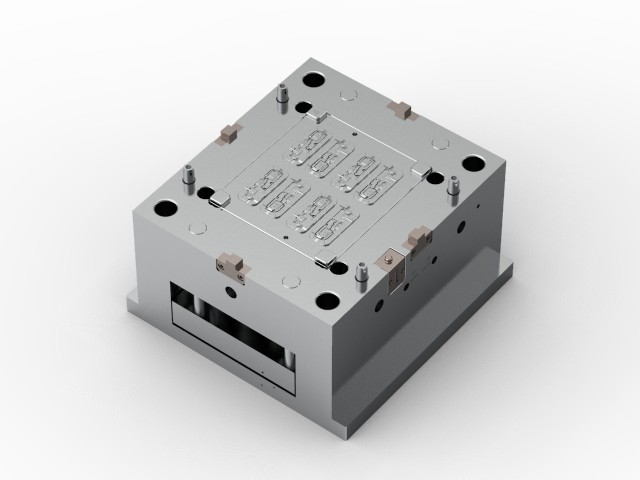

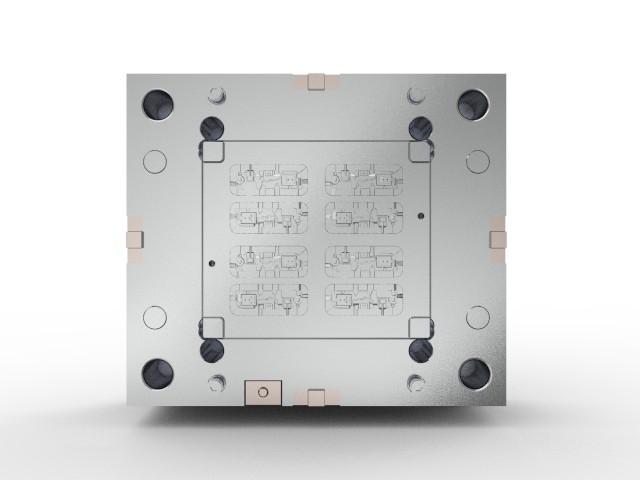

Display diagram
