OEM/ODM:Transparent BOX bracket (1*8) / Cold runner / Three-plates mold No.24628
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | home automation |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400*400*361mm | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 362.63kg | Gate Type | Pin Point Gate |
| Lifter | 2 In Each Cavity | Steel Of Cavity | Harden With S136 |
| Steel Of Core | Harden With S136 | Tool Life | Up To 500k Shots |
| Injection/runner System | Hot Sprue / Cold Runner | Formation Method | Injection Moulding |
| Custom Mold Manufacturing | Chitwing | ||
| High Light | BOX Bracket Multi Cavity Injection Mold,S136 Steel Multi Cavity Injection Mold |
||
Product Description

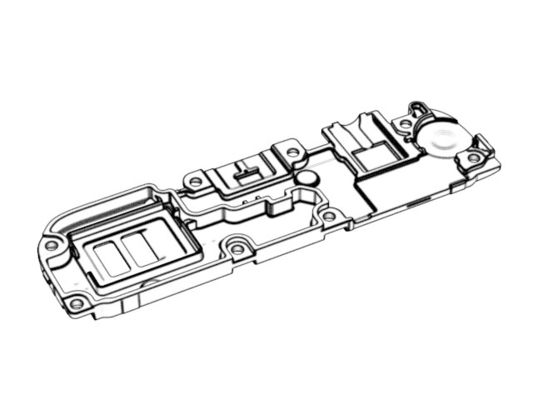

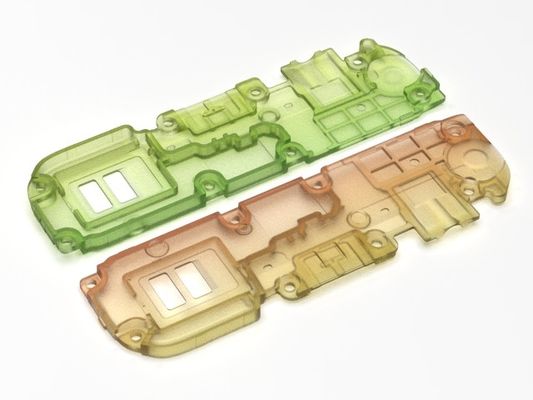

Transparent BOX bracket (1*8)
No.24628
| This is a three-plates mold with pin point gate, self-degating, high injection pressure; fit 110T machine; 2 lifters in each cavity, can mold 8 parts simultaneously, meeting the automated production requirements | |||||
| The mold adopts LKM standard, a general plastic mold standard in China; harden the cavity and core with S136 to improve the anti-wearing and anti-corrosion performance to adapt to complicated working environment without special protection | |||||
| Mold size (mm) | Mold weight (kg) | Part size (mm) | Part weight (g) | ||||
| L: 400 | H: 361 | 362.63 | L: 70.43 | H: 3.28 | 1.78 | ||
| W: 400 | W: 20.38 | ||||||
| ☆ Tool life up to 500k shots | |||
| ☆ Mold surface polished with VDI24# (Makino) | |||
| Injection/runner type | Cold runner | ||

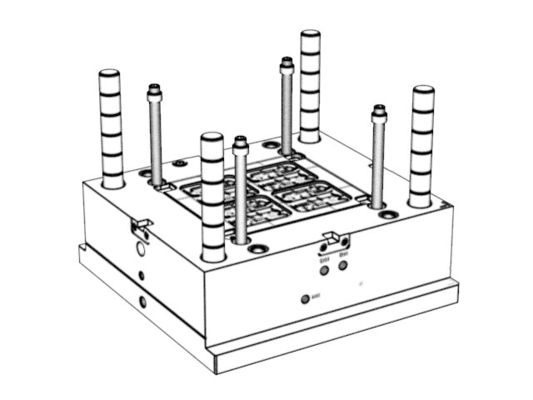

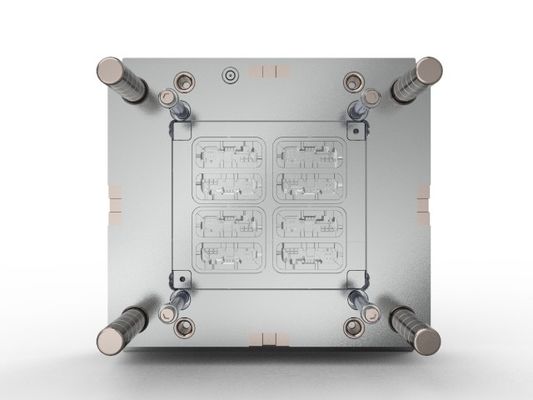

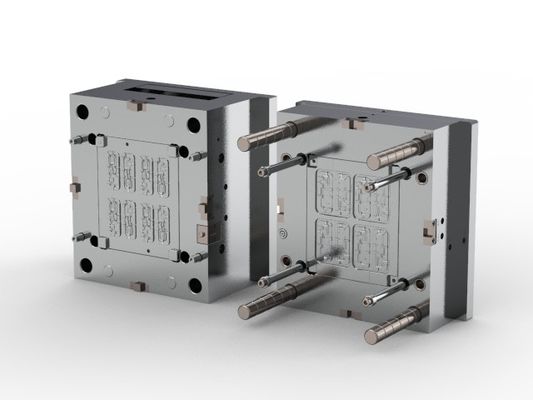

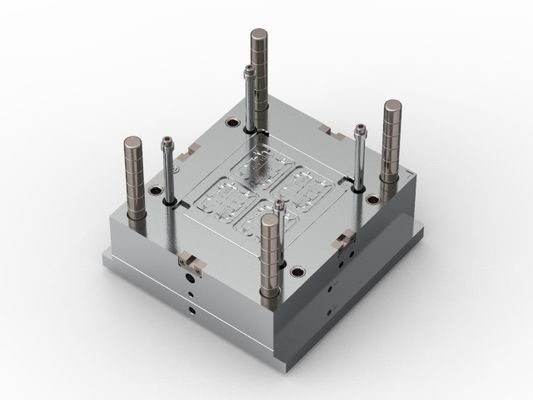

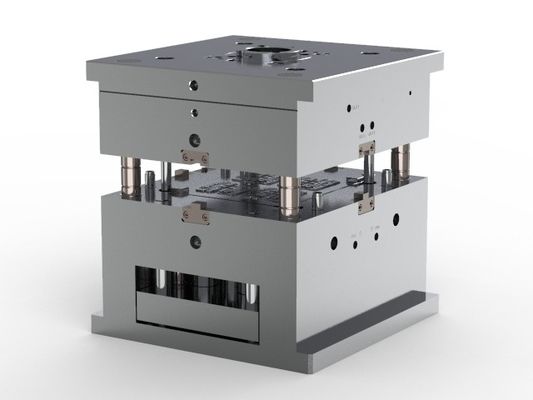

Display diagram
