OEM/ODM : Custom injection mould / Top cover trim (1*4) No.24668
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320.000 X 300.000 X 311.000mm | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 185.36KG | Mould Life | 500，000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0/2D:CAD |
| Runner | Hot Sprue/cold Runner. | Product Material | PC+ABS |
| Lifter | 4 | Runner System | Cold Runner |
| Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate | ||
| High Light | 110T Multi Cavity Injection Mold,PC ABS Multi Cavity Injection Mold,Cold runner Injection Mold 500k Shots |
||
Product Description
Top cover trim (1*4)
No.24668
Standard: LKM
| Mold size | Mold net weight | ||
| L | W | H | 185.36kg |
| 320mm | 300mm | 311mm | |
| Type | Two-plates mold (no stripper plate, requiring manual degating) | ||
|
The mold with sub gate concealed on the side, without affecting part appearance and easy for degating |
|||
|
The mold is made of high quality steel billet, harden the cavity and core with S136 to improve the anti-wearing and anti-corrosion performance and prolong the tool life; mold surface goes through high gloss treatment to effectively reduce molding resistance and cavity pressure loss |
|||

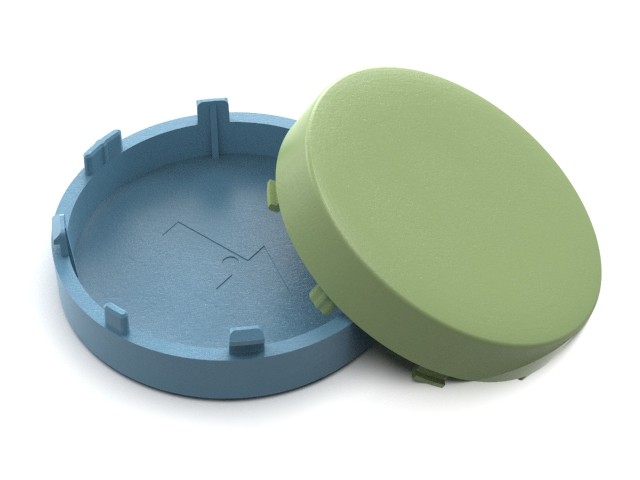

| Part | Size | ￠42x11mm | |
| Weight | 5g | ||
| Lifter | 4 | ||
| Injection/runner type | Cold runner |

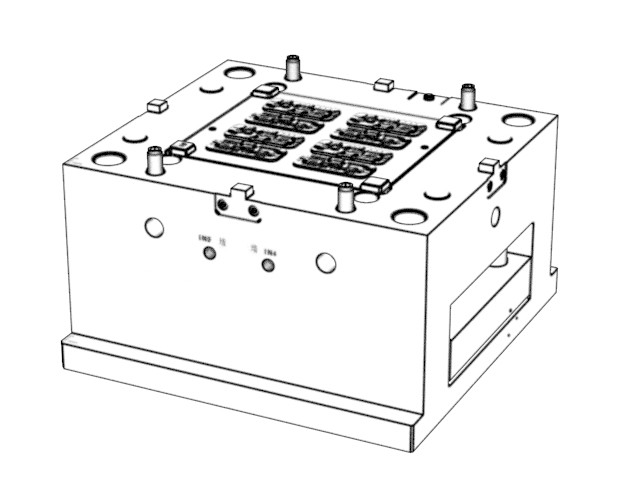

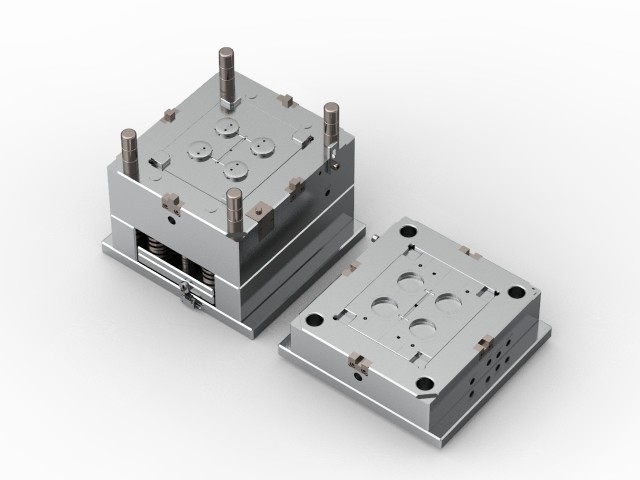

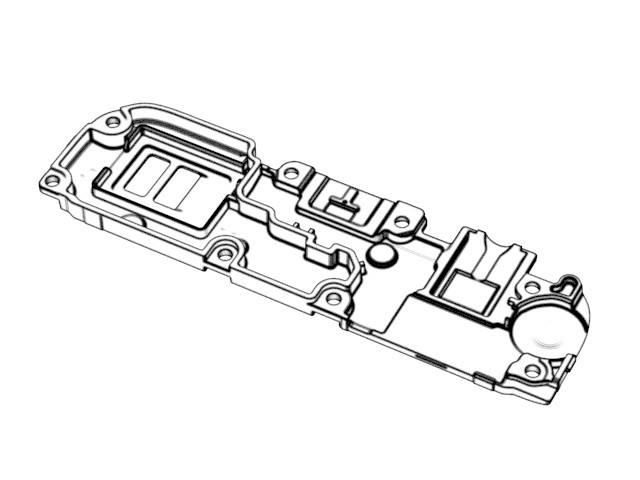

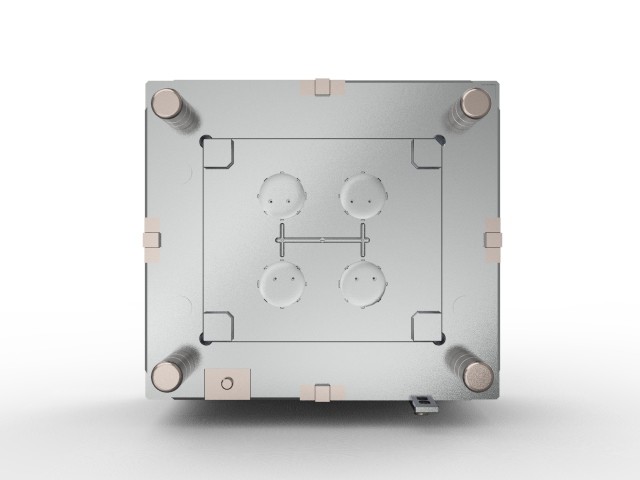

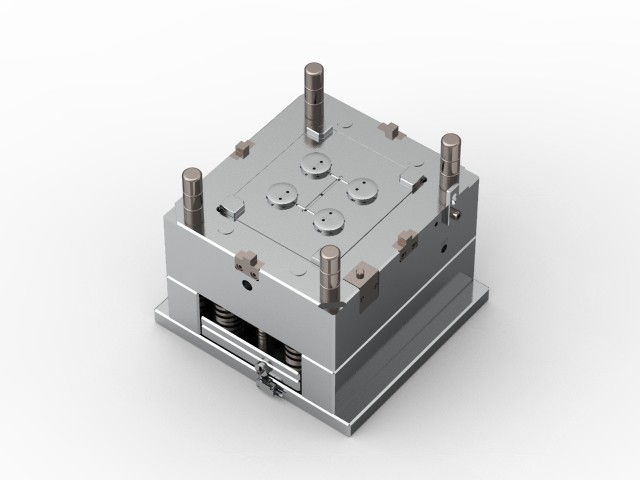

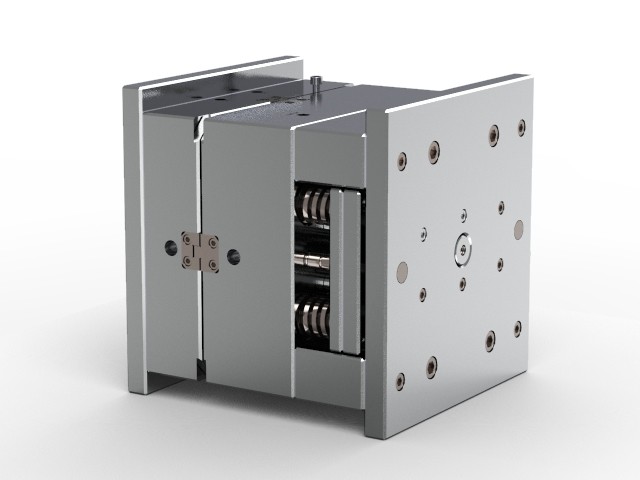

Display diagram
