OEM/ODM：Custom electronic enclosures mold / Transparent top cover trim (1*4) No.24668
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Lifter | Size | 320.000 X 300.000 X 311.000(mm) |
|---|---|---|---|
| IMM Tonnage | 110(T) | Mold Weight | 185.36(KG) |
| Type | Two-plates Mold | Injection/runner Type | Cold Runner |
| Standard | LKM | Part Material | PC+ABS |
| Part Size | ￠42x11mm | Part Weight | 5g |
| Mold Type | Custom Electronic Enclosures Mold | ||
| High Light | Cold Runner Medical Device Plastic Injection Molding,4 Lifter Medical Device Plastic Injection Molding,110T Cold Runner Injection Molding |
||
Product Description

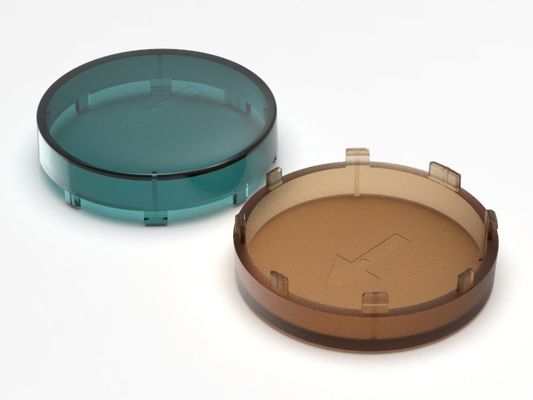

Transparent top cover trim (1*4)
No.24668
| Mold size | Standard | |
| L | W | LKM |
| 320mm | 300mm | |
| H | Type | |
| 311mm | Two-plates mold | |
| Part material | PC+ABS |
| Part size | ￠42x11mm |
| Part weight | 5g |
| Tool life up to 500k shots | |||
| Gate type | Sub gate | ||
|
Harden the cavity and core with S136 to improve the hardness (up to 48-54 HRC), polishability, anti-wearing and anti-corrosion performance and prolong the tool life; mold surface goes through high gloss treatment to effectively reduce cavity pressure loss, cavity damage and prolong the tool life |
|||
Injection/runner type: cold runner

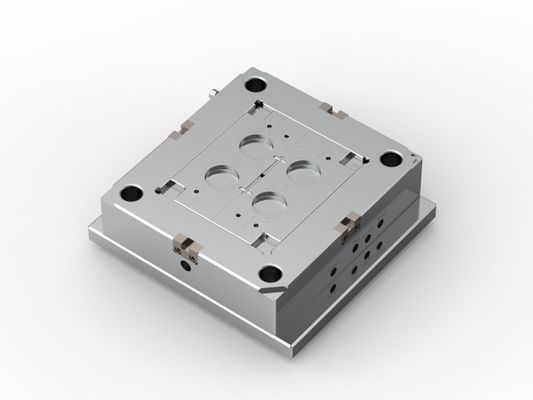

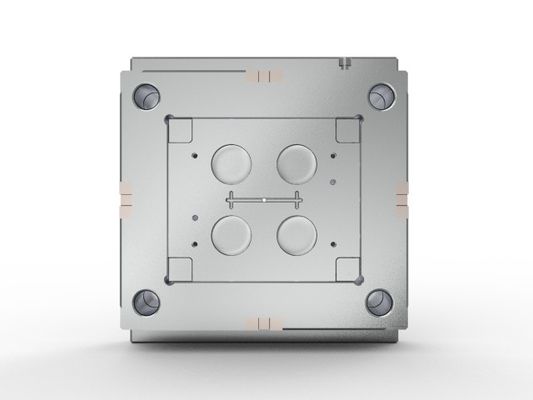

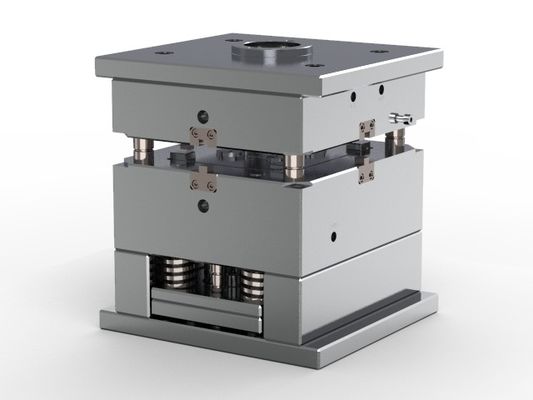

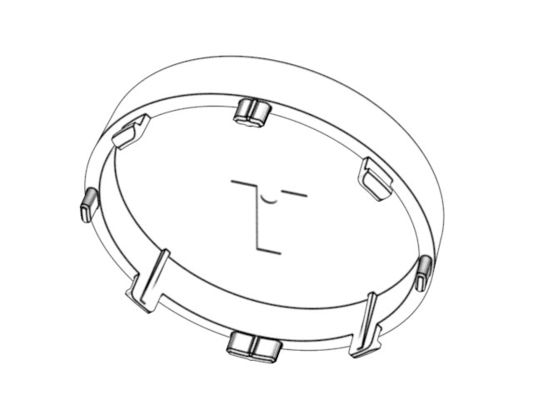

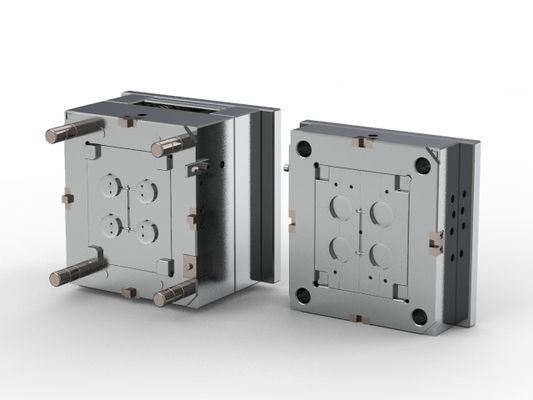

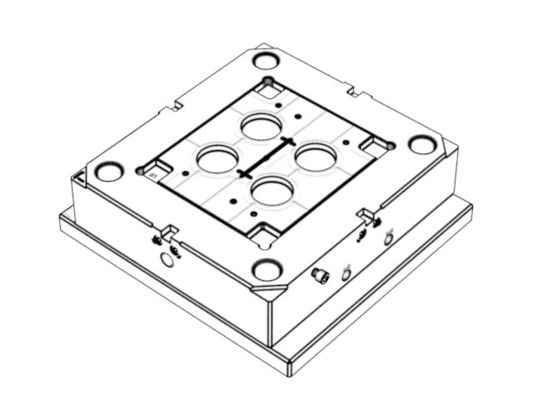

Display diagram
