OEM/ODM：Custom Electronic Enclosures / Transparent top cover bracket (1*2) No.24669
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320.000 X 400.000 X 335.970mm | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 264.62kg | Mould Life | ≥500000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0, 2D:CAD |
| Injection/runner Type | Cold Runner | Surface Finish | VDI21# |
| Lifter | 3 | Injection Parts | PC+ABS |
| Highlight | 130T Core And Cavity Injection Molding,LKM Core And Cavity Injection Molding,500k Shots Cold runner Injection Molding |
||
Product Description

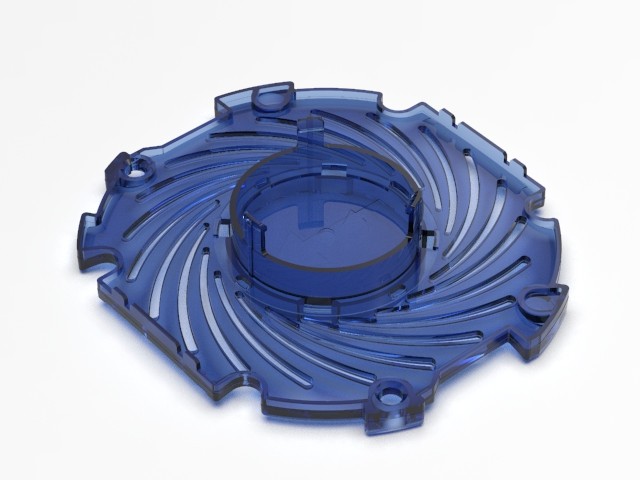

Transparent top cover bracket (1*2)
No.24669
| Mold size (mm) | Standard: LKM | ||||
| L | 320 | W | 400 | H | 335.97 |
|
|
||||||

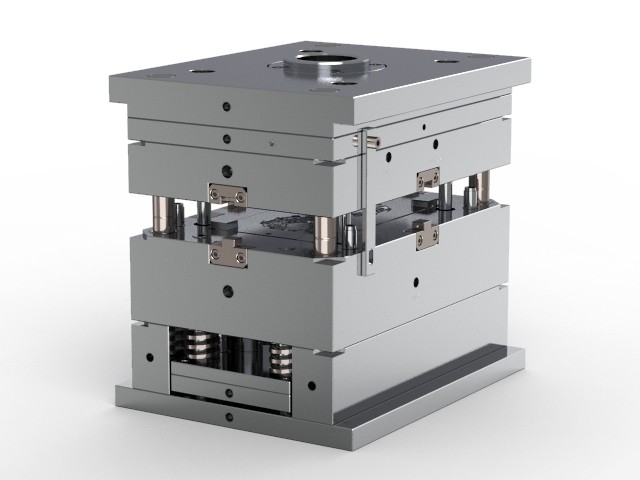

| This is a three-plates mold with pin point gate, self-degating; minimized gate marks ensure aesthetic part appearance; harden the cavity and core with S136 and surface polished with VDI21# to improve the anti-wearing and anti-corrosion performance, so that it can adapt to complicated environment and meet automated production requirements | |||||
Tool life up to 500K shots
| Part material | Part size (mm) | Part net weight (g) | |||
| PC+ABS | L | 90.9 | H | 19.9 | 14 |
| W | 81.2 | ||||

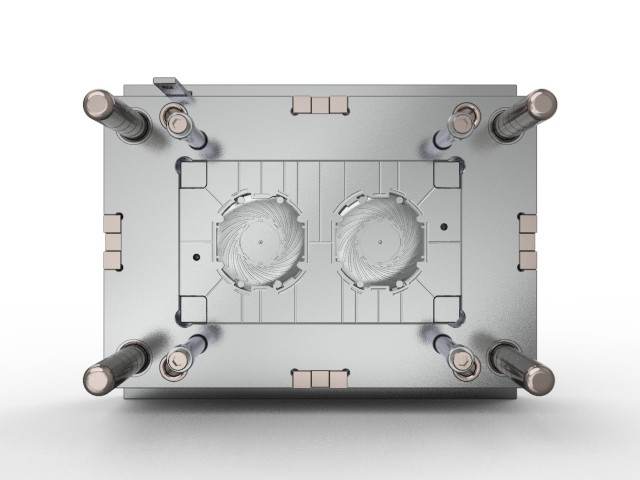

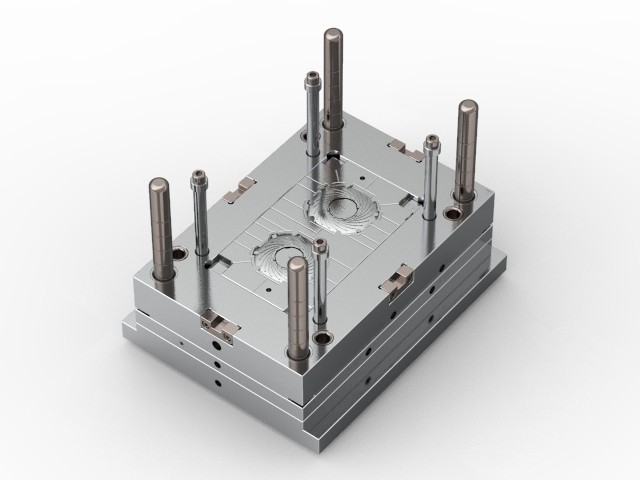

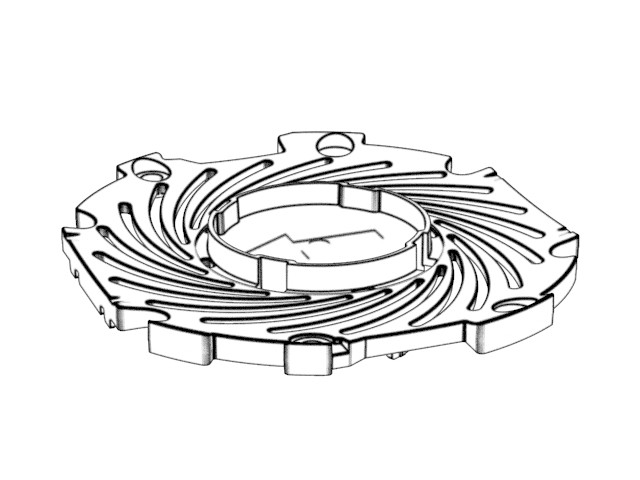

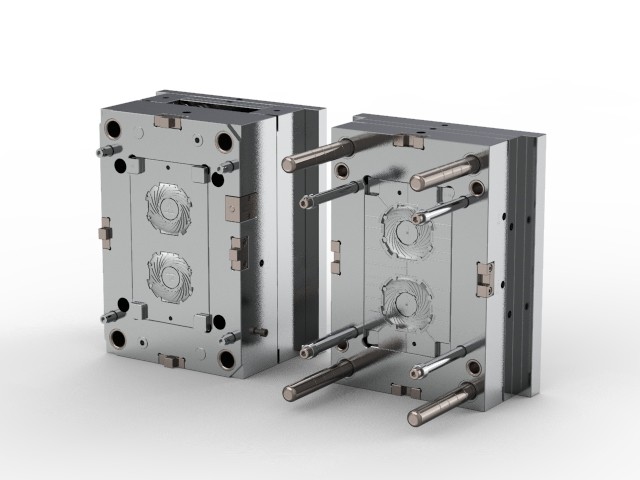

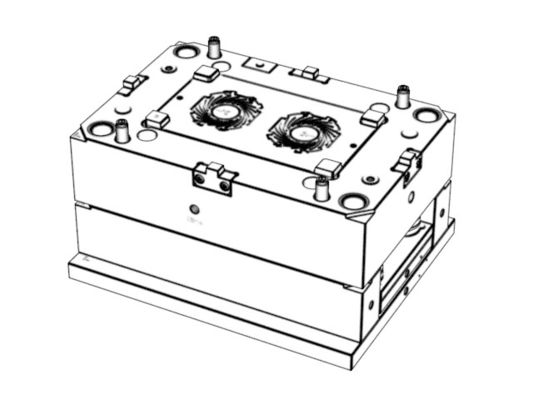

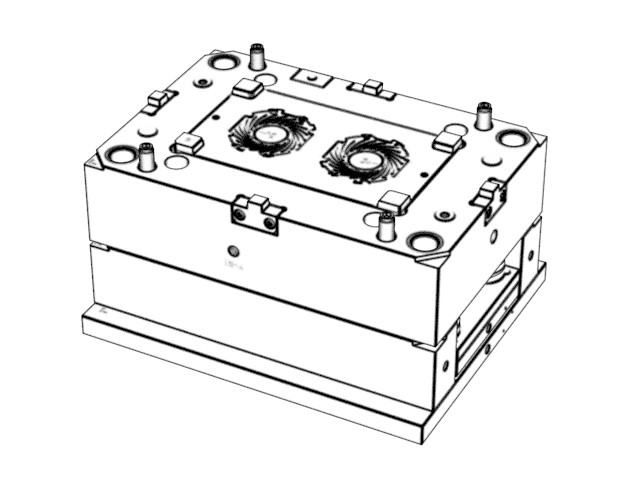

Display diagram
