OEM / ODM ：Household Appliance Molds / Middle housing (1*1) No.24670-A
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 760.000 X 660.000 X 750.100(mm) | IMM Tonnage | 400(T) |
|---|---|---|---|
| Mold Weight | 2269.06KG | Part Material | PC+ABS |
| Part Weight | 7 | Part Size | 100.02 X 100.02 X 185.70mm |
| Slide | 4 | Lifter | 4 |
| Mold Type | Household Appliance Molds | Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate |
| Mold Maker | Chitwing |
Product Description

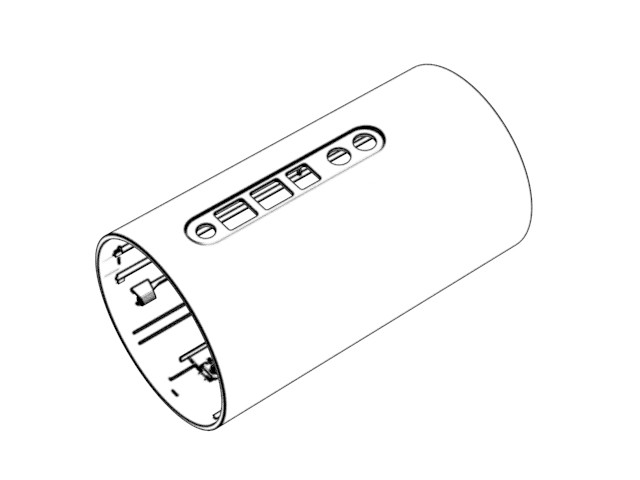

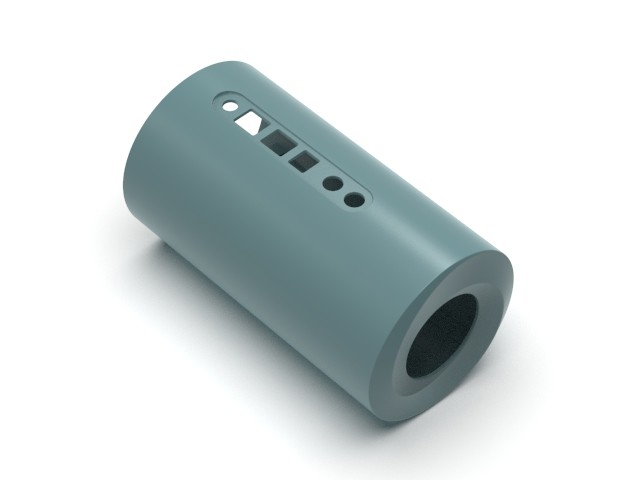

Middle housing (1*1)
No.24670-A
Standard: LKM
|
☆ [Mold size]:760X 660X 750mm |
☆ [Part size]:100.02 X 100.02 X 185.70mm |
||||
Two-plates mold with sub gate, self-degating
| Injection/runner type | |
| Cold runner | |
| Surface finish | |
| Polish to 800# sandpaper and textured |
| Slide | Lifter |
| 4 | 4 |
Fit 400T machine

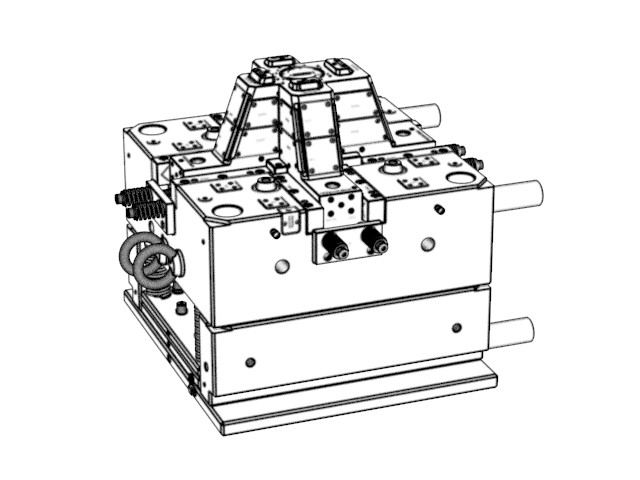

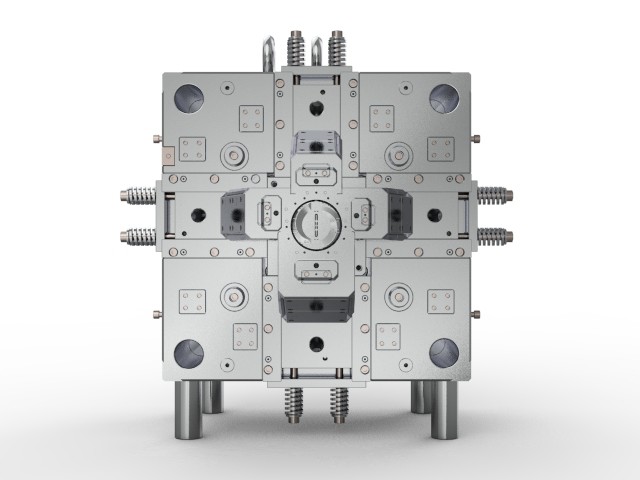

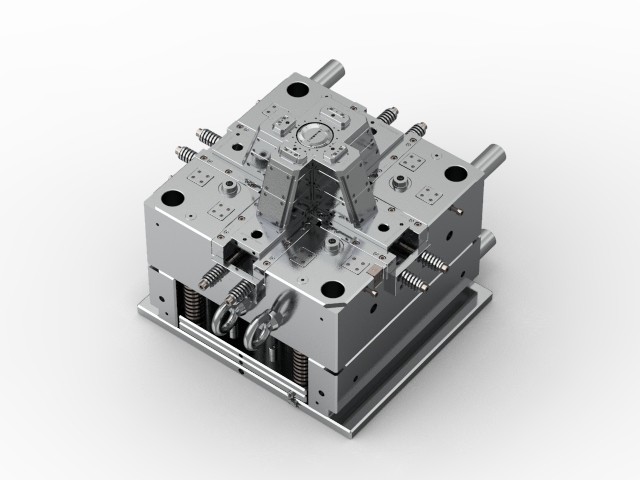

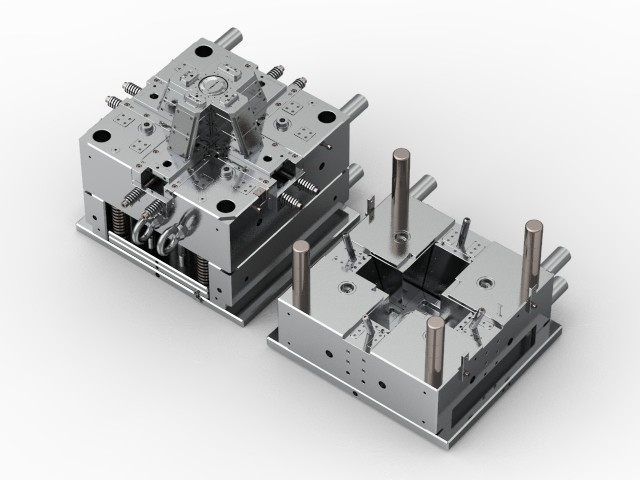

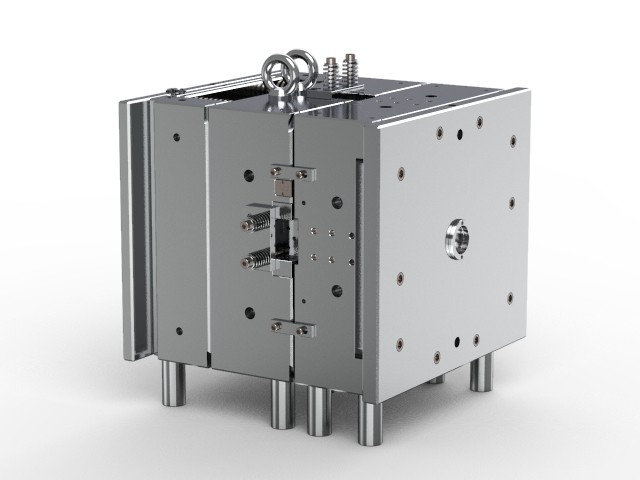

Display diagram
