OEM / ODM ：Electronic Enclosures / Transparent middle housing (1*1) No.24670-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slide& 4 Lifter | Size | 760.000 X 660.000 X 750.100mm |
|---|---|---|---|
| IMM Tonnage | 400T | Mold Weight | 2269.06KG |
| Standard | LKM | Surface Finish | Polish To 800# Sandpaper And Textured |
| Steel Of Cavity And Core | Harden With S136 | Mold Runner | Hot Sprue Cold Runner |
Product Description

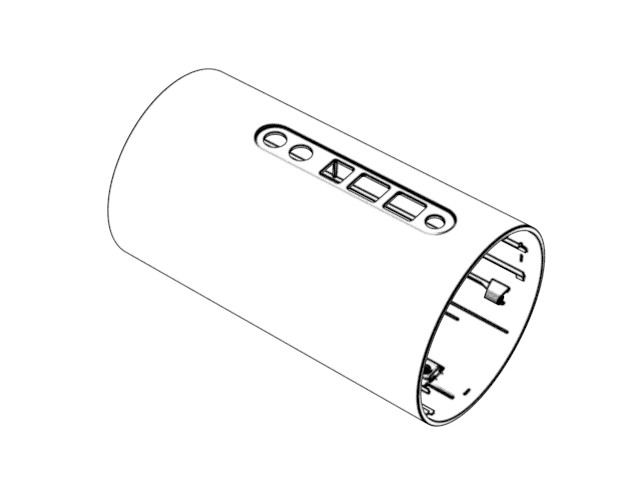

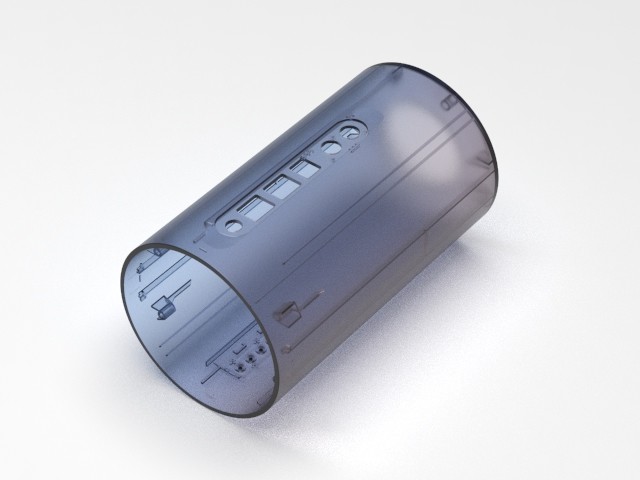

Transparent middle housing (1*1)
No.24670-B
| Standard | Mold size | Slide | Lifter | Cold runner | |||
| LKM | L: 760mm | W: 660mm | H: 750mm | 4 | 4 | ||
| Steel of cavity and core | Harden with S136 | Surface finish |
Polish to 800# sandpaper and textured |
||||
| Part size | ||
| L: 100.02mm | W: 100.02mm | H: 185.7mm |
| Mold net weight | Part net weight |
| 2269.06KG | 191g |
| This is a two-plates mold with sub gate, with fast filling, low pressure and good feeding capacity, self-degating; fit 400T machine, tool life up to 500k shots | ||||||

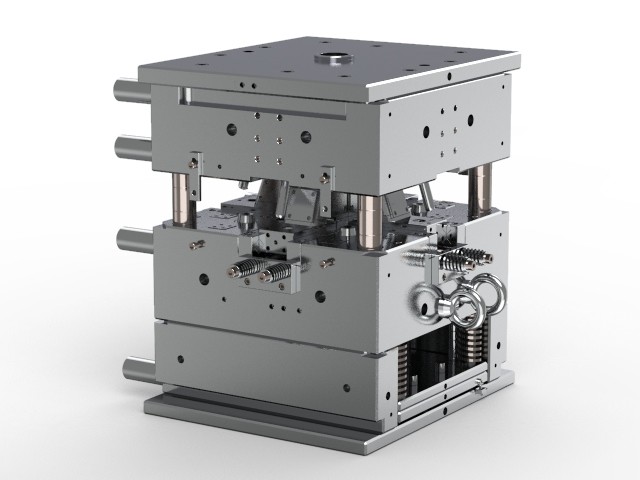

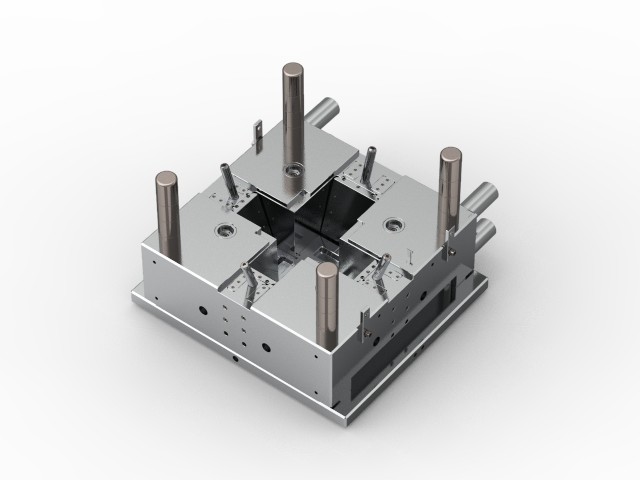

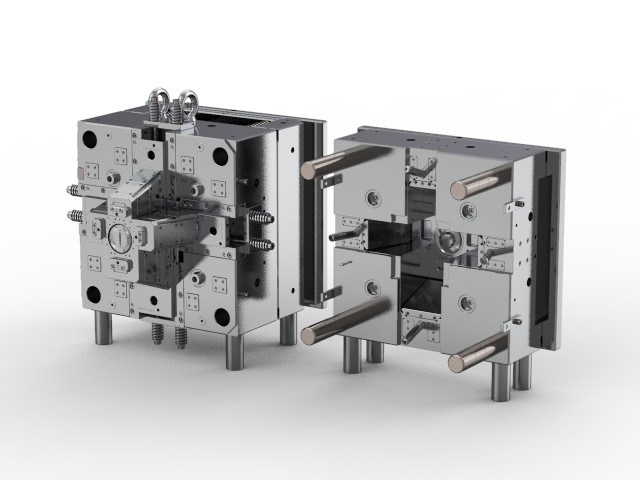

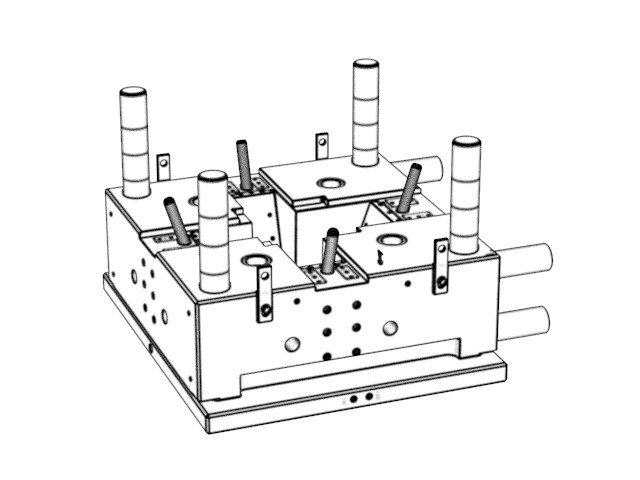

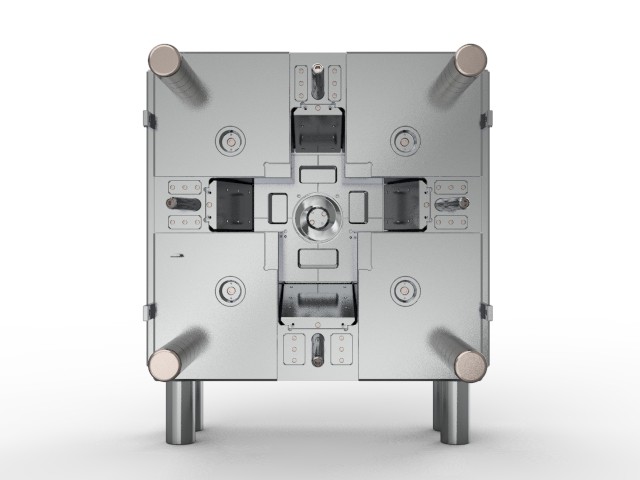

Display diagram
