Button (1*4) / Cold runner / Three-plates mold No.24671
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 280.000 X 270.000 X 295.400（mm） | IMM Tonnage | 110（T） |
|---|---|---|---|
| Mold Weight | 132.88（KG） | Mould Life | ≥500000 Shots |
| Mould Base | LKM | Design Software | <3D:UG 4.0>/ <2D:CAD> |
| Runner | Cold Runner | Gate | Pin Point Gate |
| Part Material | PC+ABS | Part Net Weight (g) | 0.7 |
| High Light | PC Multi Cavity Injection Mold,ABS Multi Cavity Injection Mold,110T Injection Mold Cold Runner |
||
Product Description

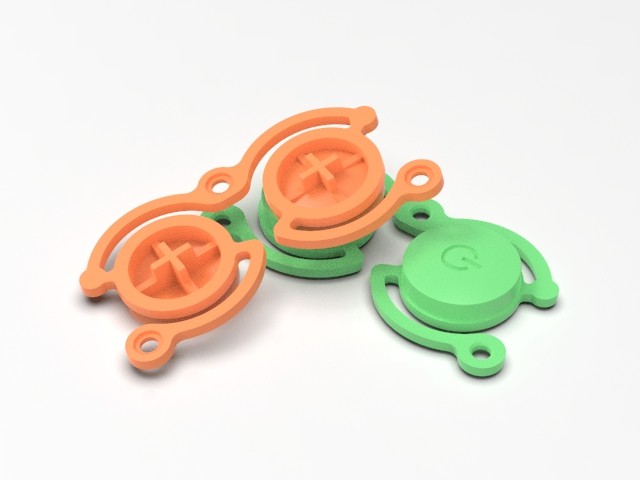

Button (1*4)
No.24671
Three-plates mold, self-degating,
meet automated production requirements
| Standard | Gate | Injection/runner type | Surface finish | IMM tonnage | |||||
| LKM | Pin point gate | Cold runner | VDI27# | 110T |
| Mold size (mm) | Steel of cavity | Steel of core | Mold net weight (kg) | ||||
| 280*270*295.4 | Harden with S136 | 132.88 | |||||
| Part size (mm) | Part material | Part net weight (g) | |||||
| 15.7*3.55*31.02 | PC+ABS | 0.7 | |||||
| Design | 3D:UG 4.0 | |
| 2D:CAD | ||

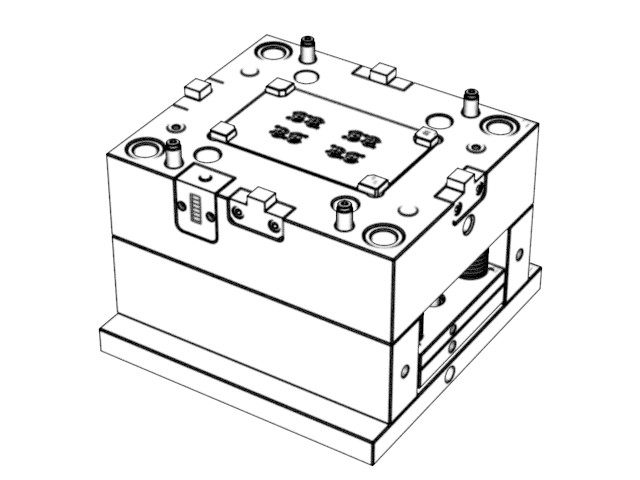

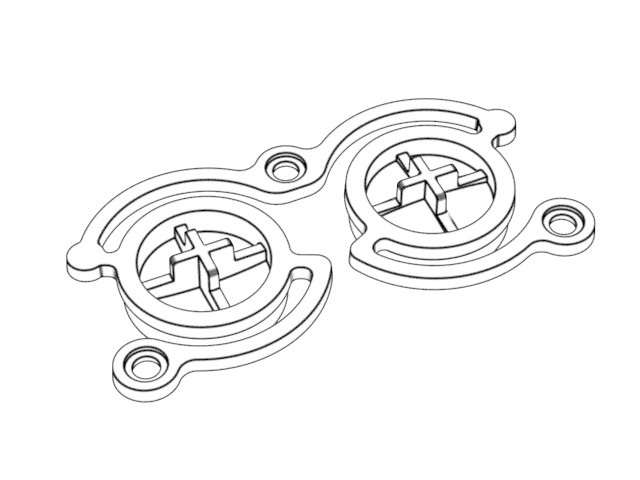

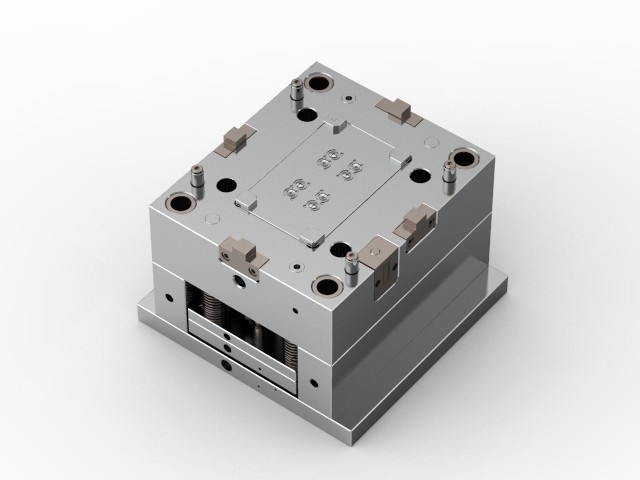

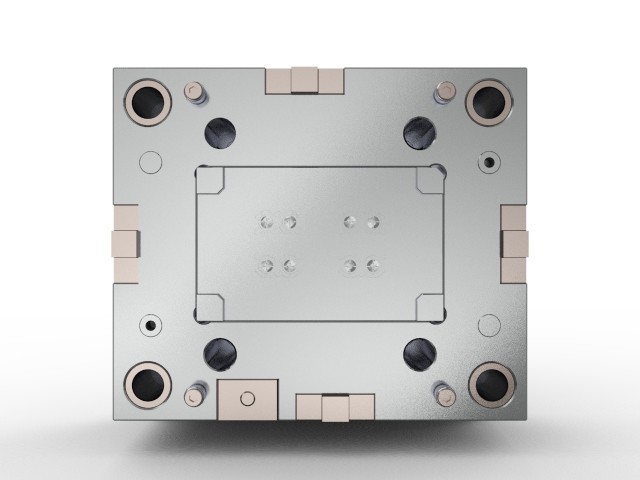

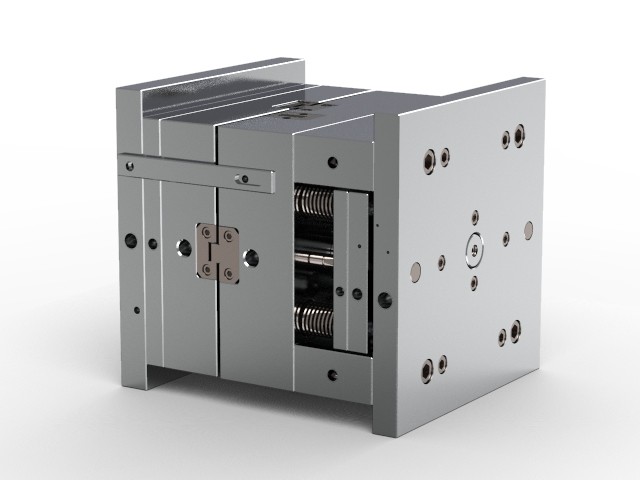

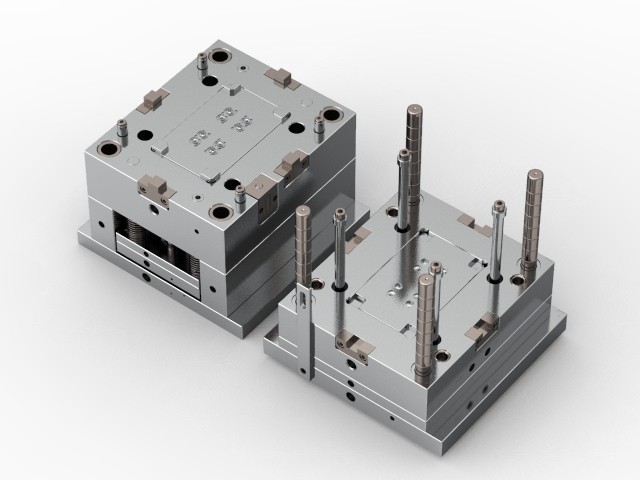

Display diagram
