Transparent button (1*4) / Cold runner / Three-plates mold No.24671
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 280.000 X 270.000 X 295.400mm | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 132.88KG | Standard | LKM |
| Gate | Pin Point Gate | Injection/runner Type | Cold Runner |
| Surface Finish | VDI27# | Part Net Weight | 0.7g |
| Part Material | PC+ABS | ||
| High Light | LKM Multi Cavity Mold,500k Shots Multi Cavity Mold,Transparent Button Multi Cavity Mold |
||
Product Description

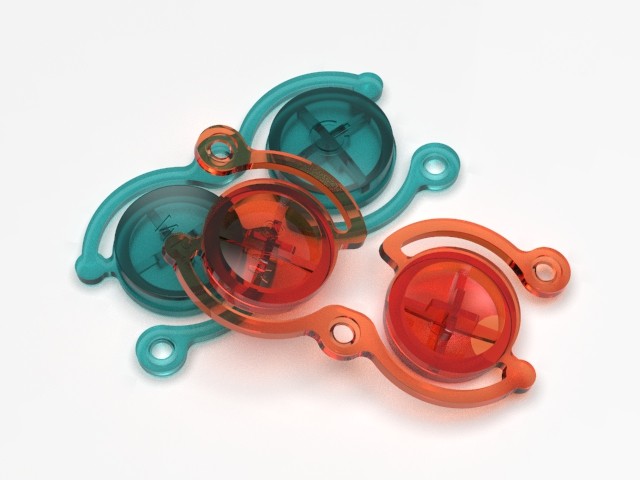

Transparent button (1*4)
No.24671
| LKM standard | Cold runner | ||||
|

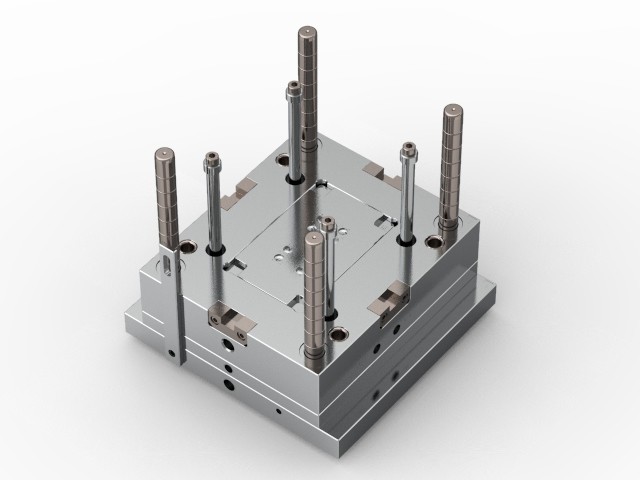

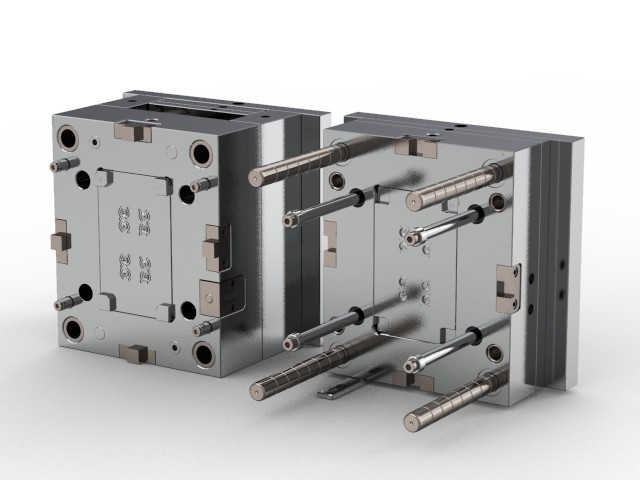

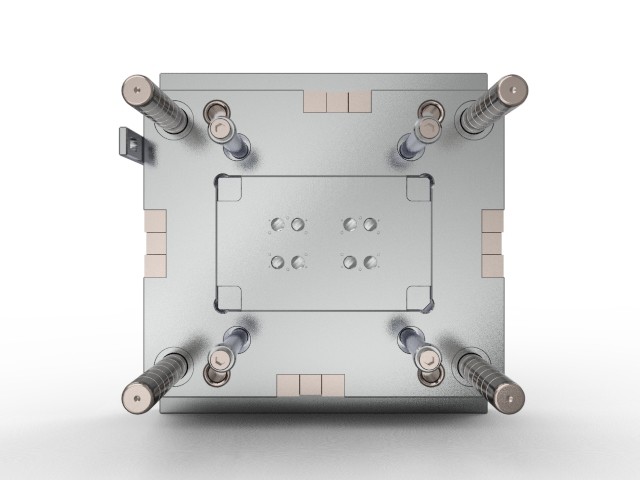

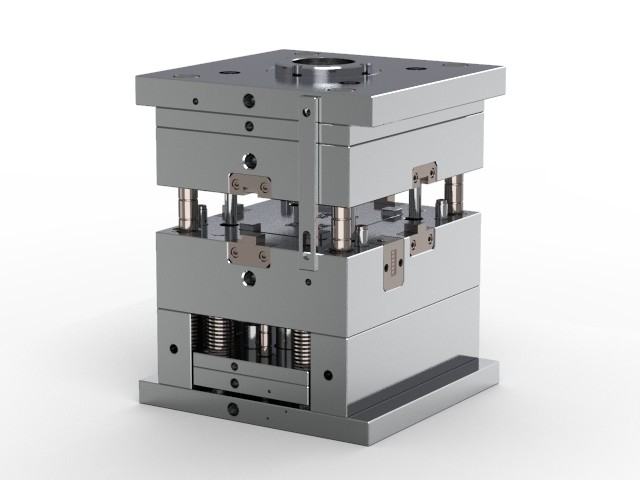

This is a three-plates mold with pin point gate, self-degating; minimized gate marks ensure aesthetic part appearance |
|||||
Cold runner, with some cold slug, low mold cost; fit 110T machine

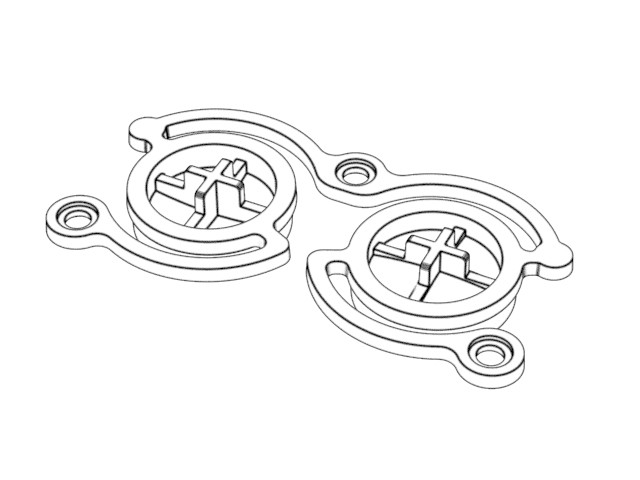

| Mold size | Part size | ||||
| 280*270*295.4mm | 15.7*3.55*31.02mm | ||||
| Mold net weight | Part net weight | ||||
| 132.88kg | 0.7g |
| Mold surface EDM with VDI27# and harden the cavity and core with S136 to improve the hardness and anti-corrosion performance, so that no special protection is required for use or storage in humid environment Tool life up to 500k shots | |||||
Part material: PC+ABS

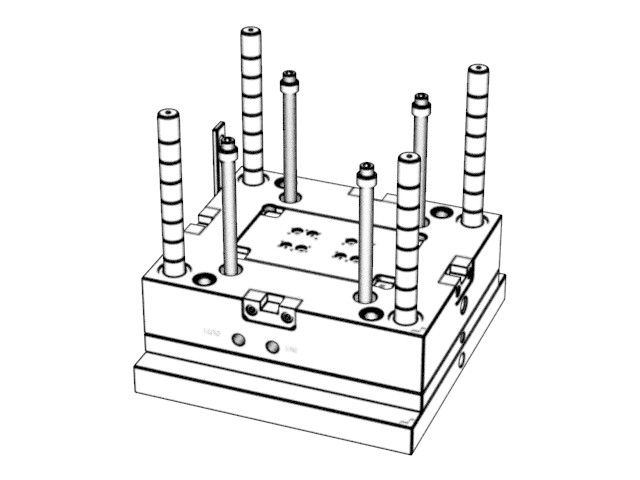

Display diagram
