OEM/ODM ：Custom consumer electronics molds / Top cover bracket (1*1) No.25175
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350*400*436(mm) | IMM Tonnage | 130(T) |
|---|---|---|---|
| Mold Weight | 384.3(KG) | Design Software | 3D:UG 4.0/2D:CAD |
| Mould Base | LKM | Mould Life | ≥500000 Shots |
| Lifter | 6 | Mold Type | Three Plates |
| Gate Type | Pin Point Gate | Part Material | PC+ABS |
| Mold Runner | Hot Sprue Cold Runner | Mold Exporter | Chitwing |
| Formation Method | Injection Moulding | ||
| High Light | 500000 Shots Single Cavity Injection Mold,Single Cavity Injection Mold,PC ABS Double Color Mould |
||
Product Description

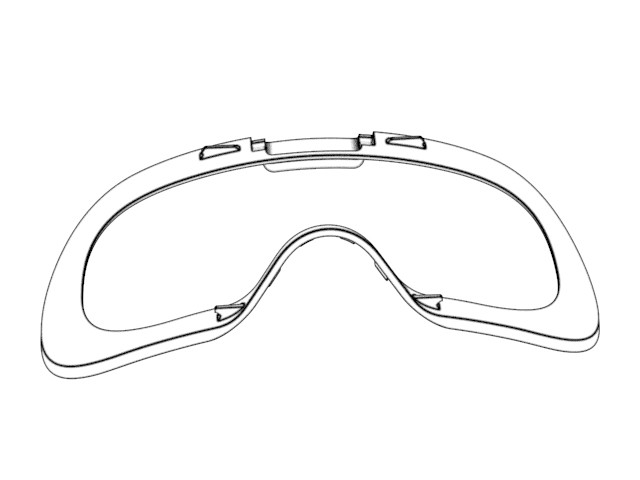

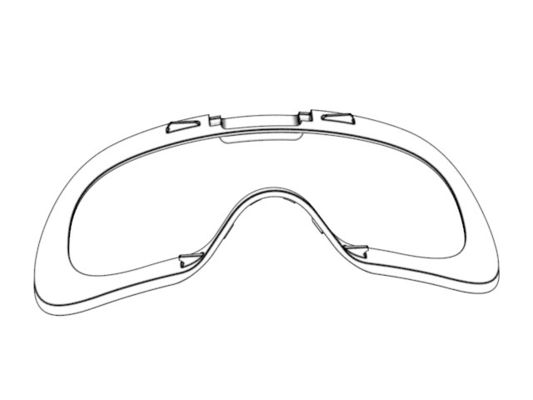

Top cover bracket (1*1)
No.25175
LKM standard

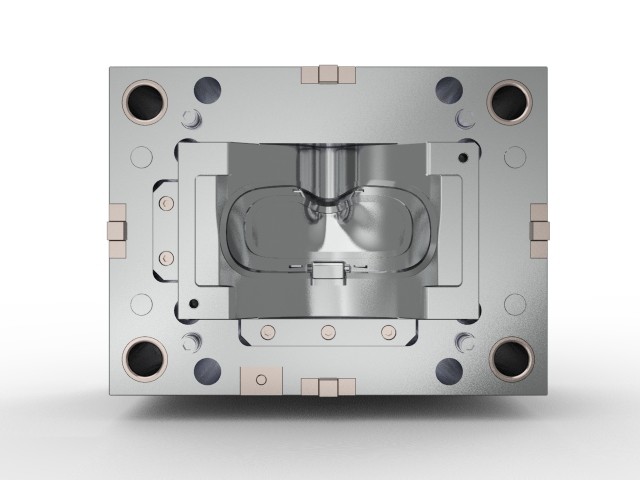

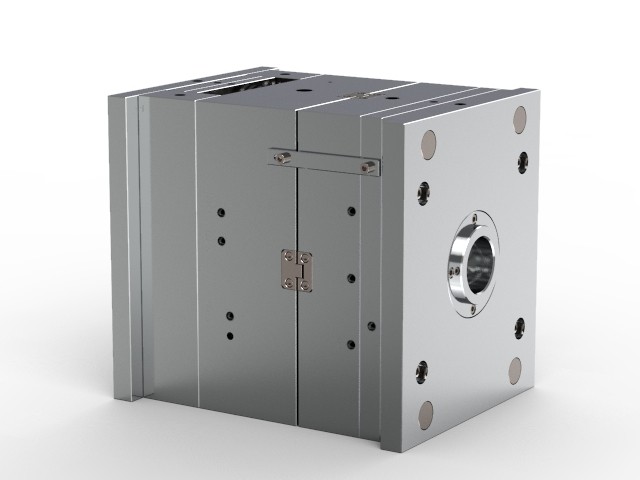

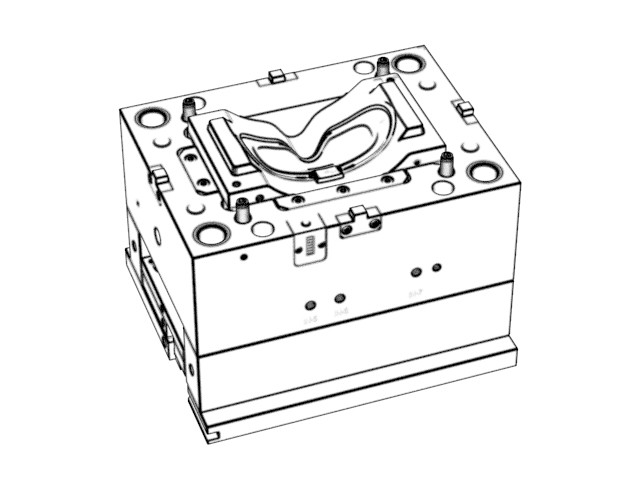

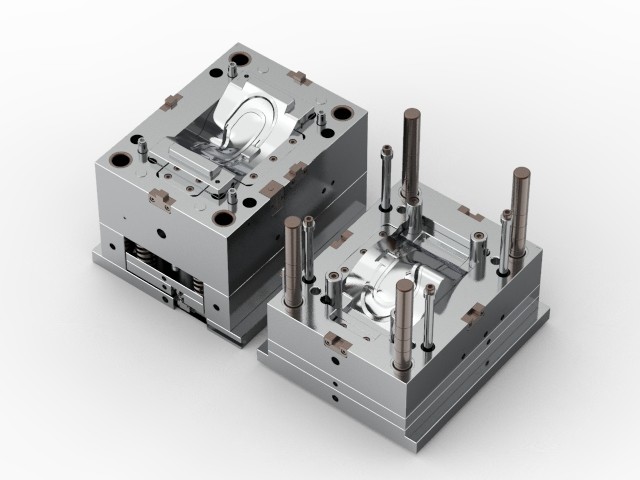

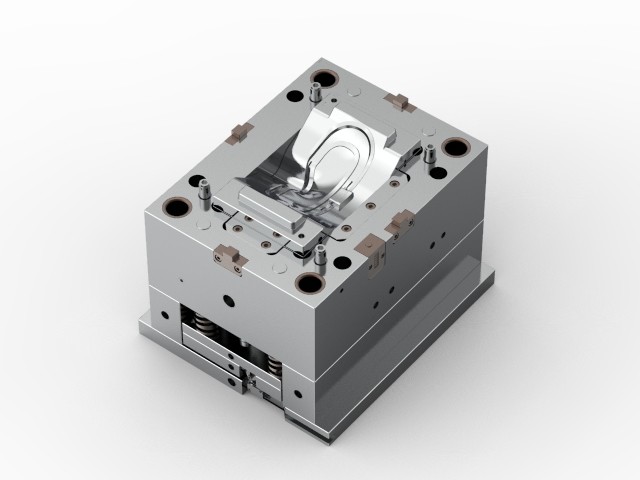

| Mold details | |||||||
| L | 350mm | H | 436mm | Type | Three-plates mold | Cold runner | Lifter |
| W | 400mm | Net weight | 384.3KG | Gate | Pin point gate | 6 | |
|
Harden the cavity and core with S136 to improve the anti-wearing, anti-strain and anti-corrosion performance |
Surface with YS20020 etch, which improves part texture and strength |
||||||
| IMM tonnage: 130T | Tool life: > 500k shots | ||||||

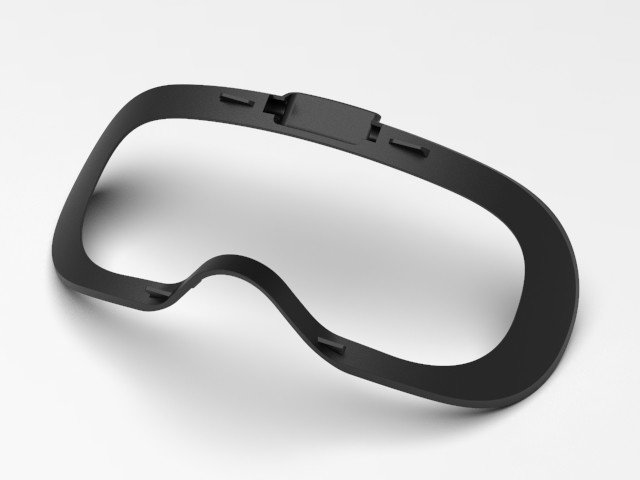

| Part details | |||
| L | 180.9mm | H | 74.5mm |
| W | 80.44mm | Net weight | 20.5g |
| Part material: PC+ABS | |||
Display diagram
