OEM/ODM：Custom steel mold / Transparent top cover bracket (1*1) No.25175
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350*400*436mm | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 384.3KG | Tool Life | 500k Shots |
| Part Material | PC+ABS | Part Net Weight | 20.5g |
| Gate Type | Pin Point Gate | Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate |
| Mold Type | Custom Electronic Enclosures Mold | ||
| High Light | Cold Runner Cavity And Core Injection Molding,ABS Cavity And Core Injection Molding,LKM pc injection mold |
||
Product Description

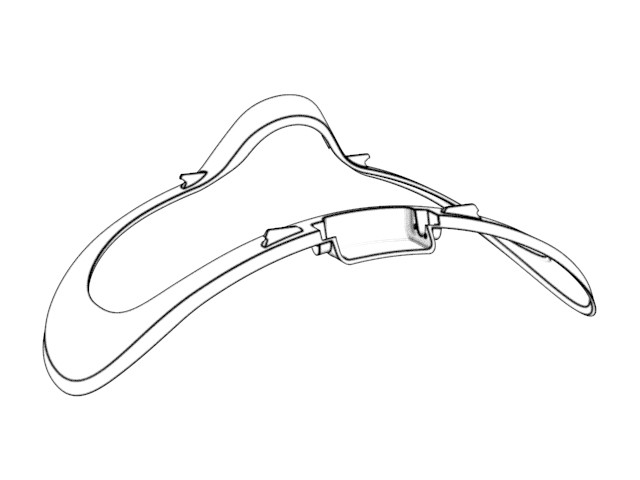

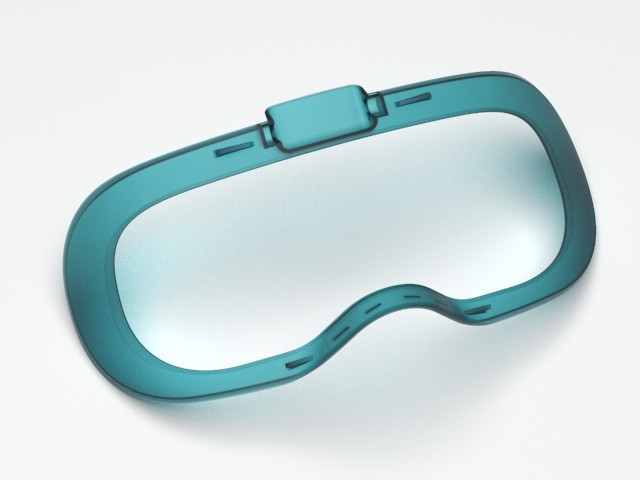

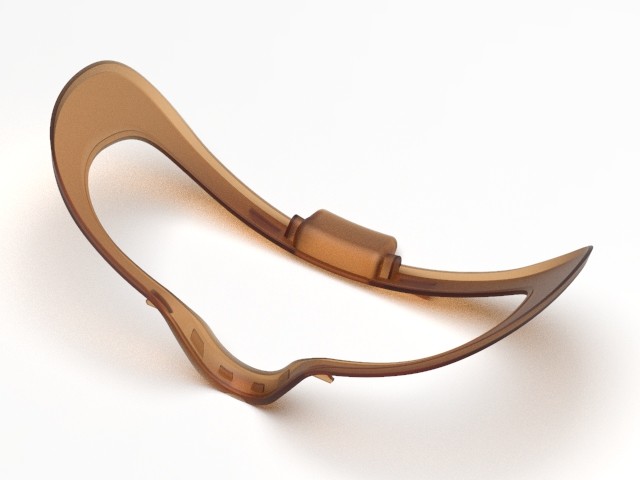

Transparent top cover bracket (1*1)
No.25175

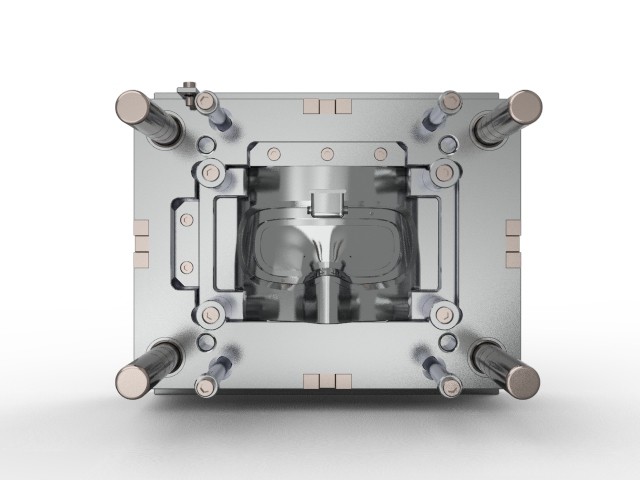

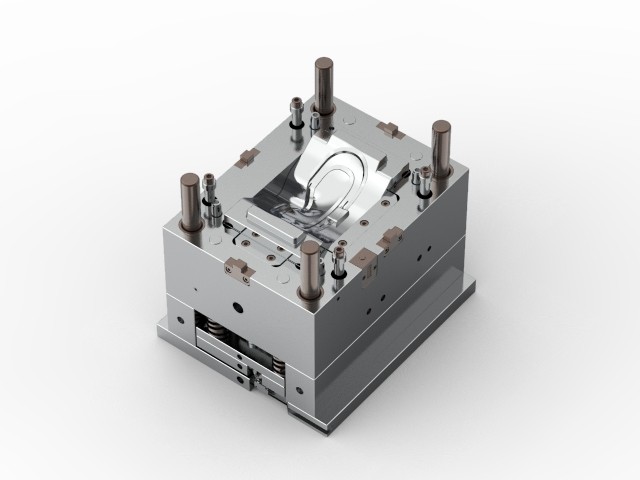

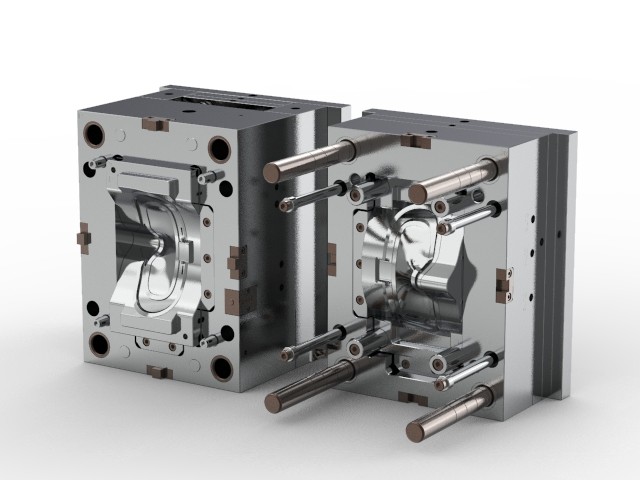

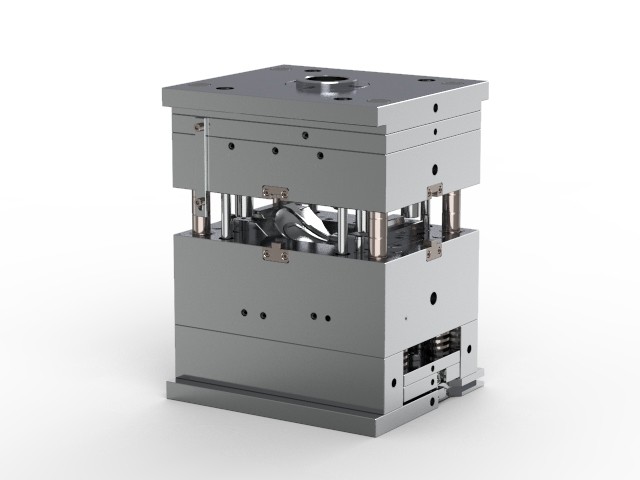

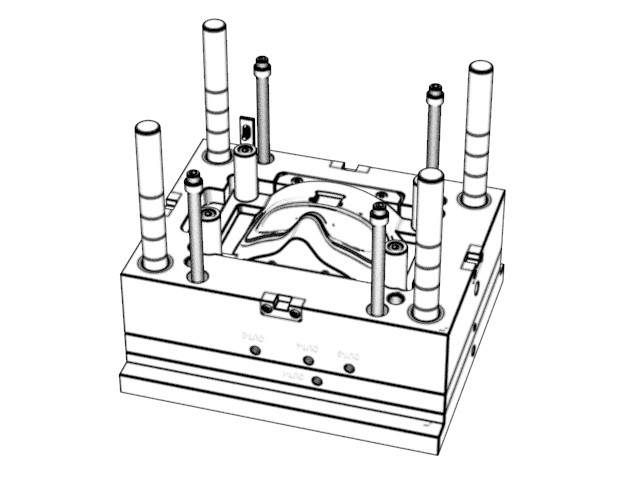

Mold size: 350*400*436mm
Mold net weight: 384.3 kg
| This is a three-plates mold with high quality mold base, LKM standard to meet automated production requirements; pin point gate and self-degating ensures only a small spot on part surface to meet aesthetic requirements; harden the cavity and core with S136 to have good anti-corrosion and anti-strain performance, polishability machinability and size stability, greatly prolong tool life (up to 500k shots) and lower the maintenance cost | |||||
| The mold with cold runner, generating some cold slug; with stable molding quality, uniform mold wall quality, high glossiness, good fitted and stable cavity pressure; molded parts have uniform thickness w/o flow marks | |||||
Part material: PC+ABS
Part net weight: 20.5g
Display diagram
