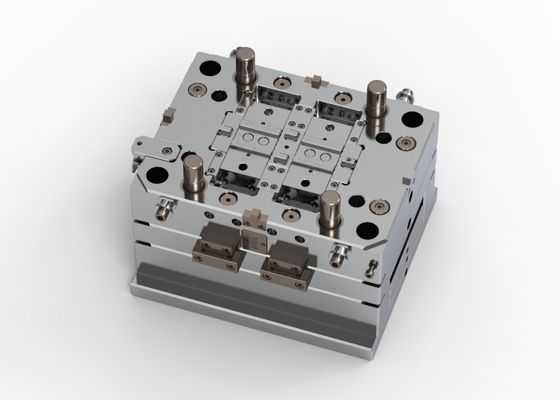

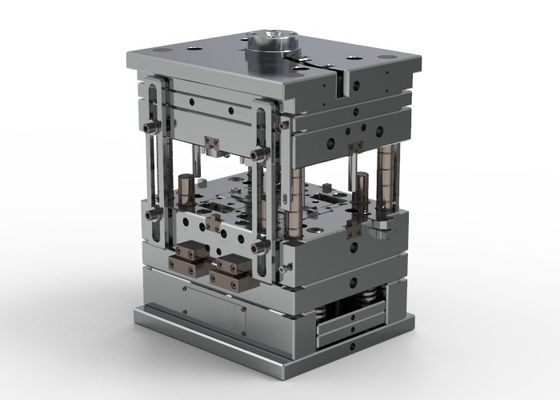

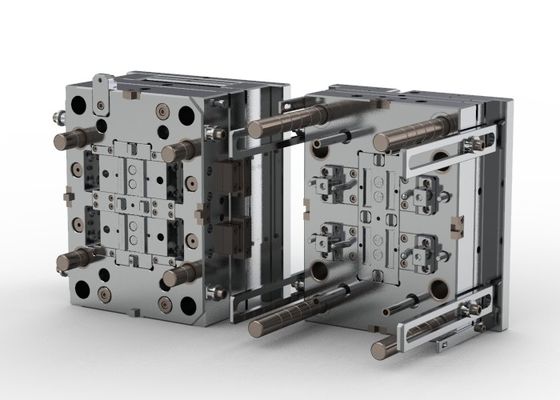

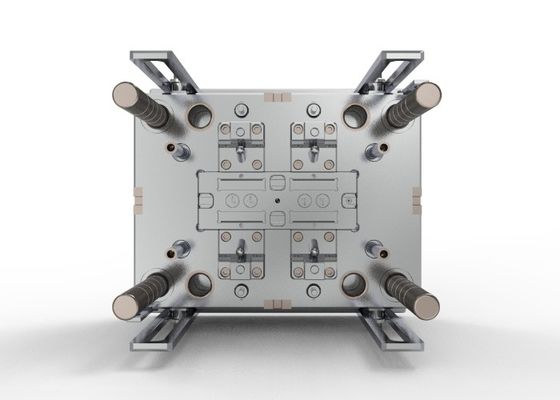

OEM / ODM ： Multi Cavity Injection Mold & Transparent Smart Doorbell PIR HOLDER 1x4 No.23683
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Doorbell |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350 X 400 X 391 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 352KG | Mould Life | 500，000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Hot Runner | Part Weight | 4g |
| Slide | 2 | ||
| High Light | Hot Runner Three Plate Mold,PIR HOLDER Three Plate Mold,1x4 Multi Cavity Injection Mold |
||
Product Description
Transparent Smart
Doorbell: PIR _ HOLDER (1*4)
No.23683
|
|
Size: 350 X 400 X 391mm
(standard mold base P/N: FCI3040. A = 60 B = 80 C = 80)
Features: 2 slides

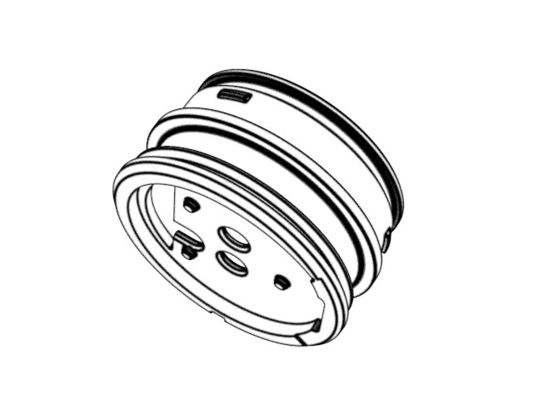

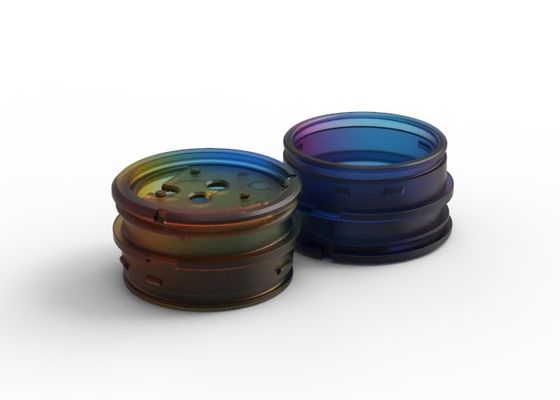

| After forging, cutting and hardening process, the mold surface has high hardness and anti-fatigue performance. The mold good fitted and is easy to assemble. The mold net weight is 352 kg, fits 110T machine. The molded part size is 18.94 * 18.94 * 10.45mm, and the part weight is about 4g. | |||||
| Harden | Surface finish | ||
| Harden the cavity and core with 1*4/S136 | A surface polished to 800# sandpaper | ||
| Part material |
| PC |

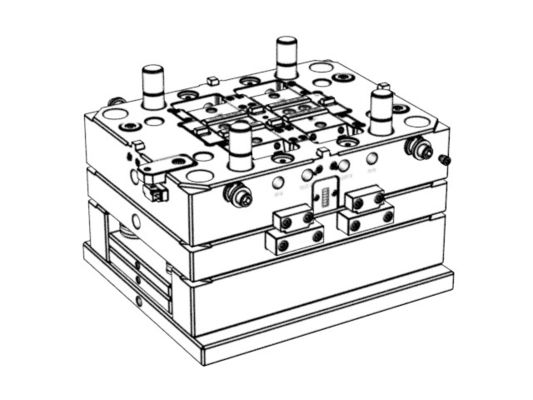

Display diagram
