Transparent Inner Housing 1x1 Cold Runner Three Plate Mold No.19015 And 19016 -B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 640.000 X 541.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 1158KG | Gate | Pin Point Gate |
| Part Material | PC/TPU | Slide | 3 |
| Lifter | 3 | ||
| High Light | Transparent Inner Housing Three Plate Mold,1x1 Three Plate Mold,Pin Point Gate Double Injection Molding |
||
Product Description

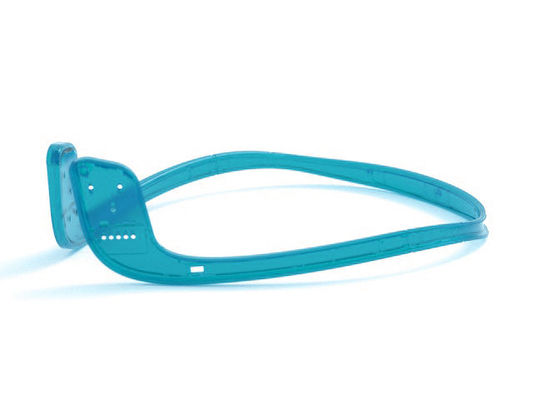

Transparent Inner Housing (1*1)
No.19015 & 19016 -B
☆ Custom mold base P/N: FCI4050.A140B150C130 is adopted
☆ Better meet the design needs of mold

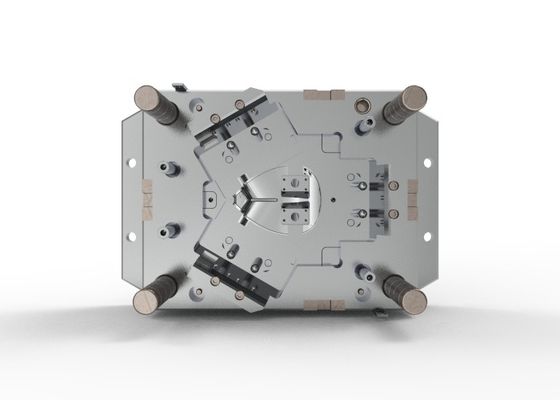

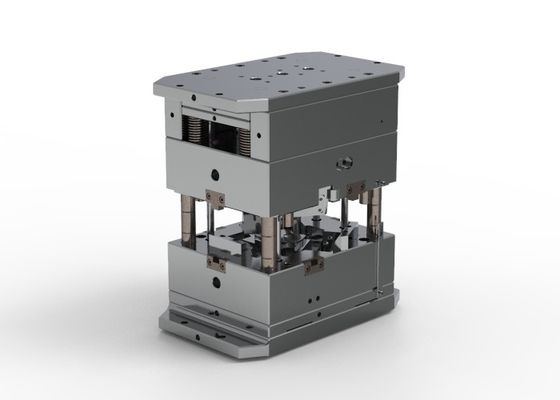

The Chitwing mold, manufactured in Guangdong, China, is a three-plates mold with a mold
standard of LKM. It has a net weight of 1158kg and is designed to be used with an injection
molding machine (IMM) of 180 (T) tonnage. The mold size measures 400mm in length,
640mm in width, and 541mm in height.

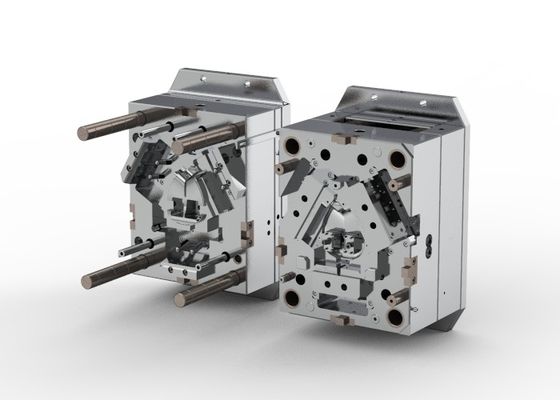

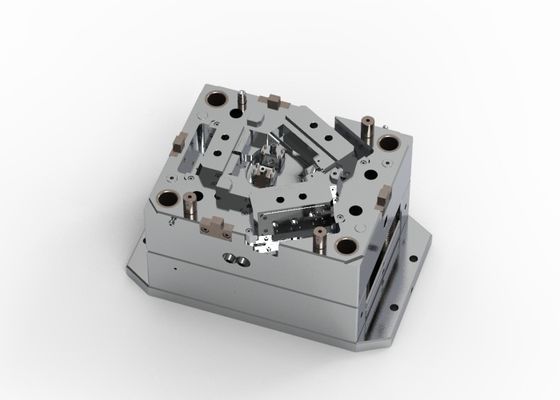

The Chitwing mold, manufactured in Guangdong, China, is a three-plates mold designed for
mass production, focusing on production cost, quality, and cycle time. It incorporates three
slides and three lifters to ensure precise molding. The mold features VDI 18# polishing on
selected surfaces, while the cavity and core are hardened using 1*1/S136 material to achieve
excellent hardness and anti-wear performance. The tool life of the mold can reach up to
500,000 shots.This mold is well-fitted, ensuring no leakage and maintaining stable cavity
pressure. It also facilitates uniform wall thickness in the molded parts. The resulting products
exhibit smooth surfaces, sharp edges, and no burrs. Additionally, the mold enables the creation
of precise threads and consistent thickness throughout the molded parts.
| Injection/runner type | |
| Cold runner |

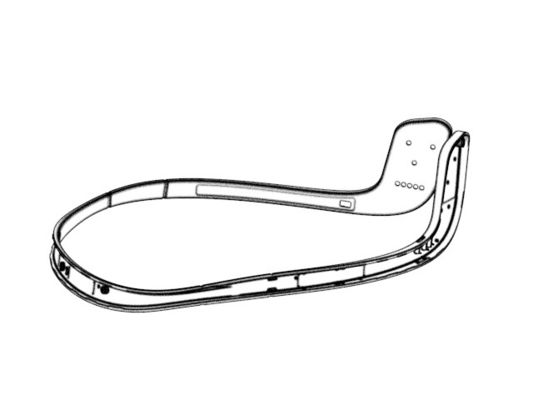

| Part ① Material ② Size ③ Weight | |||||||
| ① PC/TPU | ② 129.44 X 163.28 X 60.35mm | ③ 9.84g | |||||

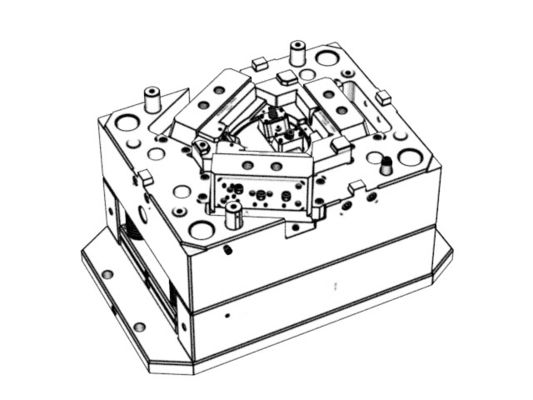

Display diagram
