Transparent Medical Instrument PN-2051 (1*4) / Two-plates mold / Cold runner No.21059-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 93kg | Mold Base | Standard CI2025.507070. |
| Type | Two-plates Mold | Tool Life | 500K Shots |
| Surface Finish | SPI B-2 | Gate | Side Gate |
Product Description
Transparent Medical Instrument
PN-2051 (1*4)
No.21059-B
Mold base: Standard CI2025.507070.

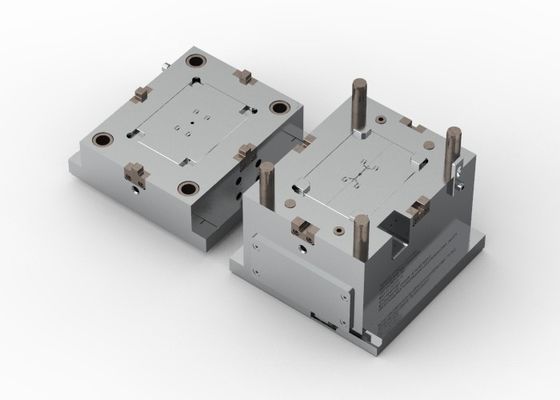

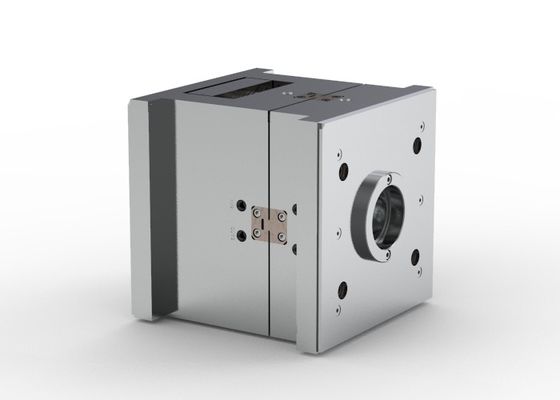

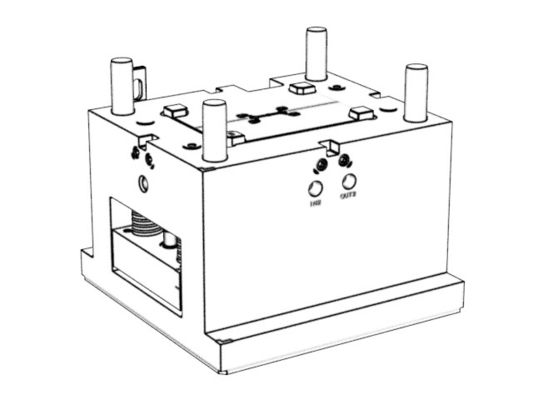

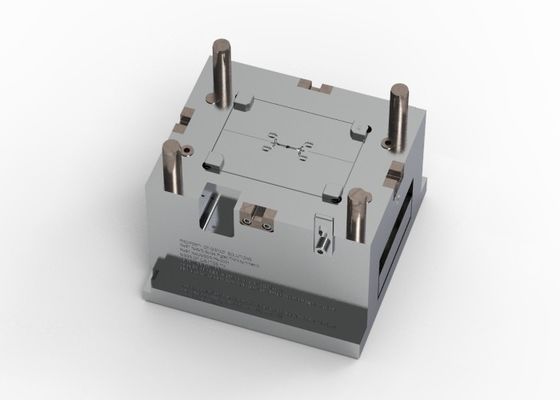

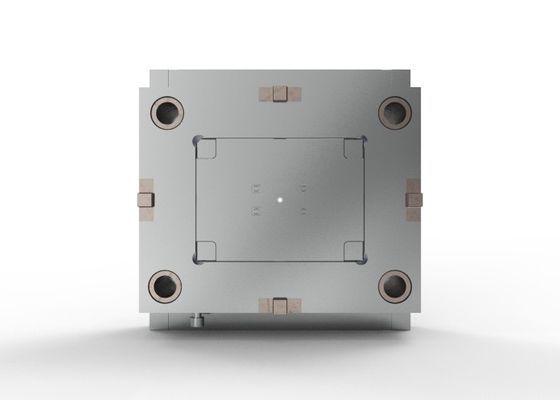

This mold features an LKM mold base and has dimensions of 250mm in height, 250mm in
width, and 251mm in depth. Designed for injection molding with PC, it utilizes a cold runner
system for efficient material flow. The mold cavity and core are made of S136 mold steel,
with an SPI B-2 surface finish for enhanced durability. Equipped with a side gate, the mold
ensures optimal injection performance. With a lifespan of at least 500,000 shots, this mold
offers long-lasting service and reliability.
| Mold net weight | IMM Tonnage | |||
| 93kg | 93kg | |||

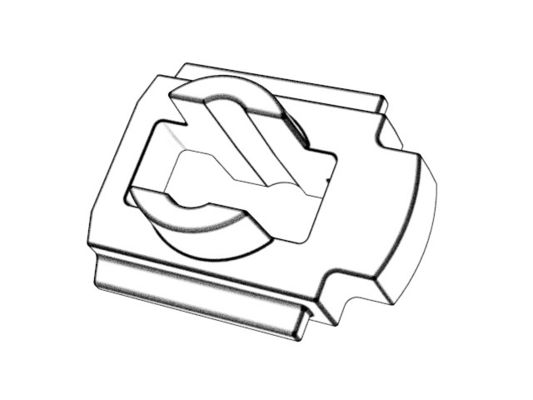

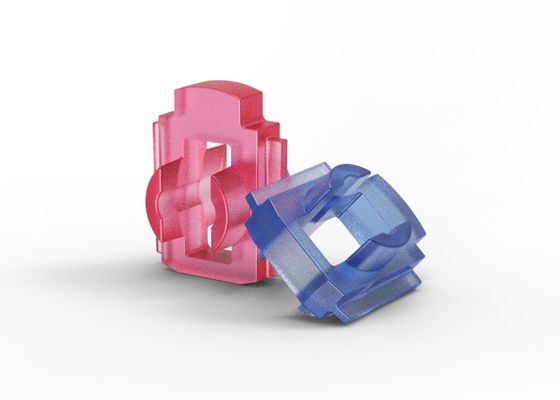

☆ Part size:7.79mm [L] x9.75mm [W] x5.76mm [H]
☆ Part weight:0.12g
Display diagram
