Medical Instrument PN-2051 (1*4) / Two-plates mold / Cold runner No.21059-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 93kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Part Weight | 0.12g |
| Part Size | 7.79 X 9.75 X 5.76mm | Gate | Side Gate |
| Tool Life | 500K Shots |
Product Description
Medical Instrument
PN-2051 (1*4)
No.21059-B

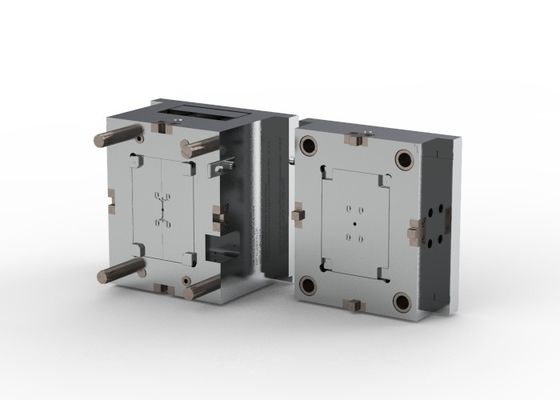

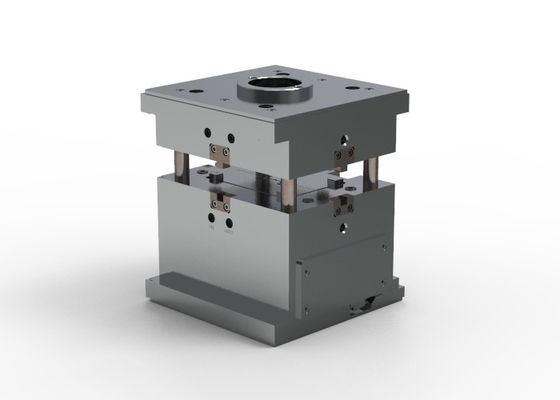

This mold features an LKM mold base and has dimensions of 250mm in height, 250mm in
width, and 251mm in depth. It is tailored for a 100T injection molding machine, using PC

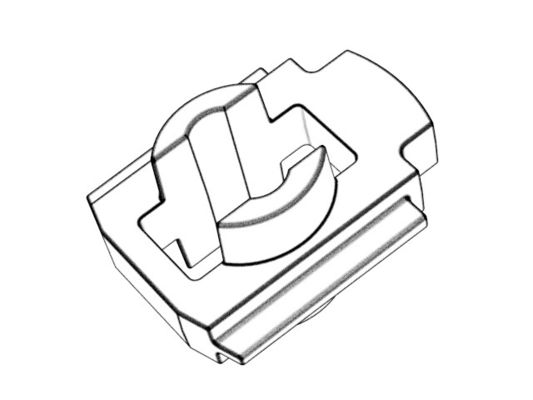

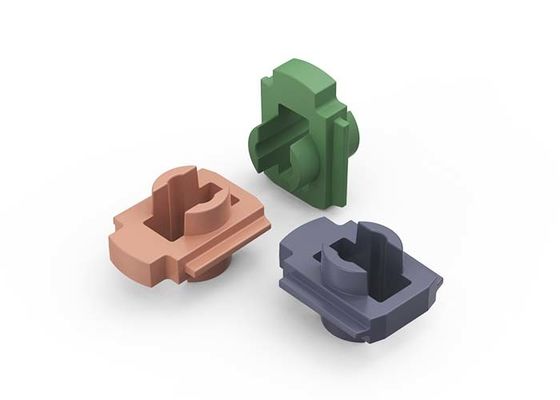

material for injection molding. The molded part weighs only 0.12g, with dimensions of
7.79mm in length, 9.75mm in width, and 5.76mm in height. The mold utilizes a cold runner
system for efficient material flow.

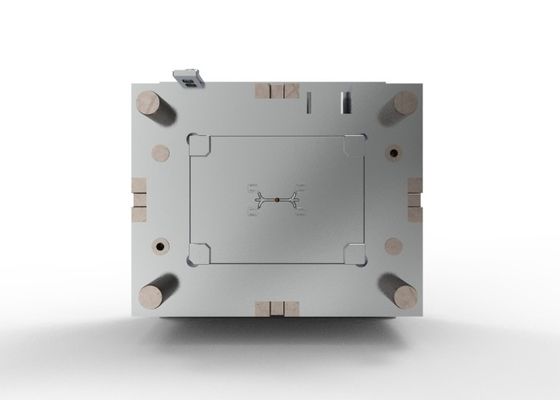

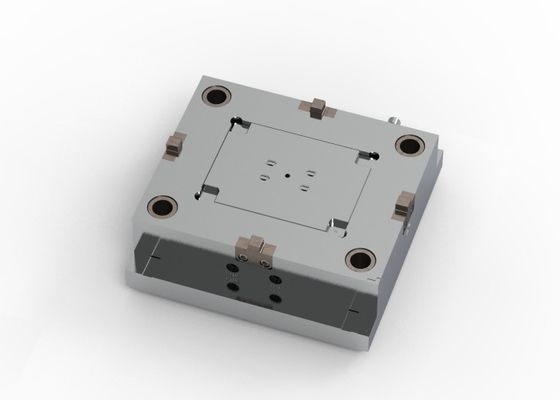

The mold cavity and core are made of S136 mold steel, with an SPI B-2 surface finish for
enhanced durability. Equipped with a side gate, the mold ensures optimal injection
performance. With a lifespan of at least 500,000 shots, this mold offers long-lasting service
and reliability.

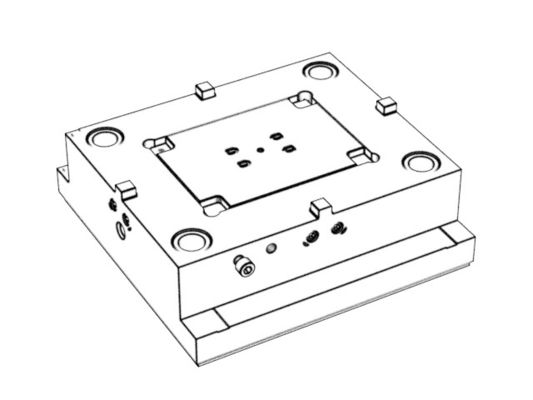

Display diagram
