Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | 500000 Shots | Runner | Cold Runner |
| Standard | LKM | Part Material | POM |
| Type | Two-plates Mold | Standard Mold Base P/N | CI2025.507070 |
Product Description
Medical Instrument PN-1500 (1*4)
No.21062
Standard mold base:CI2025.507070
Standard:LKM

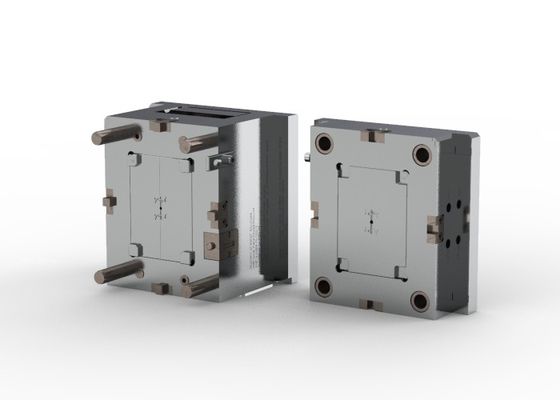

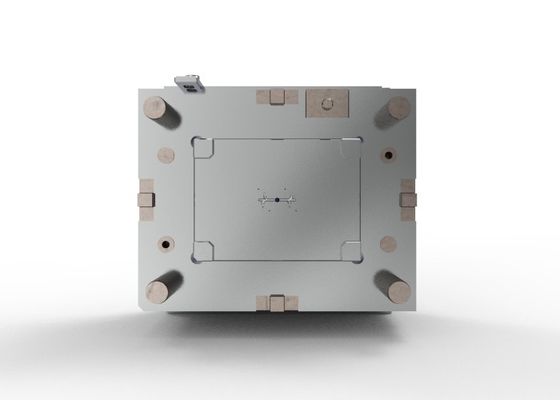

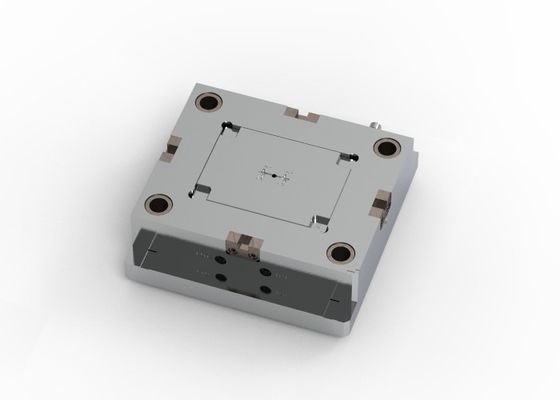

The mold has dimensions of (L)250 x (W)250 x (H)251mm and is a two-plates design with
side gate and cold runner system, allowing for easy processing and degating, making it
suitable for mass production. The mold surface is polished to SPI B-2, improving smoothness,
hardness, corrosion resistance, and wear resistance, with a tool life of up to 500k shots.
The cavity and core are hardened using 1*4/S136, providing high hardness, corrosion
resistance, and wear resistance, enabling continuous production of stable quality parts with
short cycle times and precise details, free of flow marks and gas marks.
| Part material |

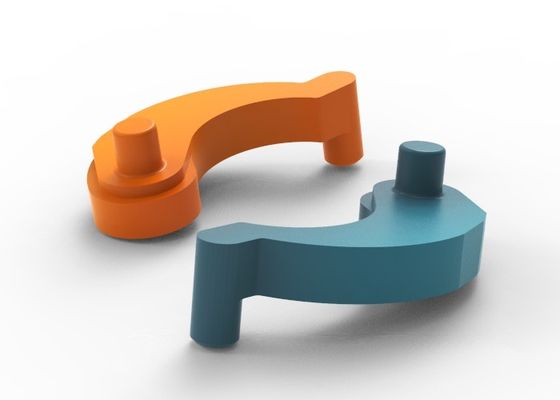

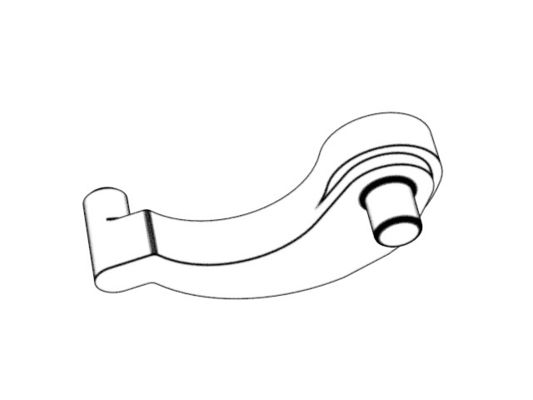

The part size is 3.86 X 7.78 X 3.25 mm and the part weight is only 0.03g |
||||
| POM | |||||
☆ Mold net weight: 94 kg
☆ IMM tonnage: 100T

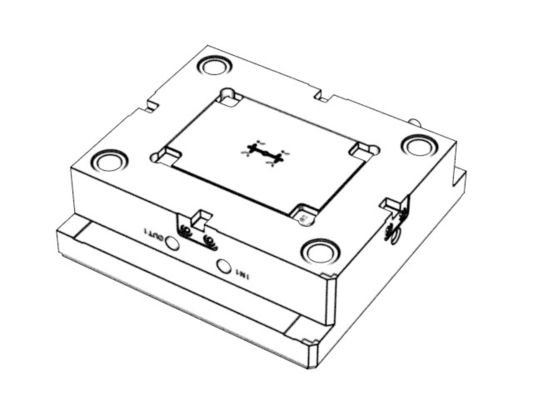

Display diagram
