Medical Instrument PN-1691 (1*4) / Two-plates mold / Cold runner No.21063-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 261.000 | Part Weight | 0.11g |
|---|---|---|---|
| Design Software | (3D)UG 4.0/ (2D）CAD | Mould Life | ≥500000 Shots |
| Gate | Side Gate | Injection Type | Cold Runner |
| Runner Type | Cold Runner |
Product Description
Medical Instrument PN-1691 (1*4)
No.21063-B
Standard mold base P/N: CI2025.508070
Standard:LKM

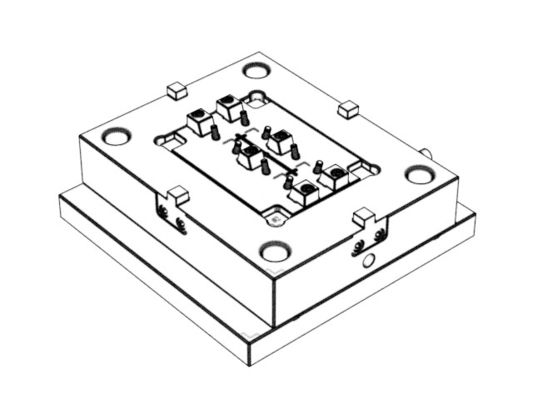

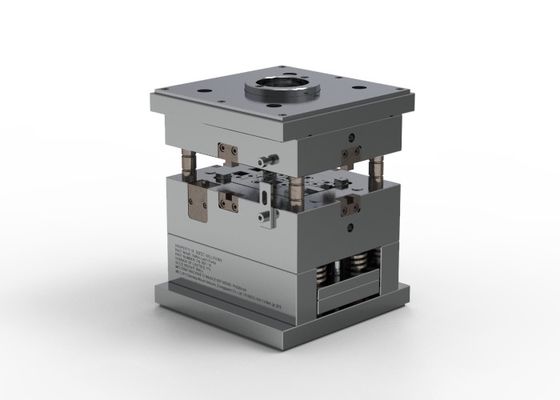

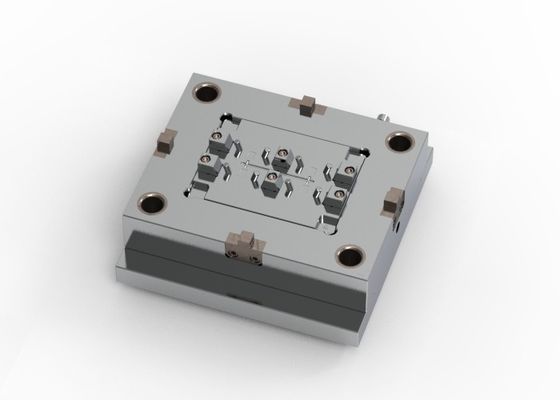

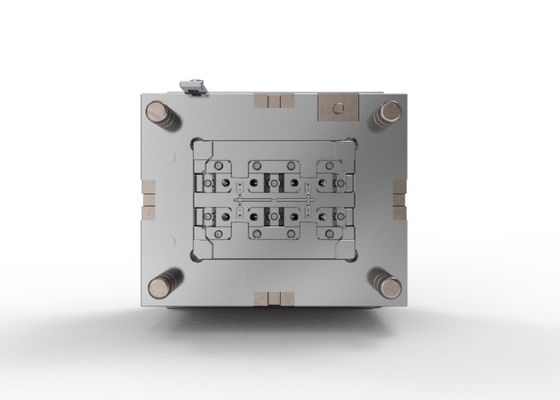

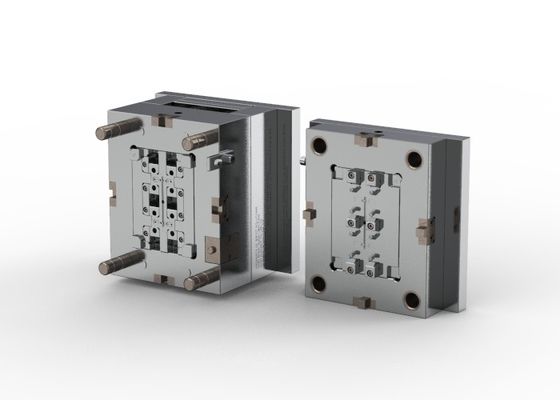

The mold dimensions are 250x250x261mm, designed for a 100T injection molding machine,
with a net weight of 93 kg. It features two slides.
The mold features side gate design and has a lifespan of over 500k shots.

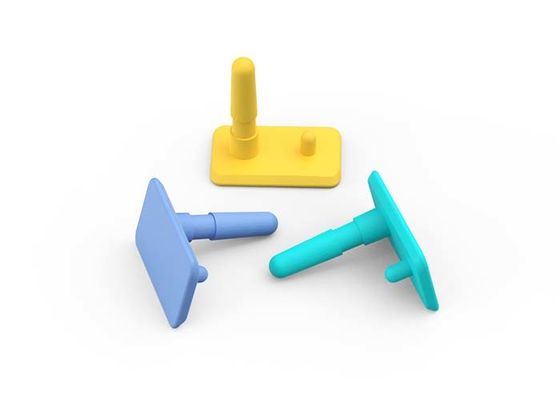

It utilizes a cold runner system and the injection-molded part is made of PC+PET material.

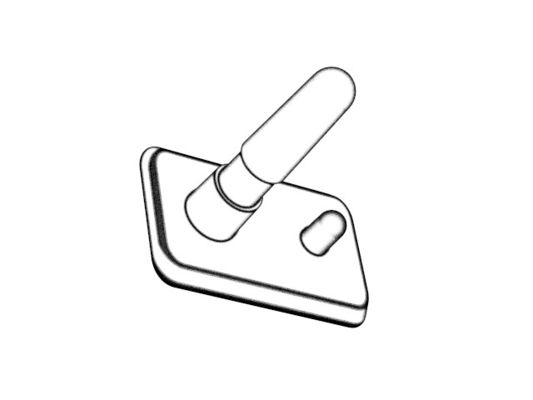

The part has a net weight of 0.11g and dimensions of 10.22x6.70x10.20mm.
Display diagram
