Transparent Medical Instrument PN-1691 (1*4) / Two-plates mold / Cold runner No.21063-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250X250X261mm | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 93kg | Tool Life | 500K Shots |
| Slide | 2 | Part Material | PC+PET |
Product Description
Transparent Medical
Instrument PN-1691 (1*4)
No.21063-B
Mold Standard:LKM (Standard mold base P/N: CI2025.508070)

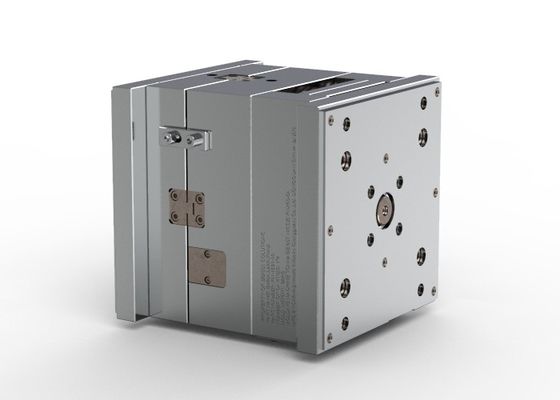

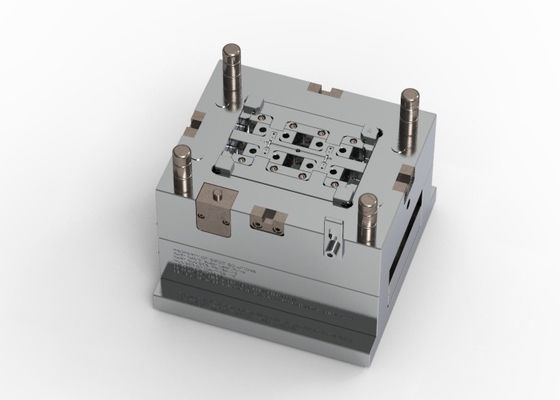

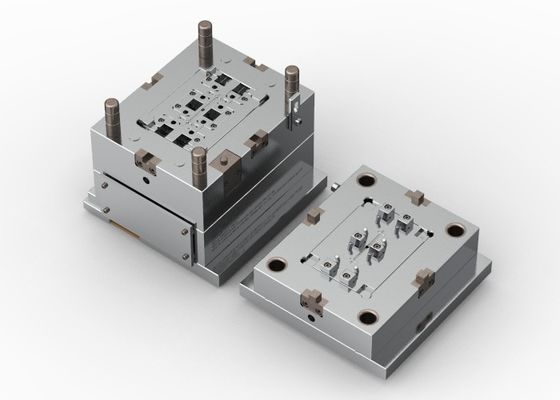

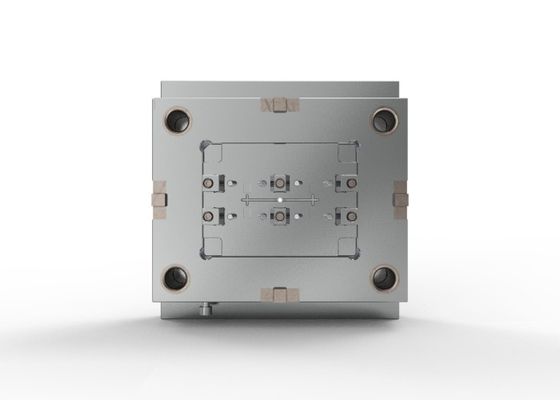

The mold has dimensions of 250mm in length, 250mm in width, and 261mm in height.
It features 2 slides and has a net weight of 93kg. T
he mold utilizes side gate structure design. A 100T injection molding machine is used,

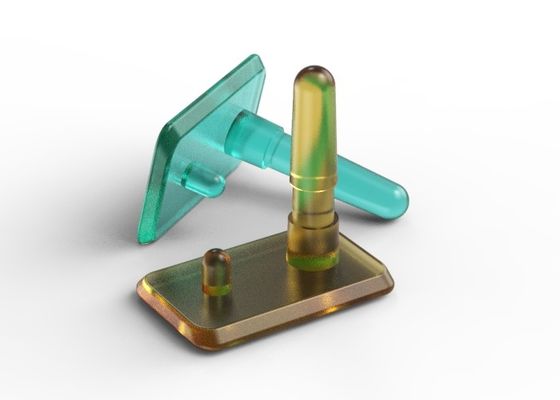

and the injection-molded part is made of PC+PET material with a net weight of only 0.11g.

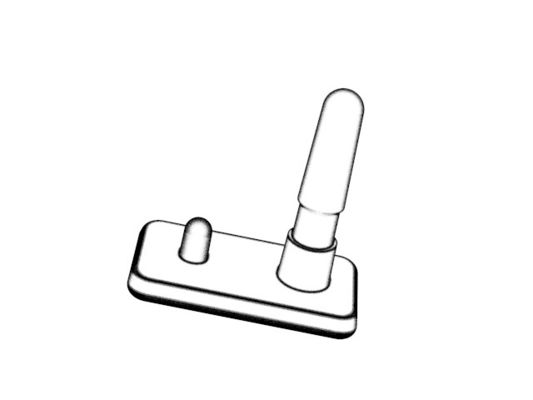

The part's dimensions are 10.22 x 6.70 x 10.20mm.
|
|

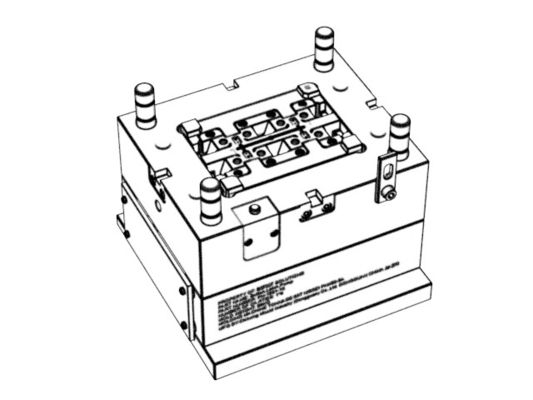

Display diagram
