Transparent Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X300.000 X 271.000 | IMM Tonnage | 100 T |
|---|---|---|---|
| Mold Weight | 148 Kg | Tool Life | 500000 Shots |
| Part Material | PC | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Type | Two-plates Mold |
| Steel Of Cavity And Core | Harden (1*4/S136) |
Product Description
Transparent Medical
Instrument PN-1809 (1*4)
No.21064-B
LKM standard
Standard mold base:P/N: CI25 30.50.80.80

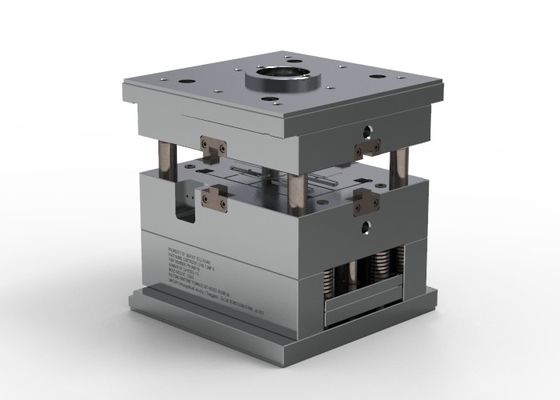

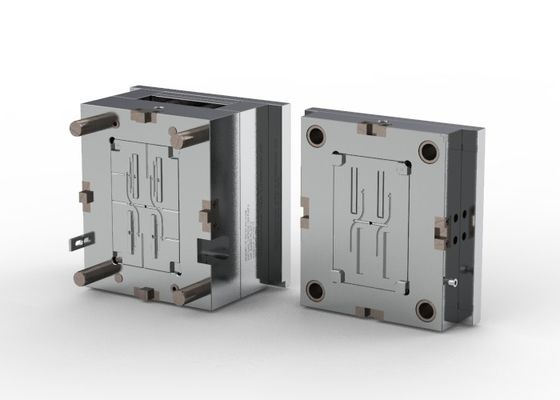

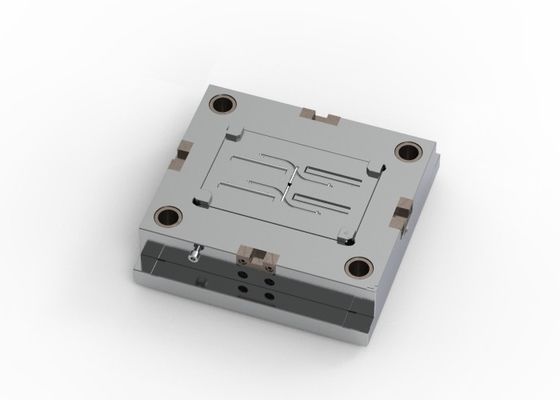

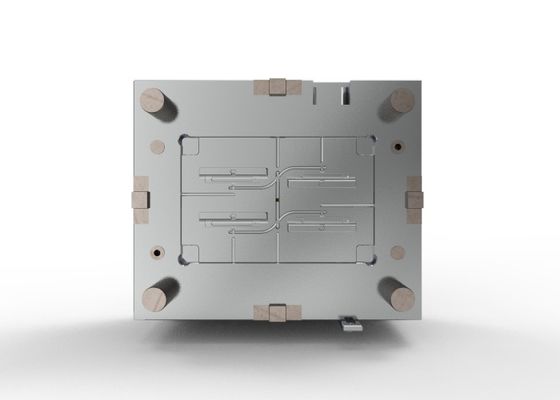

The mold measures 300mm in length, 300mm in width, and 271mm in height. It features
an SPI-A2 surface finish, a side gate design, and uses 1*4/S136 mold steel for the cavity
and core. The mold is a two-plate design, allowing for easy degating and low cost. It
requires a 100T injection molding machine. The mold provides stable molding quality,
uniform mold walls, high glossiness, a good balance of cavity pressure, and a long tool
life for mass production. The molded parts have a uniform thickness without flow marks.
| Part material | Tool life | Injection/runner type: cold runner | ||
| PC | 500k shots | |||

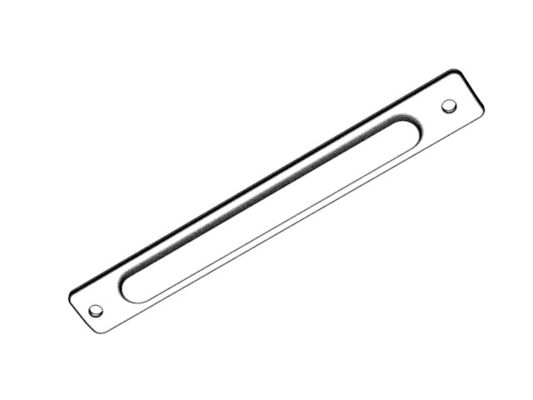

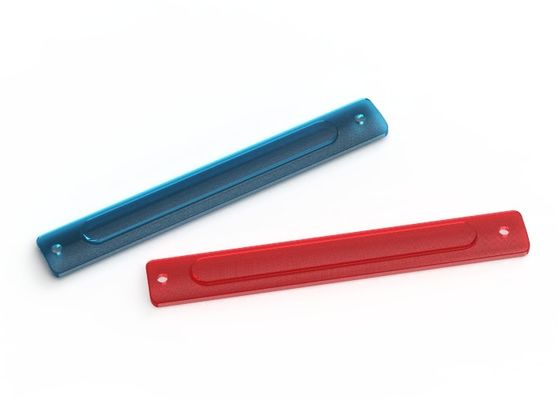

| Part weight/size | |||
| 0.6g / 7.65 X 57.56 X 2.87mm |

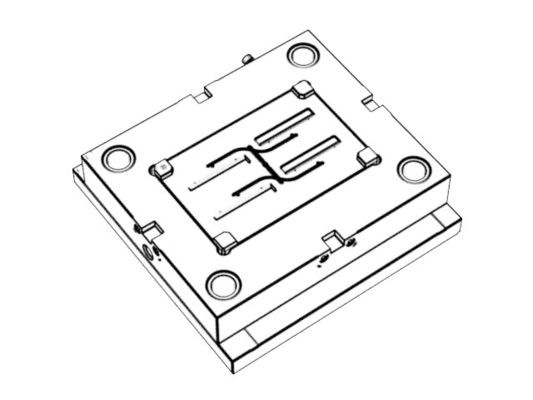

Display diagram
