Medical Instrument PN-1809 (1*4) / Two-plates mold / Cold runner No.21064-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X300.000 X 271.000mm | IMM Tonnage | 100(T) |
|---|---|---|---|
| Mold Weight | 148(kg) | Standard | LKM |
| Gate | Side Gate | Standard Mold Base P/N | CI25 30.50.80.80 |
| Surface Finish | SPI-A2 |
Product Description
Medical Instrument PN-1809 (1*4)
No.21064-B
LKM standard
Standard mold base P/N: CI25 30.50.80.80
IMM tonnage: 100T
The mold measures 300mm in length, 300mm in width, and 271mm in height. It features
side gate design, which offers a simple shape, easy processing, and degating.

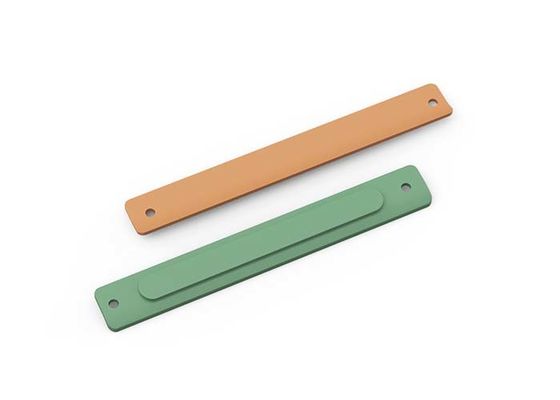

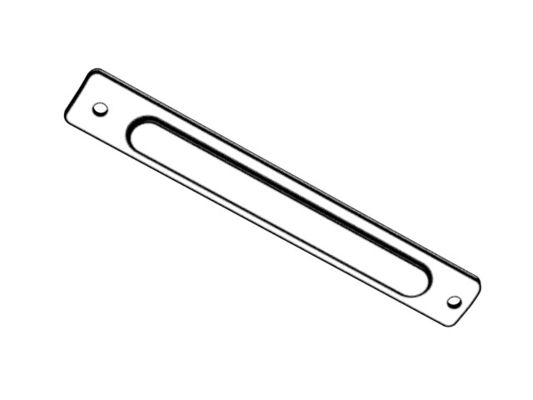

The injection-molded parts are made of PC material, weighing 0.6g, with dimensions
of 7.65 x 57.56 x 2.87mm.
|
Surface finish |
SPI-A2 |
Steel of cavity and core |
Harden (1*4/S136) |
Injection/runner type |
Cold runner |
|||

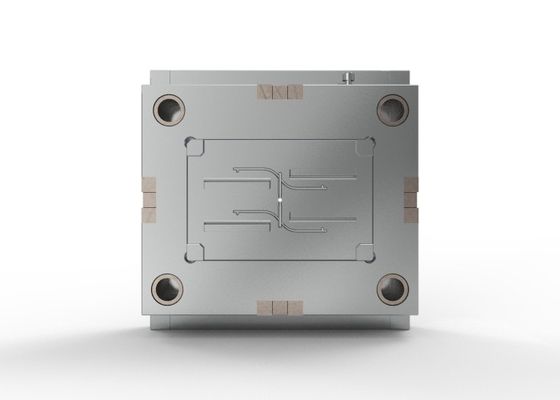

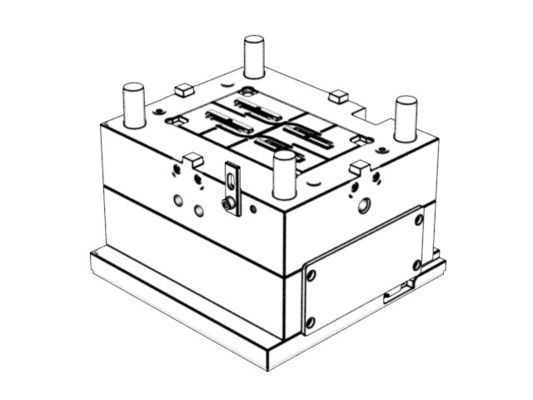

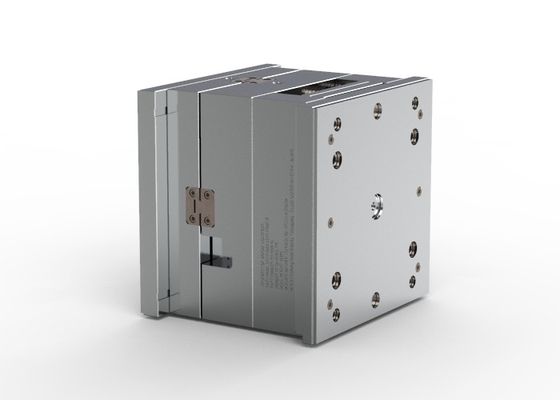

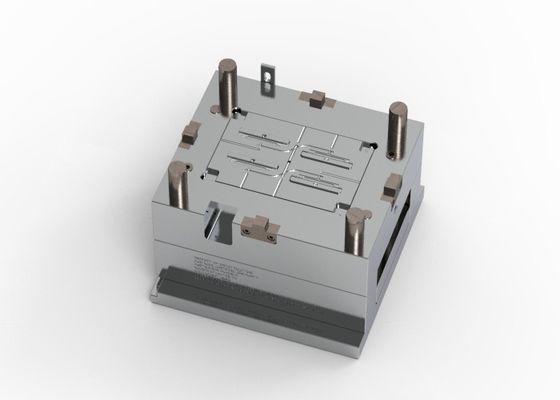

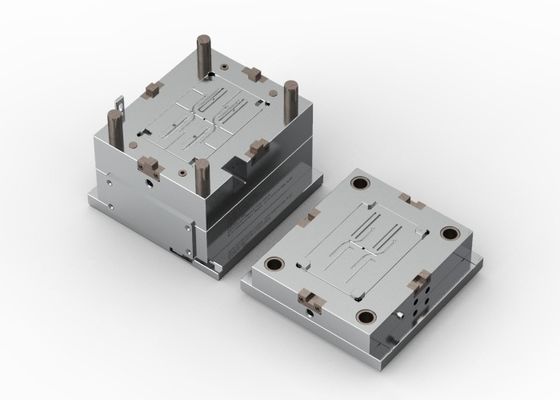

Display diagram
