Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | ≥500000 Shots | Surface Finish | SPI B-2 |
| Part Material | PC | Part Size | 8.24 X 8.21 X 2.72 Mm |
| Part Weight | 0.22g |
Product Description
Medical Instrument PN-1797 (1*4)
No.21065
(1) LKM standard
(2) Standard mold base P/N: CI2025.507070

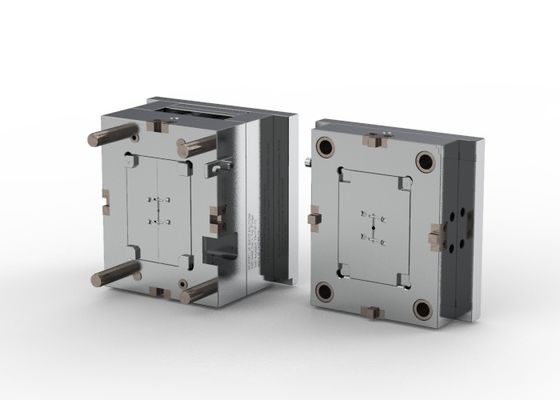

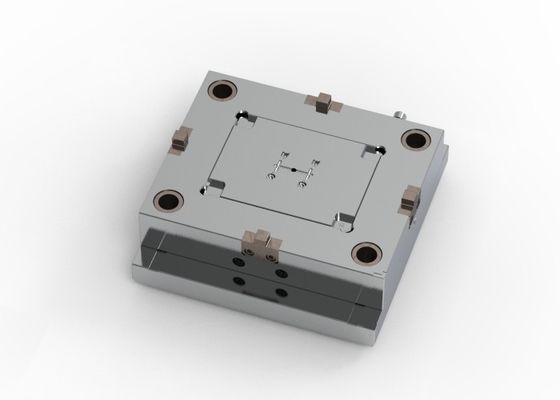

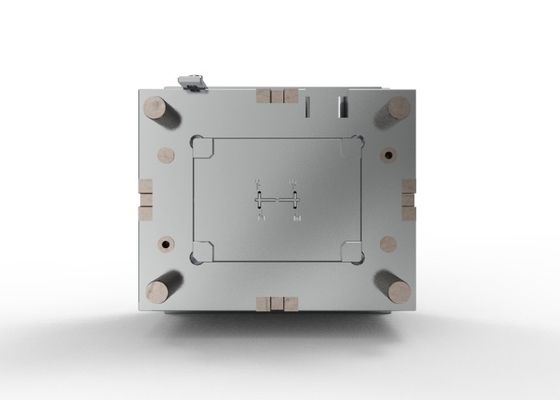

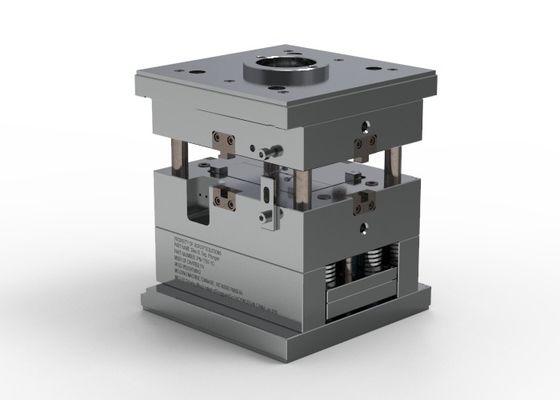

The mold has dimensions of 250mm in length, 250mm in width, and 251mm in height. It is a
two-plate mold with a side gate and cashew gate, allowing for automatic part separation during
mold opening. The mold offers a short cycle time, easy filling, smooth demolding, and low cost,
meeting customers' cost-effective requirements. The mold life can reach up to 500k shots.
The mold has dimensions of 250mm in length, 250mm in width, and 251mm in height. It
features a cold runner system and is compatible with an injection molding machine (IMM)
tonnage of 100 tons. The mold has a net weight of 94 kg and its surface is polished to

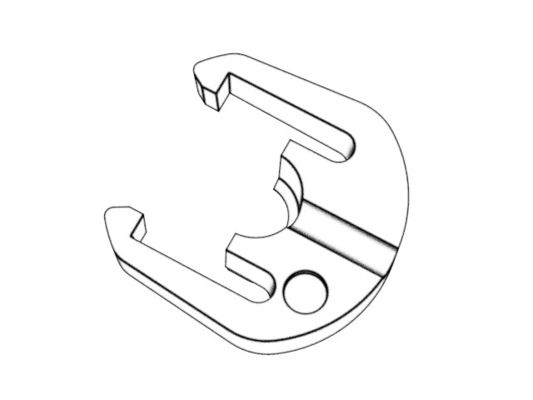

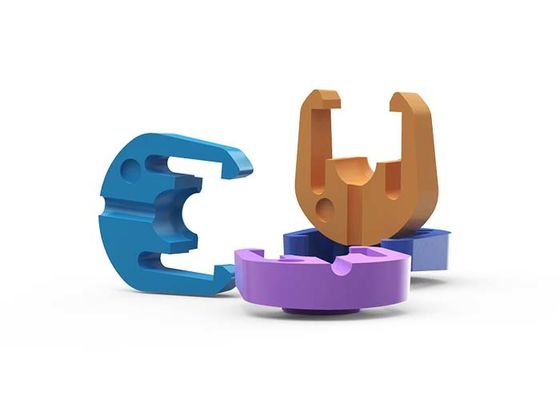

SPI B-2 standards. The injection-molded part weighs 0.22g, is made of PC material, and has
dimensions of 8.24 x 8.21 x 2.72mm. The cavity and core steel are made of 1*4/S136 mold
steel, which is hardened.
Greatly improve the surface smoothness,
anti-wearing and anti-corrosion performance

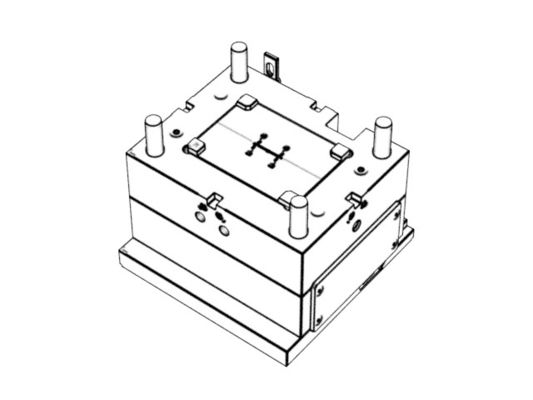

Display diagram
