Transparent Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Standard Mold Base P/N | CI2025.507070 |
| Type | Two-plates Mold | Gate | Cashew Gate |
| Part Material | PC |
Product Description
Transparent Medical Instrument PN-1797 (1*4)
No.21065-B
L250 | W250 | H251
Net weight: 94 kg Standard mold base P/N: CI2025.507070
Standard: LKM

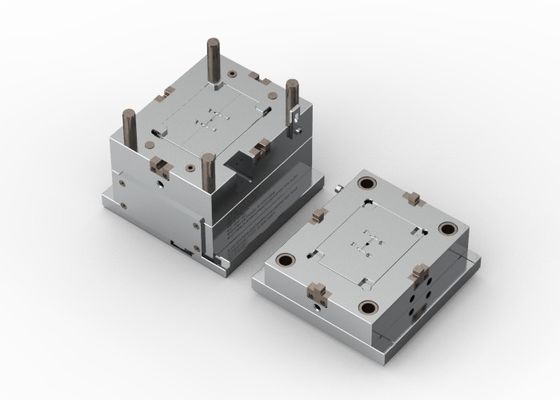

This two-plate mold features a cashew gate for efficient internal filling, resulting in a
short cycle time, rapid filling, minimal gate marks, smooth demolding, and low cost. It is
suitable for long-term, stable mass production, and the molded parts are of high quality
without burrs.
The surface finish is polished to SPI B-2, using hardened 1*4/S136 steel for the cavity and
core. This greatly enhances surface smoothness, wear resistance, and corrosion resistance.
☆ Injection/runner type:cold runner
☆ IMM tonnage:100T
☆ Tool life:500k shots

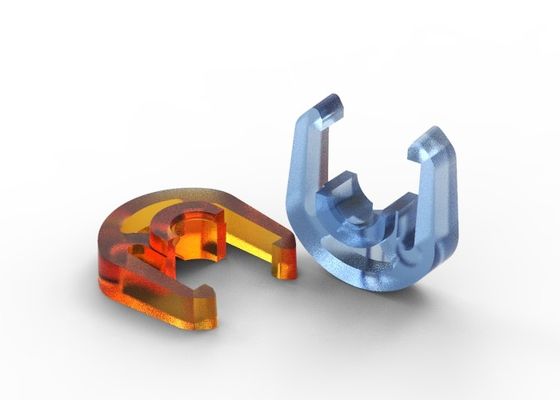

☆ Part material: PC

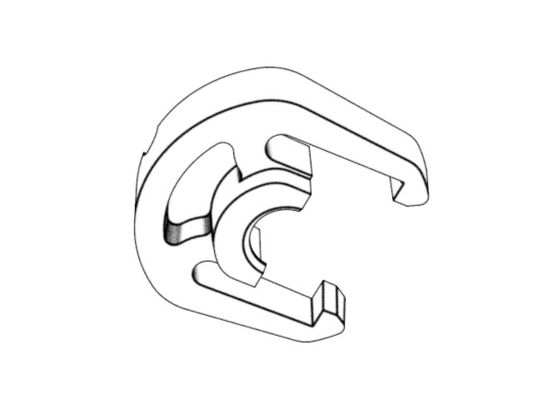

☆ Part size: 8.24 X 8.21 X 2.72 mm
☆ Part weight: 0.22g

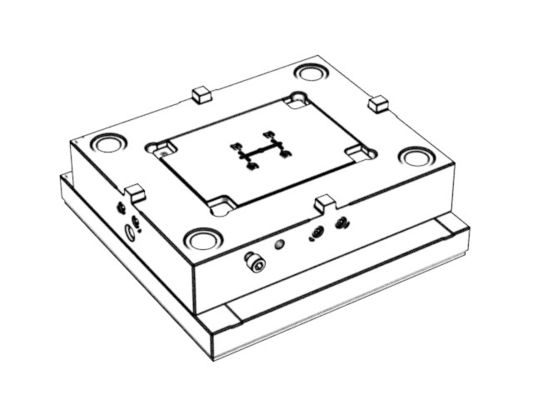

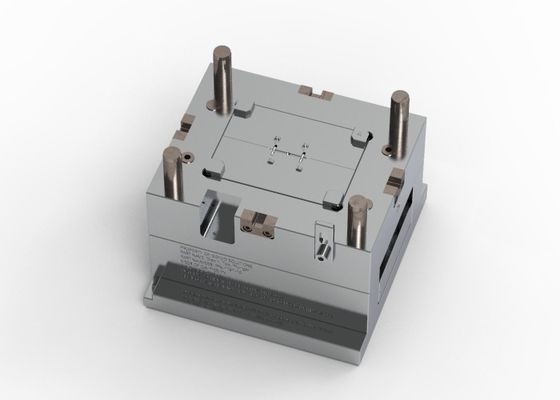

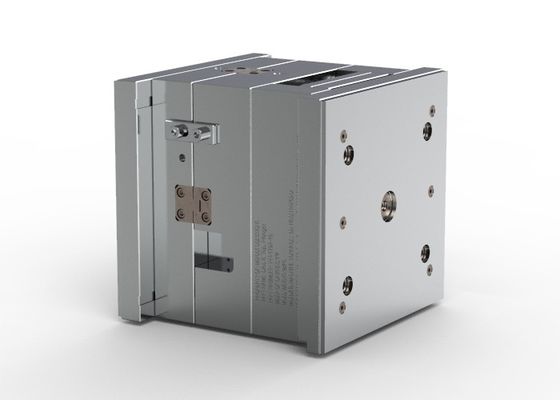

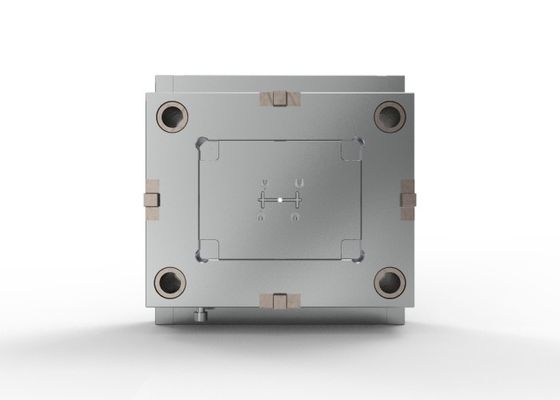

Display diagram
