OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915-B
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.00 X 500.00 X 527.00 | IMM Tonnage | 220T |
|---|---|---|---|
| Mold Weight | 708kg | Mould Life | ≥500000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0, 2D:CAD |
| Type | Three-plates Mold | Part Material | PC |
| Part Weight | 7.75g | ||
| High Light | Joint Lock Nut Injection Mold,Lock Nut Multi Cavity Injection Mold |
||
Product Description

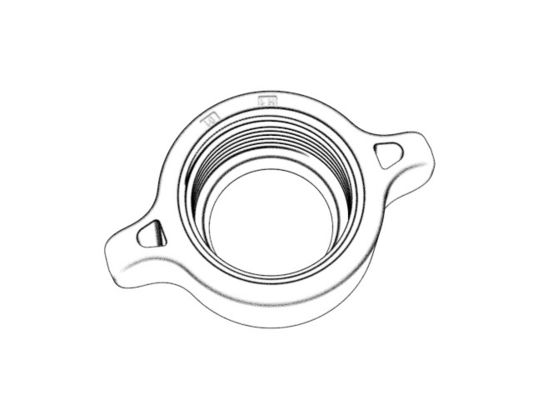

Transparent On-board
Universal Joint Lock Nut(1*4)
No.23915-B
Description:
| As a company specializing in injection mold manufacturing, our Chitwing recently launched a "multi-cavity injection mold". This mold has a unique design that can produce multiple parts at the same time, effectively improving production efficiency. Optimizing the cooling system can shorten the production cycle. To ensure durability and stability, we use high-quality materials and precise machining technology, allowing this mold to cope with various rigorous production environments. At the same time, the easy-to-use operating interface and intuitive controls also make it easy to use, even for novice operators. Chitwing has always been committed to providing customers with the best injection molding solutions. We believe that this "multi-cavity injection mold" will become your right assistant for efficient production. We will continue to invest in research and development to provide you with more advanced and cost-effective injection molding solutions. |
Application:
universal lock
Precision plastic hardware
Daily plastic products
Features:
| Brand | Chitwing |
| Mold base P/N | FCI3550 7010070 |
| Mold size | Length400*Width500*Height527 |
| Mold net weight | 708kg |
| Standard | LKM |
| Type | Three-plates mold |
| Part material | PC |
| Part size | 30.91x47.60x14.45mm |
| Part weight | 7.75g |
| Gate | Pin point gate |
| Injection/runner type | Hot runner |
| IMM Tonnage | 220T |
| Surface finish | A surface EDM with VDI24# |
| Steel of cavity & core | Harden (1*4/S136) |
|
Injection /runner type |
This is a hot runner mold, no material loss of runner, with stable molding quality and low residual stress and warpage. Can meet requirement of mass production quality, save material and labor cost. |
| Hot runner |
Advantage:
| Our company has launched a new injection mold - "Multi-Cavity Injection Mold". This mold has a unique design that can produce multiple parts at the same time, effectively improving production efficiency. At the same time, the cooling system is optimized to shorten the production cycle. During the manufacturing process, we use high-quality materials and precise machining technology to ensure the durability and stability of the mold. The easy-to-use interface and intuitive controls also make it easy to use, even for novice operators. We have been committed to providing customers with the best injection molding solutions. We believe that "multi-cavity injection mold" will become your right assistant for efficient production. We will continue to invest in research and development to provide you with more advanced and cost-effective injection molding solutions. |

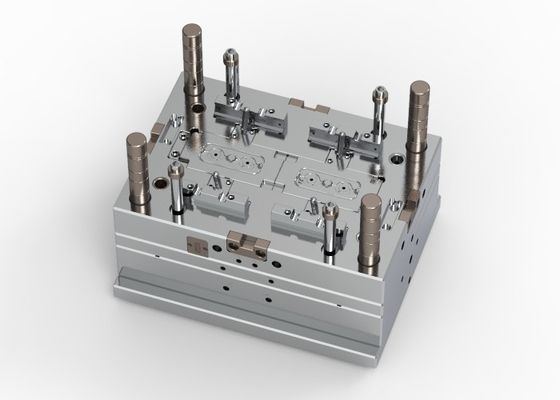

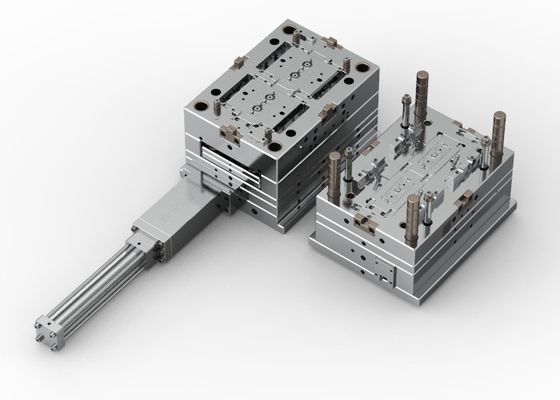

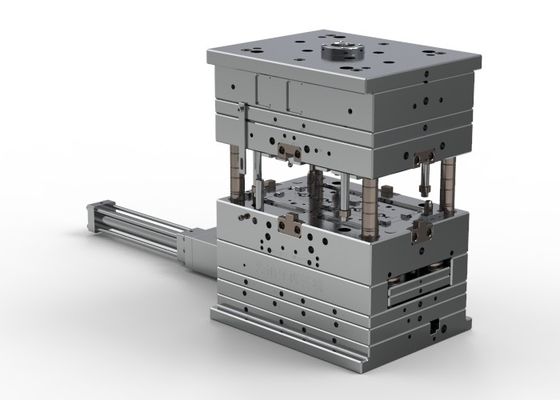

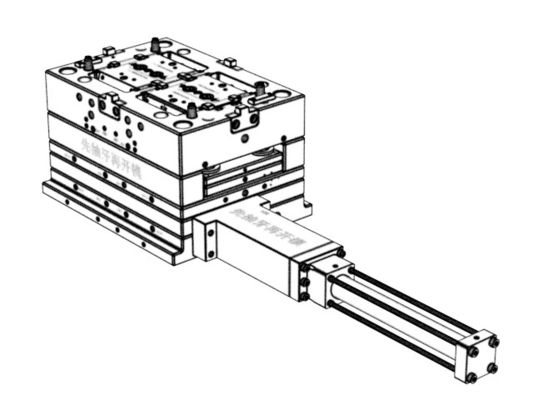

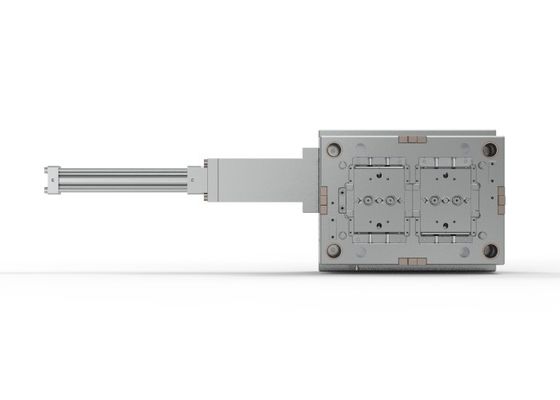

Display diagram
