OEM / ODM ： Custom Household Appliance Molds / Transparent On-board Clamp Bracket (1*8) No.24119-B
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 350.000 X 452 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 141kg | Mold Life | 500K Shots |
| Part Material | PC | Part Weight | 0.08g |
| Lifter | 2 | Type | Three-plates Mold |
| Standard | LKM | ||
| High Light | ODM Multi Cavity Injection Mold,Transparent Bracket Multi Cavity Injection Mold |
||
Product Description

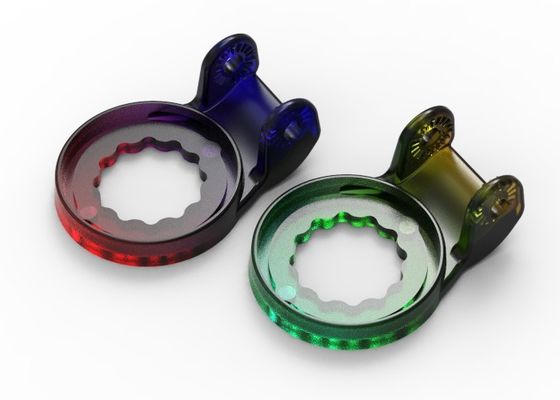

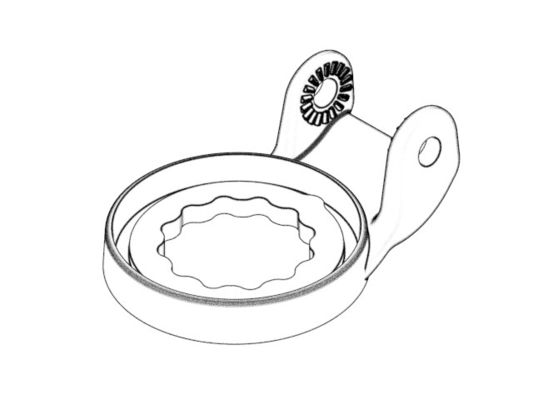

Transparent On-board Clamp Bracket (1*8)
No.24119-B
Description:
| Our company's Multi Cavity Injection Molds are meticulously designed to enable the simultaneous production of multiple identical parts within a single molding cycle. This precision engineering ensures uniform part quality and consistency across all cavities, maximizing production efficiency and reducing cycle times. The durable construction of our molds guarantees longevity and reliability, leading to cost savings and sustained high-volume manufacturing capabilities. Furthermore, our molds are customizable to accommodate diverse part geometries and material specifications, providing adaptability to meet a wide range of production requirements. |
Application:
Onboard clamp bracket
plastic hardware
Connecting injection molded parts
Features:
| Mold base P/N | FCI3035 6012090 | |
| Type | Three-plates mold | |
| IMM Tonnage | 100T | |
| Standard | LKM | |
| Lifter | 2 | |
| Net weight | 141kg | |
| Mold size | Length | 350 |
| Width | 350 | |
| Height | 452 | |
| Mold life | 500K shots | |
| Part material | PC | |
| Part weight | 0.08g | |
| Part size | 350.000 X 350.000 X 452 mm | |
| Injection/runner type | Hot runner | |
|
This is a hot runner mold, melt can get into cavity with even pressure, fill out cavity properly. molded part with even density and stable quality, good cosmetic. Mold good fitted and molded part W/O flow marks. |
||
| Surface finish | A surface EDM with Charmilles VDI24# | |
| Steel of cavity & core | Harden (1*8/S136) | |
| A surface EDM with Charmilles VDI24# with good roughness.
Molded part get more fine, smooth and clearer surfaces. anti-wearing and preventing oxidation and decarburization |
||
Advantage:
| Our company's Multi Cavity Injection Molds are meticulously crafted to optimize the manufacturing process. By enabling the simultaneous production of multiple identical parts within a single molding cycle, these molds significantly enhance production efficiency and reduce lead times. The precision engineering of our molds ensures consistent part quality across all cavities, resulting in high-quality finished products. Moreover, the durable construction of our Multi Cavity Injection Molds guarantees longevity and reliability, leading to cost savings and sustained high-volume manufacturing capabilities. Additionally, the customizable nature of our molds allows for the accommodation of diverse part geometries and material specifications, providing adaptability to meet a wide range of production needs. |

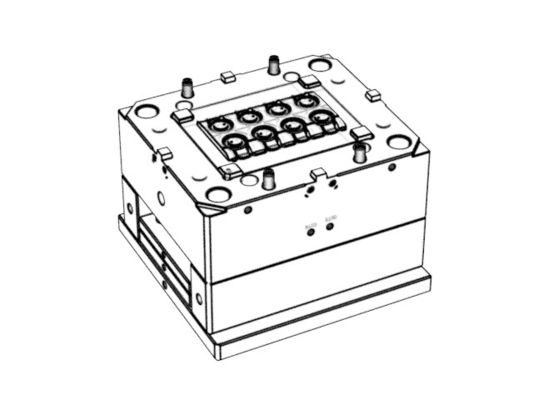

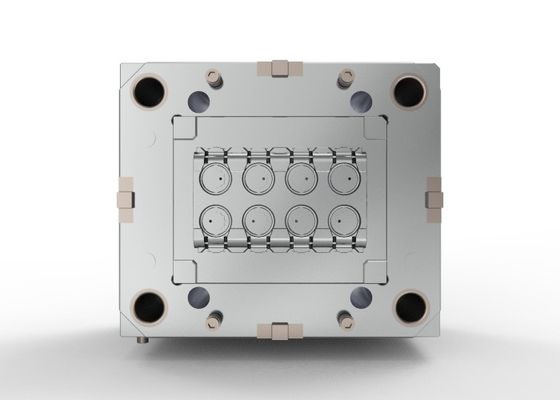

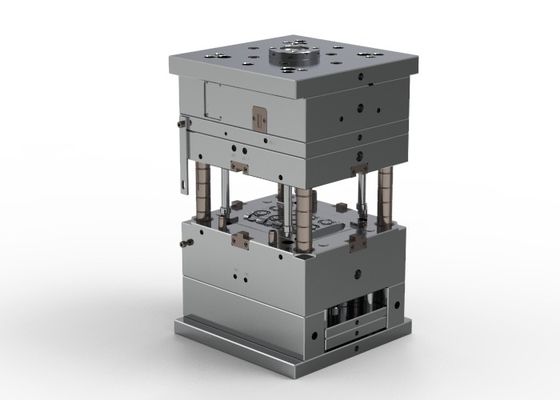

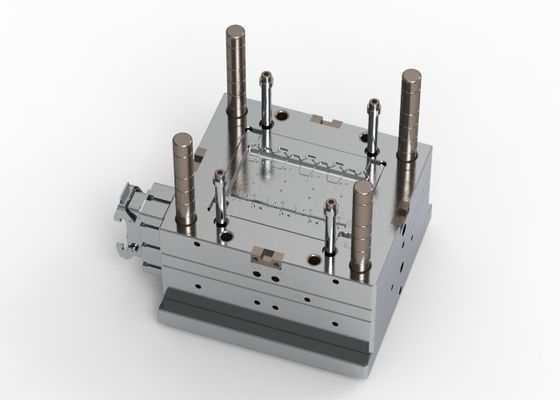

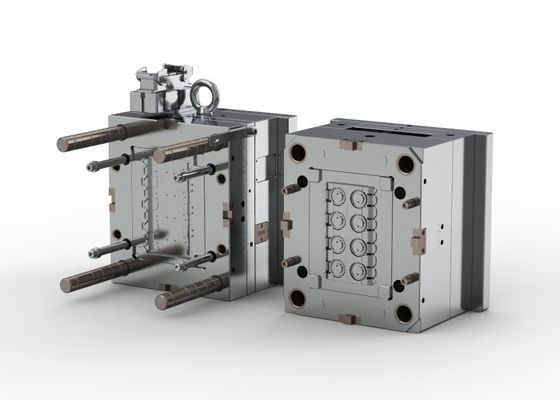

Display diagram
| [Mold life] | 500K shots | ||||
| [Part material] | PC | ||||
| [Part weight] | 0.08g | ||||
| [Part size] | 350.000 X 350.000 X 452 mm |
||||
