Shell (1*1) / Cold Runner / Two-Plates Mold No.19014-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Cavity Injection Mold | Size | 400 X 400 X 386mm |
|---|---|---|---|
| IMM Tonnage | 180(T) | Mold Weight | 390(KG) |
| Standard | LKM | Slide | 1 |
| Lifter | 8 | Design Software | 3D-UG 4.0/ 2D-CAD |
| Mould Life | 500000 Shots | ||
| High Light | Single Cavity Injection Mold Shell,Cold Runner Injection Mold Shell |
||
Product Description

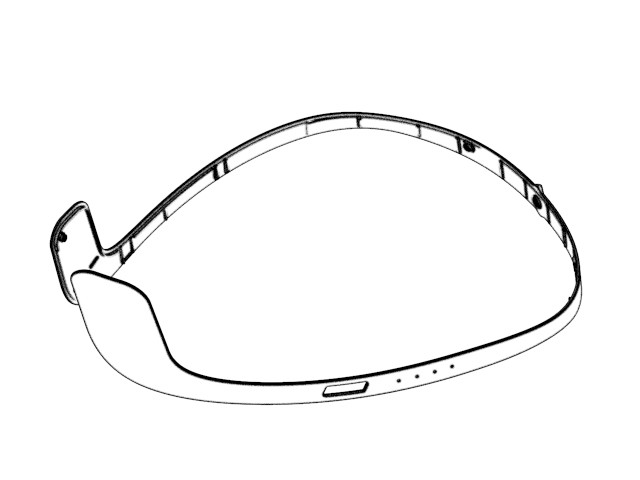

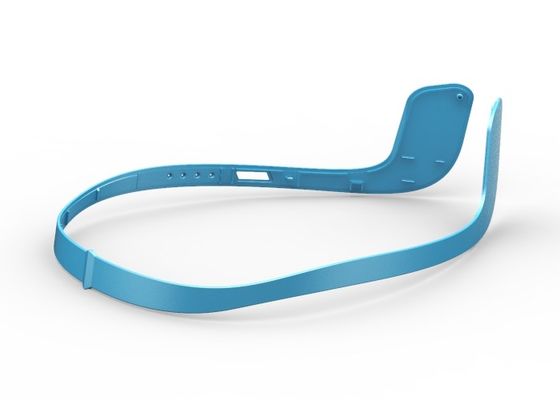

Transparent Shell (1*1)
No.19014-C
Description:
| The Cold Runner Two Plate Mold is a sophisticated tool tailored for the efficient production of plastic parts. Its two-plate design allows for the seamless release of the molded parts. The cold runner system is intricately engineered to minimize gate marks, ensuring a superior surface finish on the molded parts. This mold is constructed on a standard mold base and adheres to industry-standard specifications, guaranteeing reliability and consistency. |
Application:
Smart wearable shell
3C digital products
Daily products
Electronic Accessories
Features:
| Meticulously crafted on a standard GCI3540.90120100 mold base in strict adherence to the esteemed LKM mold standard. Its dimensions stand at an impressive 400mm in length, 400mm in width, and 386mm in height. Noteworthy features include slide and 8 lifters, along with a side gate, seamlessly transitioning from the pin point gate. This exemplar of engineering prowess is a two-plate mold, elegantly designed with two main plates that part ways to release the meticulously formed part. The design of the cold runner system is a testament to precision, effectively minimizing gate marks, while the surface, meticulously crafted through mirror EDM with VDI 10#, achieves a lustrous finish with minimal roughness, ensuring the molded part remains free of any adhesion. The injection/runner steel, Harden (1*1/S136), embodies the pinnacle of strength and durability. The core, sub-inserts, movable inserts, ejector rod, and sprue bush, all forged from steel with a hardness surpassing 40HRC, undergo a meticulous surface hardening process, resulting in a mold of unparalleled hardness and exceptional anti-wear performance. With a tool life of up to 500K shots and stable cavity pressure, the molded part boasts uniform thickness, a flawlessly smooth surface, and intricate details, devoid of any imperfections such as gas marks, bubbles, or flow marks. The part material, PC, measures 130.92 X 165.60 X 62.06mm, with a weight of 10g. |
Advantage:
| At our company, we take pride in crafting Cold Runner Two Plate Molds that stand at the forefront of precision plastic part manufacturing. These molds are meticulously engineered using top-tier materials and cutting-edge technology to guarantee peak performance and longevity. The Cold Runner system empowers the seamless injection of plastic material into the mold, yielding uniform, high-quality parts. With our Cold Runner Two Plate Mold, clients can anticipate dependable and economical answers to their plastic molding requirements. |

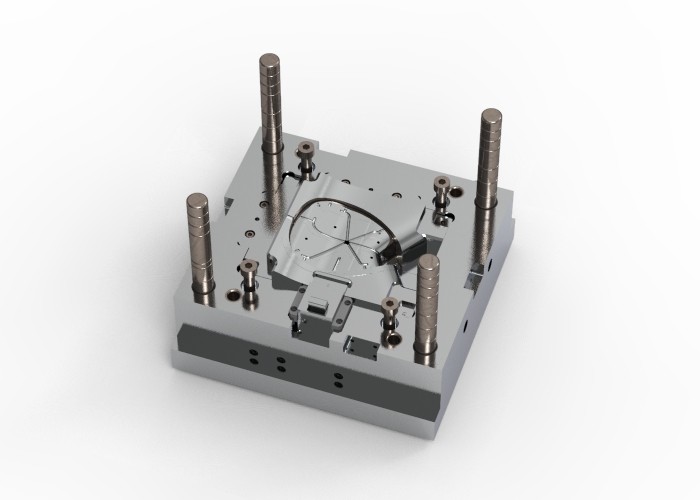

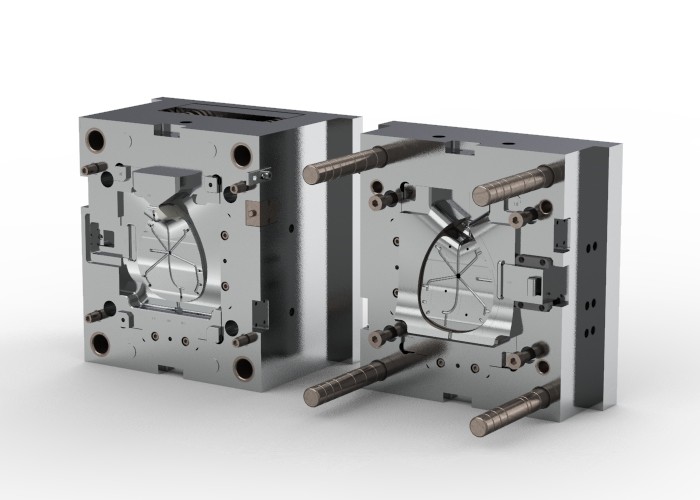

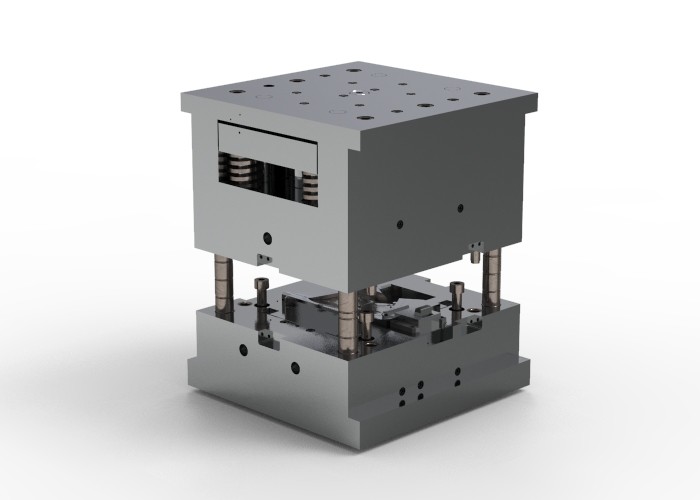

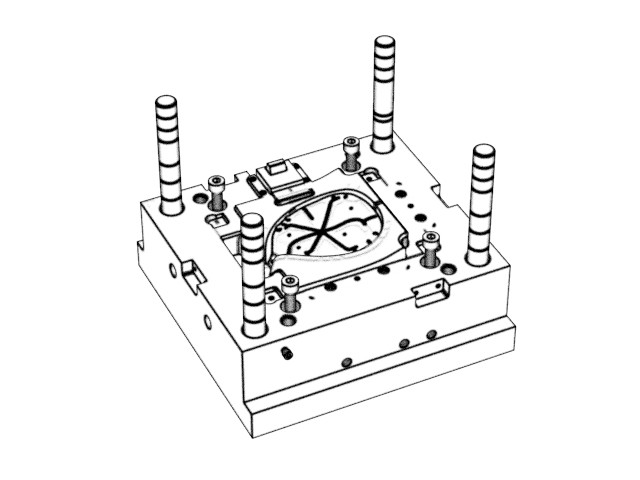

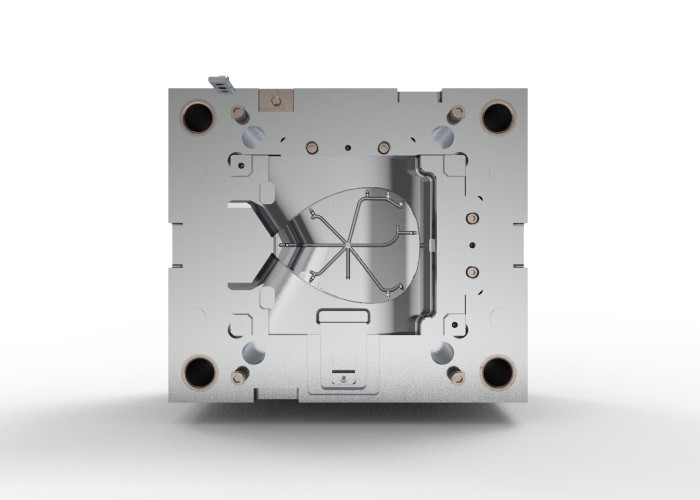

Display diagram
