Medical Instrument PN-2051 (1*4) / Two-plates mold / Cold runner No.21059-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 93kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Part Weight | 0.12g |
| Part Size | 7.79 X 9.75 X 5.76mm | Gate | Side Gate |
| Tool Life | 500K Shots | ||
| High Light | Medical Instrument cold runner mold,cold runner mold PN-2051,Two-plates mold Cold runner No.21059-C |
||
Product Description
Medical Instrument
PN-2051 (1*4)
No.21059-C
Description:
| The cold runner mold is a type of injection mold commonly utilized in the plastic manufacturing industry. It comprises two plates that form a cavity into which molten plastic is injected. The term "cold runner" pertains to the unheated channels through which the molten plastic flows into the mold cavity, remaining at room temperature. |
Application:
Smart doorbell
Security accessories
Electronic Accessories
Precision accessories
Features:

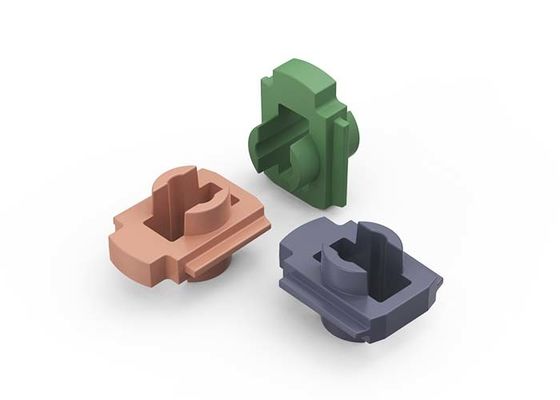

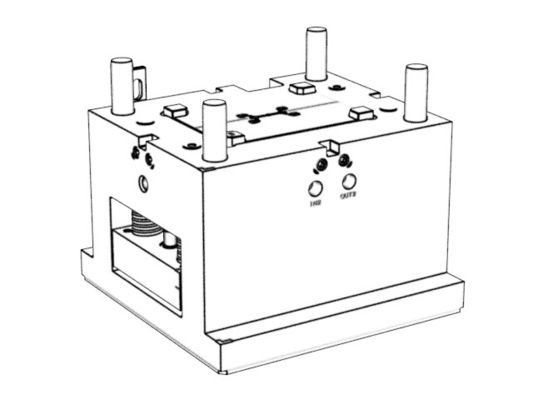

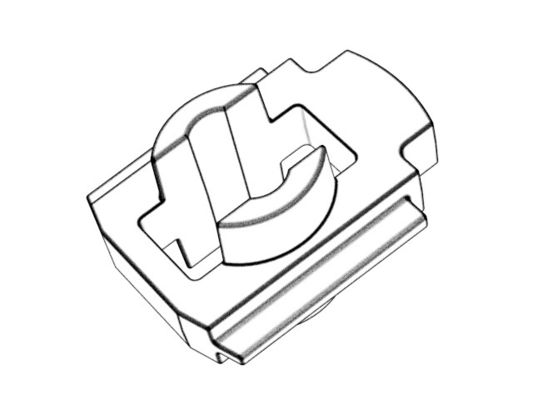

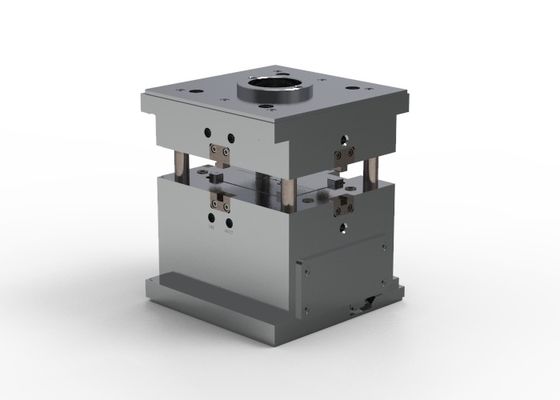

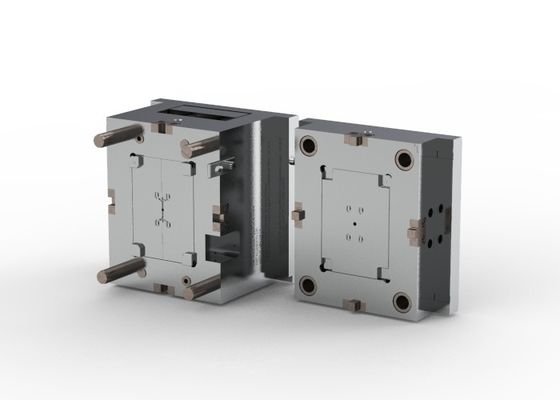

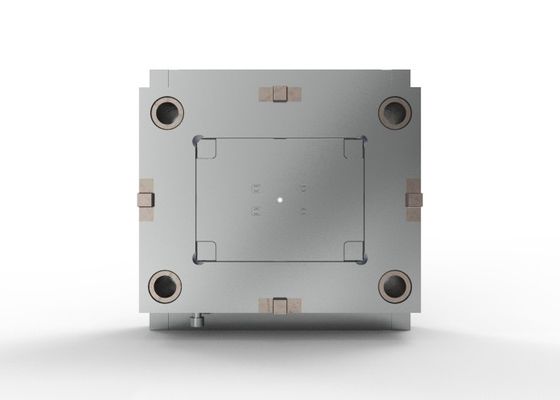

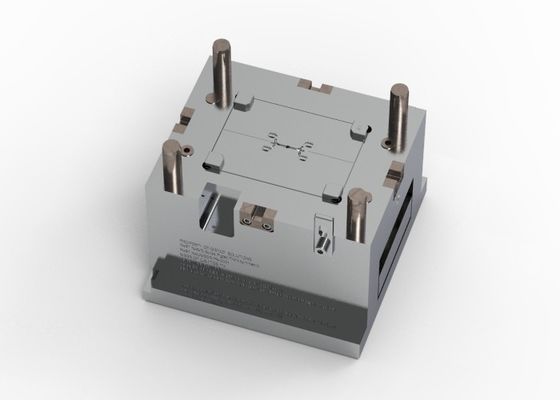

| This mold is built on an LKM mold base and measures 250mm in height, 250mm in width, and 251mm in depth. It is designed for use with a 100T injection molding machine and is optimized for PC material injection. The resulting molded part weighs a mere 0.12g and measures 7.79mm in length, 9.75mm in width, and 5.76mm in height. Employing a cold runner system, the mold ensures efficient material flow. The mold cavity and core are constructed from S136 mold steel and feature an SPI B-2 surface finish for enhanced durability. Equipped with a side gate, the mold guarantees optimal injection performance. With a lifespan of at least 500,000 shots, this mold offers long-lasting service and reliability. |
Advantage:
| We take great pride in manufacturing top-quality Cold runner / Two-plates molds, which are essential for the production of plastic parts. These molds are the result of meticulous design and precision engineering, ensuring optimal performance and efficiency during the injection molding process. With a strong focus on durability and functionality, our Cold runner / Two-plates molds are tailored to meet the diverse needs of clients across various industries. We are committed to providing reliable and cost-effective mold solutions that make a significant impact on our clients' operational success. |
Display diagram
