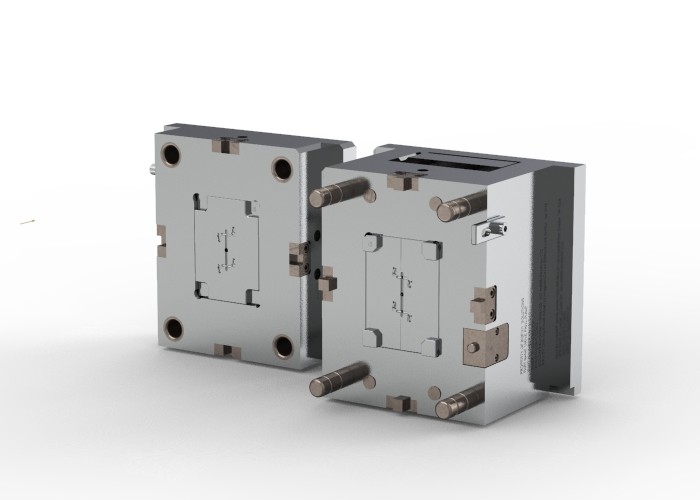

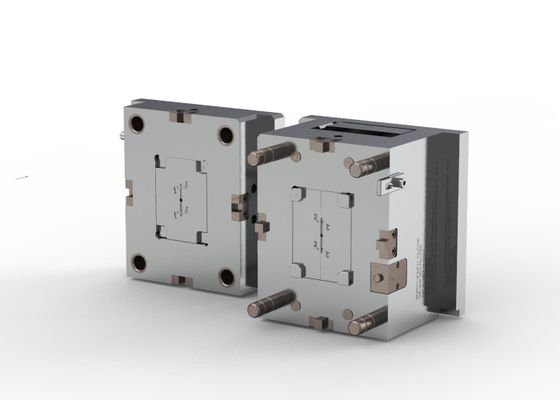

Medical Instrument PN-1816 1x4 Two Plate Mold Cold Runner No.21060-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Standard Mold Base P/N | CI2025.507070. |
| Tool Life | 500k Shots | Surface Finish | SPI B-1 |
| Gate | Side Gate | Type | Two-plates Mold |
| Part Material | POM | Part Weight | 0.39g |
| Injection/Runner Type | Cold Runner | ||
| High Light | POM medical device injection moulding,PN-1816 medical device injection moulding,Two Plate Mold Cold Runner No.21060-C |
||
Product Description
Medical Instrument
PN-1816 (1*4)
No.21060-C
Description:
| The Two Plate Mold Cold Runner is a type of injection mold. It consists of two main parts, the cavity side and the core side, which are mounted on separate mold plates. The cold runner system in this mold means that the material is not kept molten between cycles, which can lead to material waste but is often used for materials that are not heat-sensitive. This type of mold is commonly used for simpler part designs and can be more cost-effective than other mold types. |
Application:
medical equipment
Electronic instrument accessories
Precision electronic components
Features:
| Presenting the CI2025.507070 standard mold base from LKM. This exceptional mold, meticulously crafted in Guangdong, China, is engineered for longevity. Boasting a 500k shot mold life, it consistently produces high-quality components. Weighing 94 kg and measuring 250X250X251mm, it's adaptable and well-suited for a wide range of applications. Compatible with injection molding machines with a clamping force of 100 tons, this mold ensures efficient and reliable production. |
Advantage:
| Our company specializes in producing high-quality Two Plate Mold Cold Runner molds. These molds are designed to meet the needs of various industries, providing efficient and cost-effective solutions for molding simpler parts. The cold runner system ensures minimal material waste and is suitable for a wide range of materials. Our molds are crafted with precision and attention to detail, ensuring consistent and reliable performance in injection molding processes. |
☆ Surface finish: SPI B-1
☆ Steel of cavity and core: harden with 1*4/S136
| ☆ Gate: Side gate ☆ Type: Two-plates mold ☆ Part Material: POM |

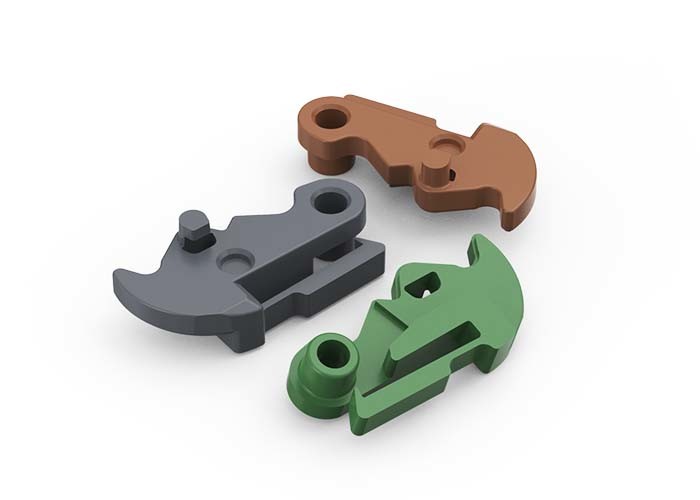

☆ Part size: 5.40 X 10.77 X 3.45mm ☆ Part weight: 0.39g ☆ Injection/Runner Type: Cold runner |

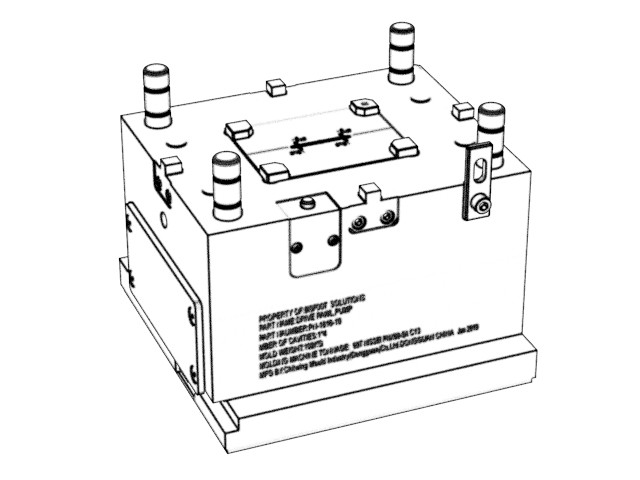

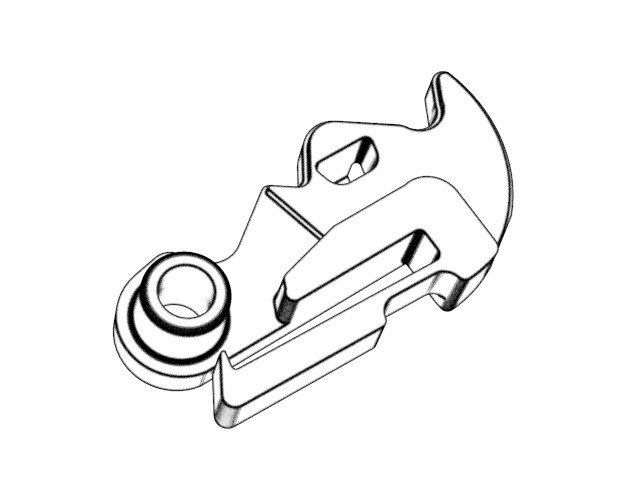

Display diagram
