Transparent Medical Instrument 1x4 Two Plate Mold Cold Runner No.21060-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D:UG 4.0/2D:CAD |
| Mould Life | ≥500000 Shots | Runner | Cold Runner |
| Standard | LKM | Tool Life | 500k Shots |
| Type | Two-plates Mold | ||
| High Light | Transparent medical device injection moulding,LKM medical device injection moulding,Two Plate Mold Cold Runner No.21060-C |
||
Product Description
Transparent Medical
Instrument PN-1816 (1*4)
No.21060-C
Description:
| The Two Plate Mold Cold Runner is like the dynamic duo of the molding world. It's got the cavity side and the core side, each doing their own thing but coming together to make something great. The cold runner system means it's not holding onto the material between shots, which might seem a bit wasteful, but it's perfect for certain types of materials. This type of mold is perfect for simpler parts and can save you some cash too. |
Application:
Medical electronic instrument accessories
Precision instrument parts
plastic assembly
Features:
| LKM introduces the CI2025.507070 standard mold base, a high-quality mold manufactured in Guangdong, China. This durable mold is designed to withstand extensive use, with a mold life of 500k shots and a consistent delivery of top-notch parts. Weighing 94 kg and measuring 250X250X251mm, it is versatile and suitable for various applications. It is compatible with injection molding machines with a clamping force of 100 tons, ensuring efficient and reliable production. The mold features a surface finish of SPI B-1, cavity and core steel hardened with 1*4/S136, a side gate, and is a two-plate mold with a cold runner. It is designed for POM material, with a part size of 5.40 X 10.77 X 3.45mm and a part weight of 0.39g. |
Advantage:
| At our company, we take pride in crafting top-notch Two Plate Mold Cold Runner molds. These molds are the unsung heroes of the manufacturing world, quietly and efficiently producing a wide variety of simpler parts for different industries. The cold runner system we use minimizes material waste and is compatible with a diverse range of materials. Our meticulous attention to detail and precision engineering ensure that our molds consistently deliver reliable performance in the injection molding process. |

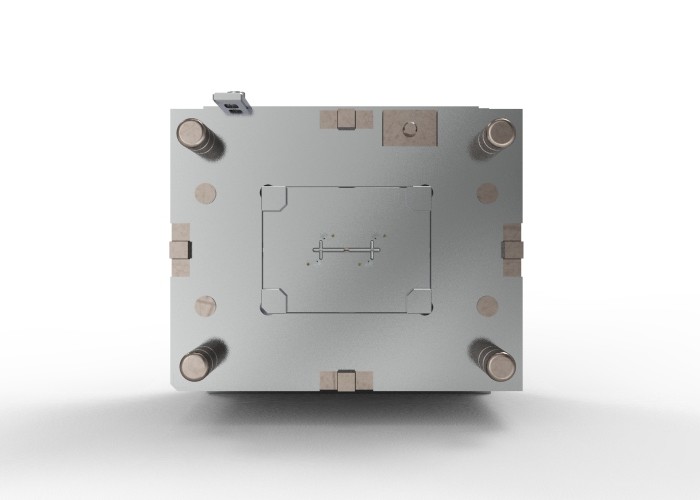

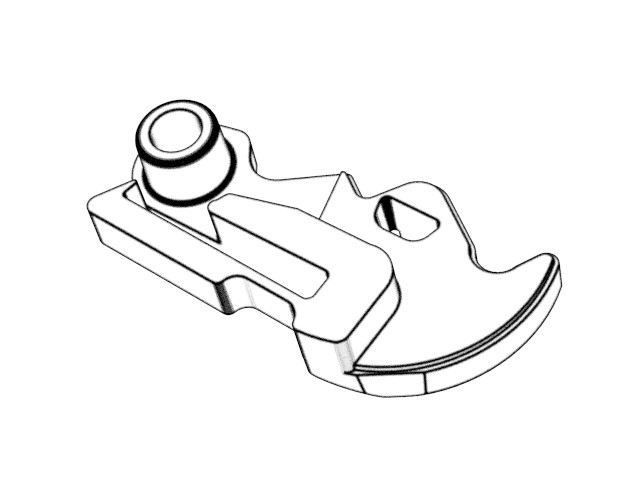

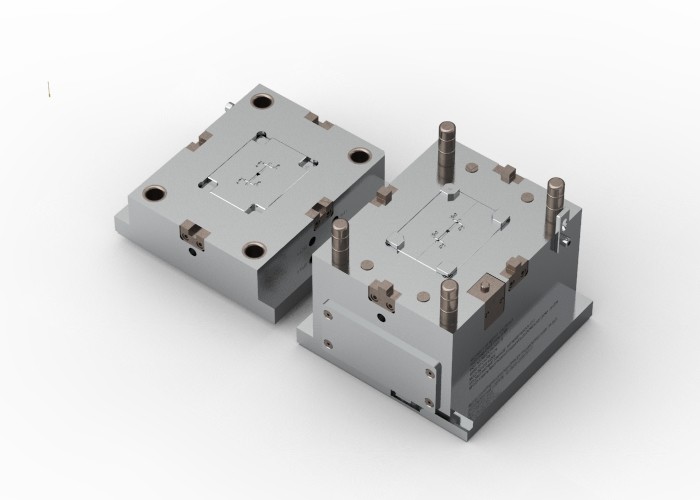

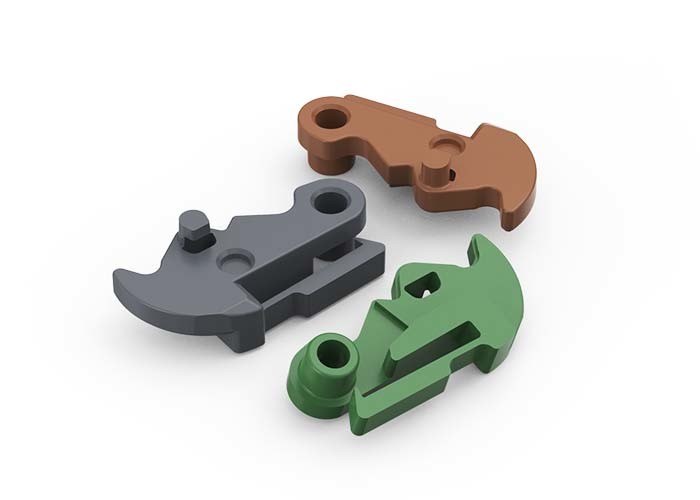

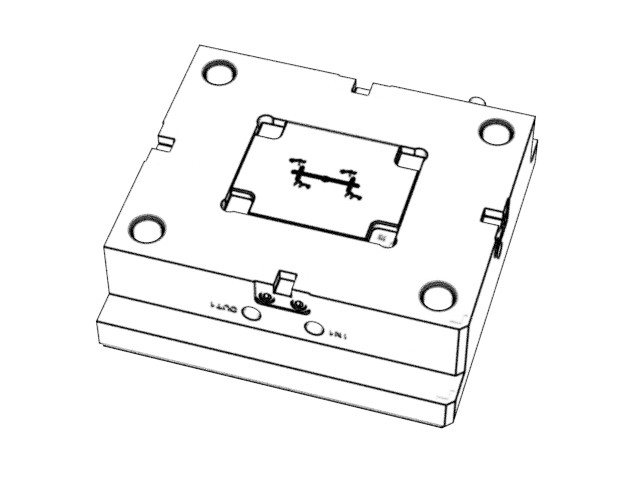

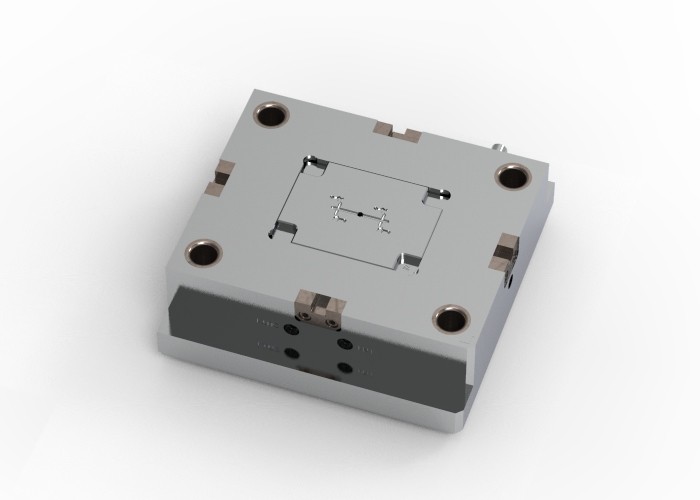

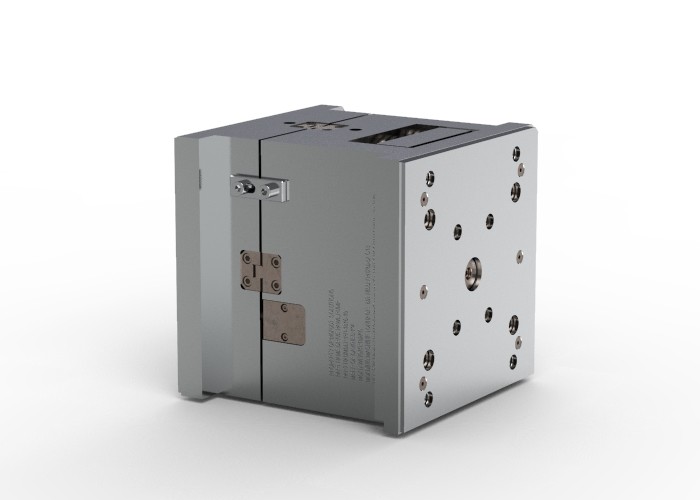

Display diagram
