Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 450.000 X 356.000 | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 310kg | Injection/runner Type | Hot Runner |
| Slide | 1 | Part Weight | 7.3g |
| Part Size | 43.75 X 85.49 X 14.88mm | Type | Two-plates Mold |
| Steel Of Cavity And Core | Harden With 1*2/S136 | ||
| High Light | PN-2055 injection molding medical parts,Hot runner injection molding medical parts |
||
Product Description
Medical Instrument PN-2055 (1*2)
No.21061-C
Description:

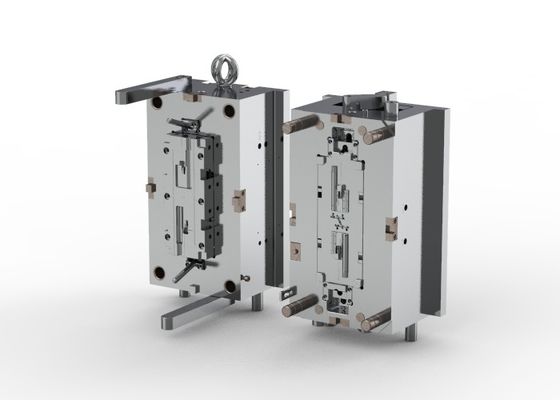

| The two-plates mold with a hot runner system! This type of mold consists of two main parts: the cavity plate and the core plate. The two-plates mold is a widely used injection mold design due to its simplicity and cost-effectiveness. It is suitable for a wide range of plastic products and is relatively easy to maintain and operate. The hot runner system is an advanced technology used in injection molding. It consists of heated components that deliver molten plastic to the mold cavity in a controlled manner. This results in reduced cycle times, lower energy consumption, and decreased material waste. The hot runner system is particularly beneficial for large-scale production runs and for molding parts with complex geometries. |
Application:
Medical electronic housing
Smart doorbell
Precision electronics
3C shell
Features:

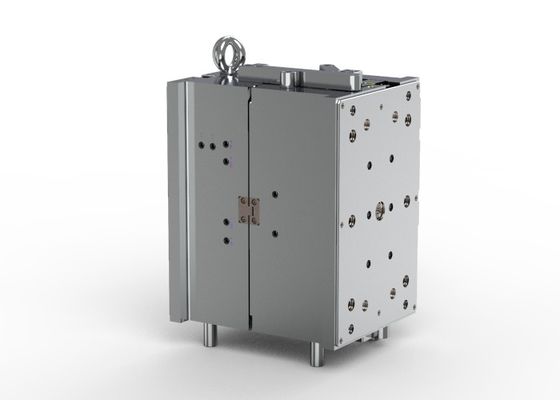

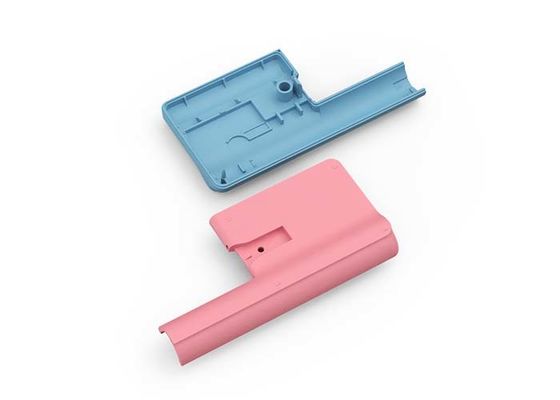

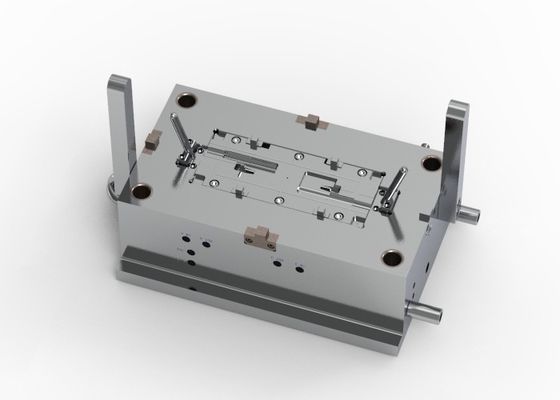

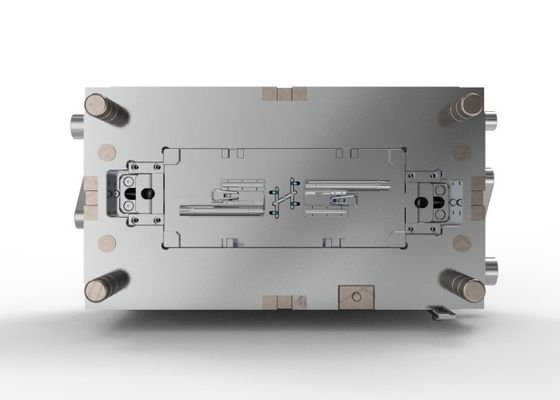

| Our Standard Mold Base CI2545.609080! This mold, measuring 300x450x356mm, adheres to the LKM standard and features a cashew gate. It's a two-plate mold with a straightforward design, offering cost-effectiveness and ease of use. The mold weighs 310 kg and is designed for use with an injection molding machine (IMM) with a tonnage of 130 metric tons. Certain surfaces of the mold have been polished to MT11010/SPI-A2/SPI-B2 standards, enhancing its smoothness, corrosion resistance, and wear resistance. This high-quality polishing greatly facilitates the injection molding process, allowing for easy demolding and reduced cycle times. The cavity and core of the mold are made of 1*2/S136 mold steel, which enhances hardness and corrosion resistance, ultimately reducing maintenance costs and ensuring continuous mass production. Additionally, the mold utilizes a hot runner system and includes one slide. The injection-molded part produced by this mold is made of PC material, with a net weight of 7.3g and dimensions of 43.75mm in length, 85.49mm in width, and 14.88mm in height. |
Advantage:
| Our Hot Runner Two-plates molds, meticulously crafted to meet the diverse demands of our esteemed clients in the plastic manufacturing industry. The innovative design of the Hot Runner Two-plates mold, comprising a cavity plate and a core plate, embodies simplicity, cost-effectiveness, and adaptability, rendering it ideal for a wide array of plastic products. The integration of a cutting-edge hot runner system further elevates the efficiency and precision of the injection molding process, resulting in reduced cycle times, decreased energy consumption, and minimized material wastage. This fusion of the Hot Runner Two-plates mold and hot runner system empowers us to address large-scale production requisites and fabricate components with intricate geometries, adhering to the most stringent benchmarks of quality and performance. |

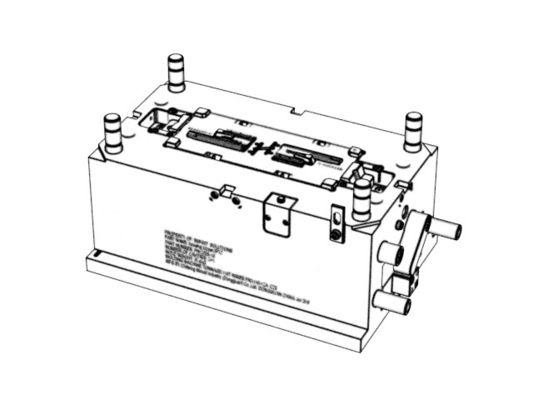

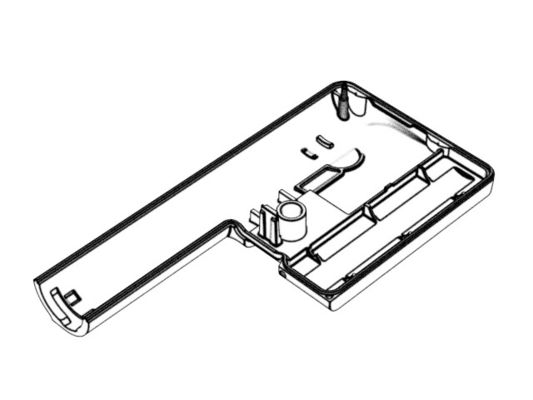

Display diagram
