Transparent Medical Instrument PN-2055 (1*2) / Two-plates mold / Cold runner No.21061-C
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 1 Slide | Size | 300.000 X 450.000 X 356.000 |
|---|---|---|---|
| IMM Tonnage | 130T | Mold Weight | 310kg |
| Standard Mold Base P/N | CI2545.609080. | Gate | Cashew Gate |
| Type | Two-plates Mold | Injection/runner Type | Hot Runner |
| Part Material | PC | ||
| High Light | cashew gate medical plastic injection molding,PC medical plastic injection molding |
||
Product Description
Transparent Medical
Instrument PN-2055 (1*2)
No.21061-C
Description:
| The two-plates mold with an innovative hot runner system! This mold design, consisting of a cavity plate and a core plate, is favored for its simplicity and cost-effectiveness, making it suitable for a wide range of plastic products. The hot runner system, an advanced technology in injection molding, utilizes heated components to precisely deliver molten plastic to the mold cavity, resulting in reduced cycle times, lower energy consumption, and minimized material waste. This combination of the two-plates mold and hot runner system is particularly beneficial for large-scale production and molding parts with complex geometries. |
Application:
medical shell
Smart doorbell shell
3C digital shell
Features:

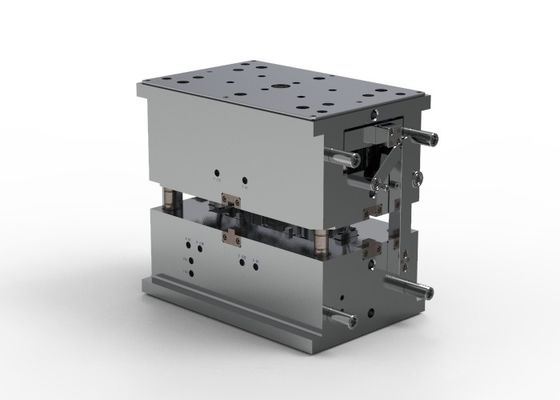

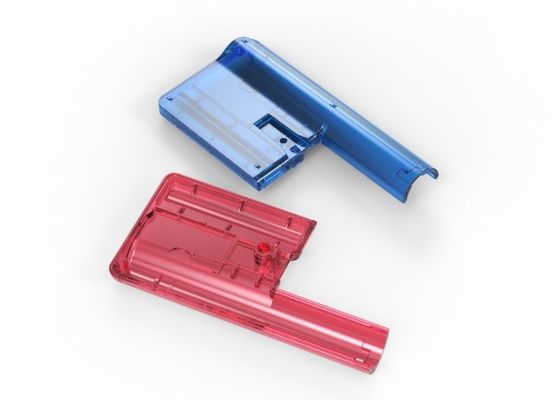

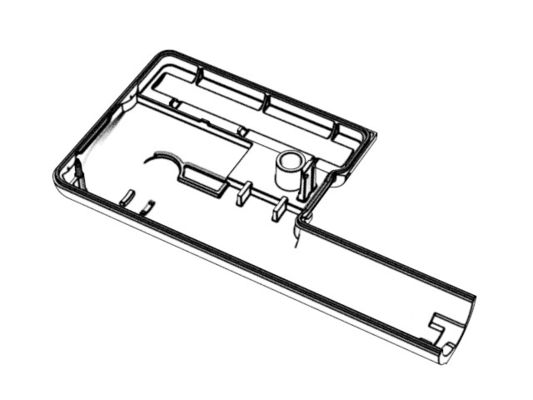

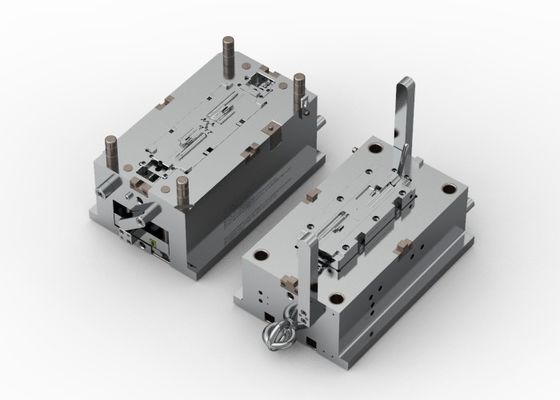

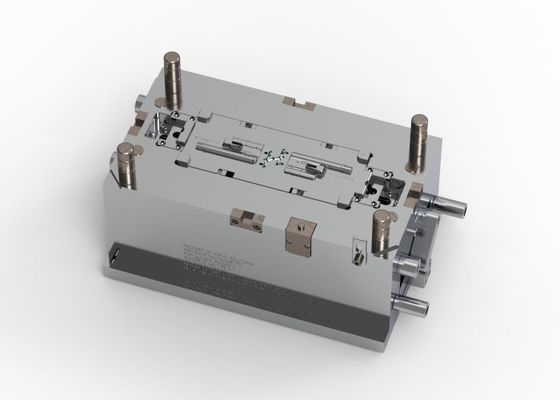

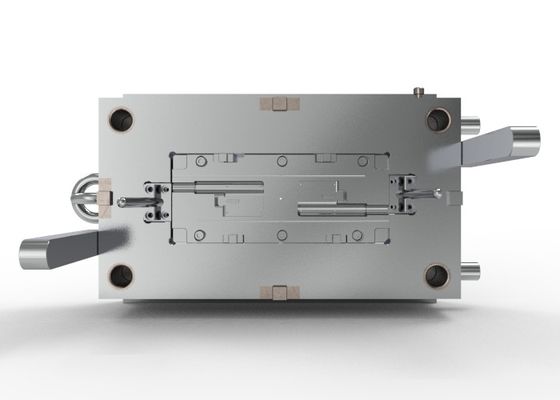

| Introducing our Standard Mold Base CI2545.609080, sized at 300x450x356mm and built to LKM standards, featuring a cashew gate and a simple two-plate design for cost-effectiveness and ease of use. Weighing 310 kg, this mold is designed for use with an injection molding machine (IMM) with a tonnage of 130 metric tons. Certain surfaces are polished to MT11010/SPI-A2/SPI-B2 standards, enhancing smoothness, corrosion resistance, and wear resistance, facilitating the injection molding process. The cavity and core are made of 1*2/S136 mold steel, improving hardness and corrosion resistance, reducing maintenance costs, and ensuring continuous mass production. Additionally, the mold utilizes a hot runner system and includes one slide. It produces injection-molded parts made of PC material, with a net weight of 7.3g and dimensions of 43.75mm in length, 85.49mm in width, and 14.88mm in height. |
Advantage:
| Our company specializes in the production of Hot Runner Two-plates molds, which are designed to meet the diverse needs of our clients in the plastic manufacturing industry. The Hot Runner Two-plates mold design, consisting of a cavity plate and a core plate, offers simplicity, cost-effectiveness, and versatility, making it suitable for a wide range of plastic products. The incorporation of a hot runner system further enhances the efficiency and precision of the injection molding process, resulting in reduced cycle times, lower energy consumption, and minimized material waste. This combination of the Hot Runner Two-plates mold and hot runner system allows us to cater to large-scale production requirements and produce parts with complex geometries, meeting the highest standards of quality and performance. |
...

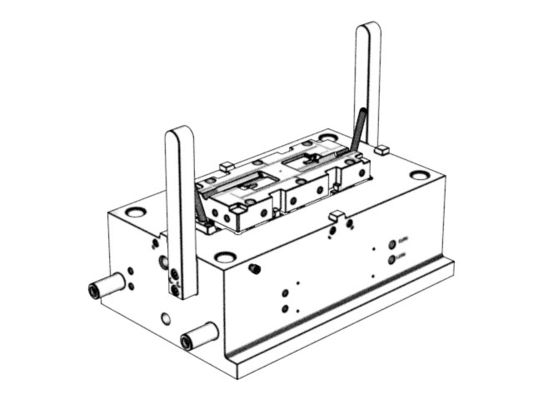

Display diagram
